Doughty 38-51mm Slimline Quick Trigger Hook Clamp
Product No. T58305
*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.
Please note if you order less than €50 worth of Doughty products, your order will be refunded.
Shipping calculator
Payment methods
Product details
Slimline Quick Trigger Hook Clamp - Doughty Engineering

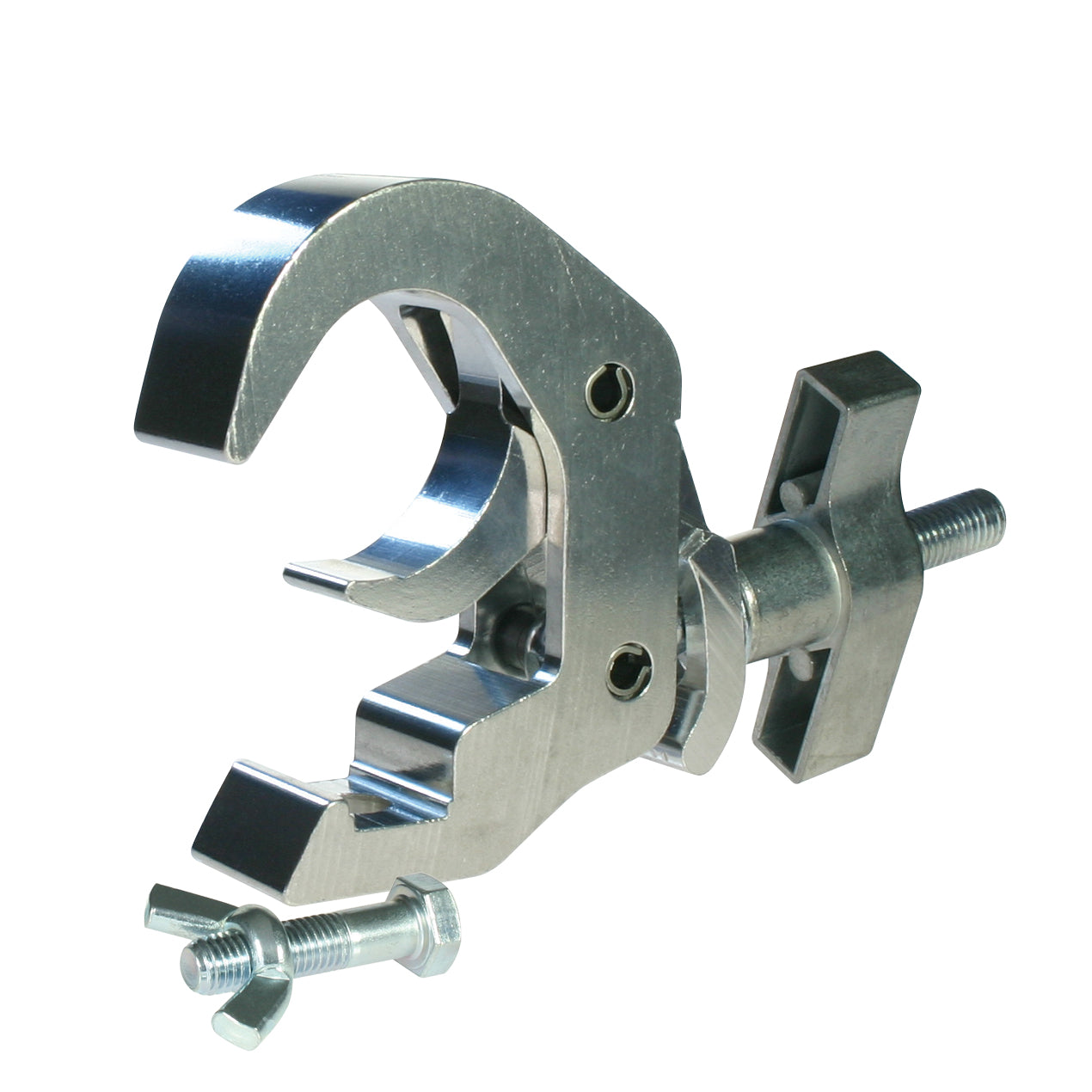

The Slimline Quick Trigger Hook Clamp is manufactured from high tensile Aluminium Extrusion and supplied with a Wing Nut and M12 Bolt Fixing. With a slotted base to captivate an M12 Nut or Bolt it enables users to create fixings suited to their own individual requirements. The 30mm width allows it to be used between truss webs etc.
A large Easy-grip handle is fitted for ease of use. This is an extremely useful clamp for hanging valuable luminaries safely and easily. Broadly used in the theatre, film, TV and photographic industries for attaching round tubes or truss chords and suspending equipment. For any inquiries, please contact us via chat.
Specifications:
- SWL: 100 Kg
- Tube Diameters: 38mm to 51mm
- Width: 30mm
- Fixings: M12 x 45 Bolt & Wing Nut
- Weight: 0.57 Kg
- Material: Aluminum
- Finish: Zinc Plated & Powder Painted
Other Quick Trigger Clamps:
- Without Fixings: 25-38mm, 38-51mm (Standard/ Slimline), 48-80mm
- With Fixings (bolt & wing nut): 38-51mm (Standard/ Slimline), 48-80mm
- With an Eye: 38-51mm (Standard/ Slimline), 48-80mm
- With a Half Connector: 38-51mm
- With a 29mm Receiver: 38-51mm (Standard/ Slimline), 48-80mm
