Doughty Fifty Clamp - TÜV Approved [Multi-Pack]

T58410-5

New Year New Gear 10% off NOW [use code:NEWYEAR10] View All

Qty

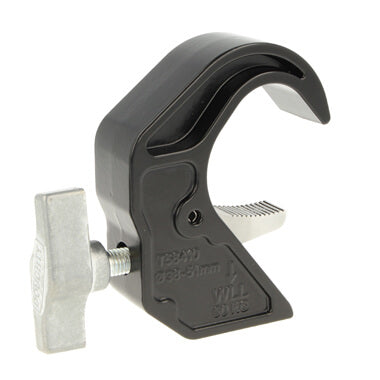

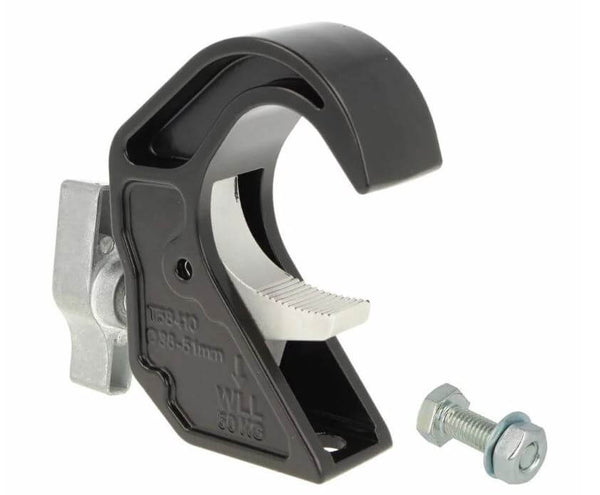

Doughty Fifty Clamp

This Doughty Clamp made its debut at LDI in 2018 after the success of Doughty Twenty Clamp. As the name indicates, Doughty Fifty Clamp is TÜV tested with a safe working load of 50 kg.

''Early indication is that it’s a bit of a game changer. Some of our customers have already told us that the extra 30kg is going to make a big difference.”Mark Chorley, design engineer at Doughty Engineering

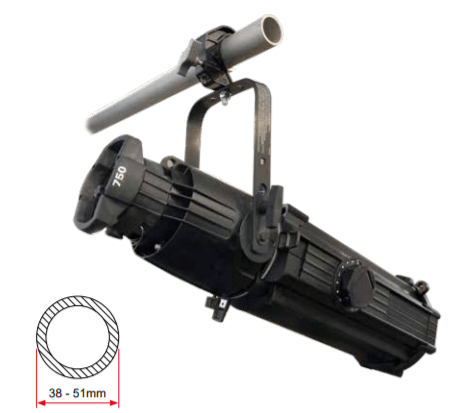

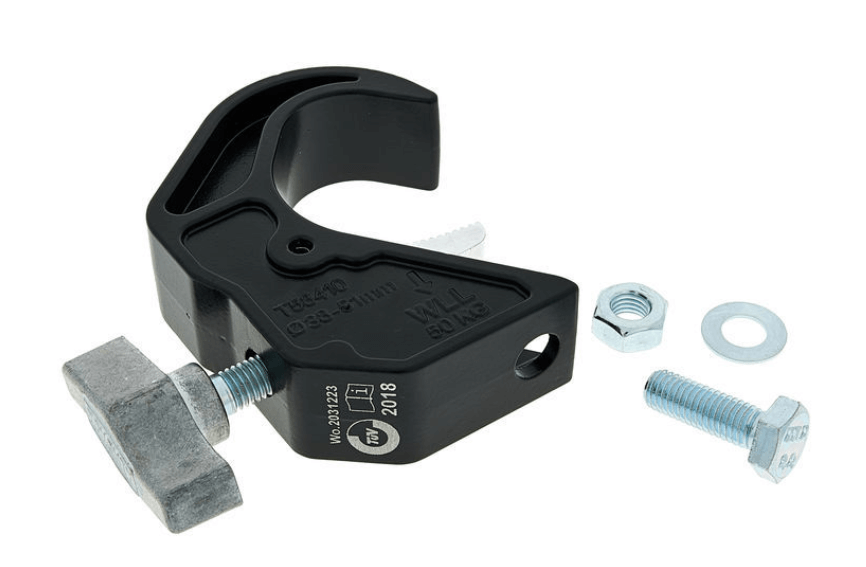

Made from pressure die-cast aluminum, it prevents damage to thin wall truss. It is captive with M10 or M12 bolts to secure luminaires or other equipment. It comes supplied with an M10 fixing kit. The gear can attach to the tube with a diameter ranging from 38mm to 51mm. It has a compatible working height with the Quick Trigger Clamp range.

This stylish and compact Doughty Clamp is fully TÜV approved.

For any inquiries, please contact us via chat.

Press Release: LSA, LSI & ETnow

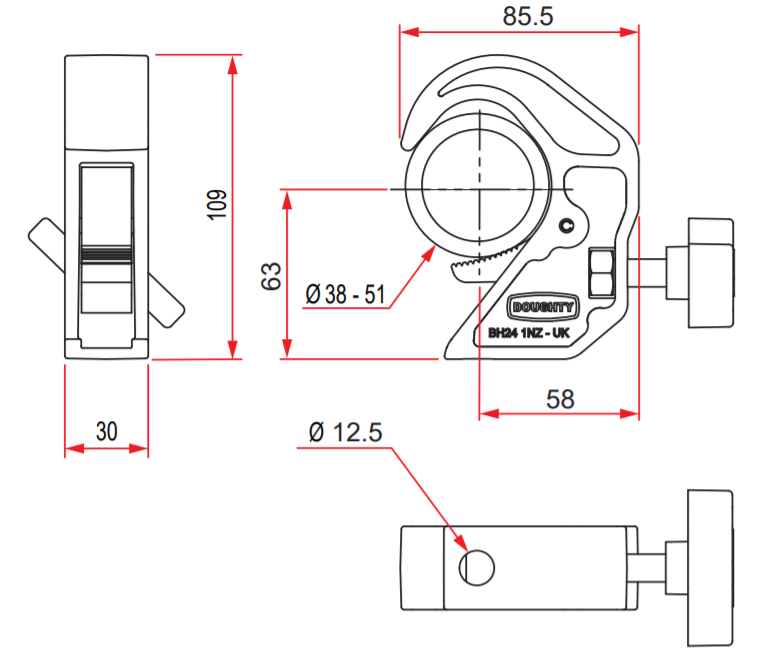

Specifications:

  • Material:
    Body - LM24 Aluminium
    Trigger- AW 6082 T6 Aluminium
    Roll Pins - Stainless Steel
  • Tube Diameter: 38 - 51mm
  • Width: 30mm
  • Overall Height: 110mm

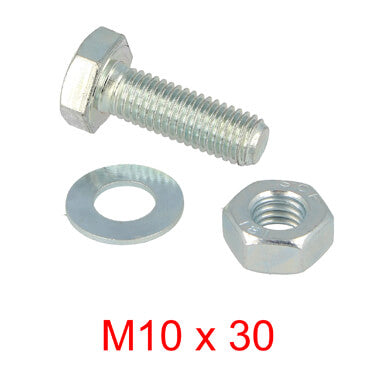

  • Fixing: M10 or M12 Captive Bolt and Nut (M10 supplied)
  • WLL: 50Kg
  • Factor of Safety: 5:1
  • Weight: 0.35Kg
  • Boxed Quantity: 18
  • This product is Design Registered
