Doughty Quick Trigger Clamp 38-51mm (TÜV approval)

Doughty Quick Trigger Clamp T58200

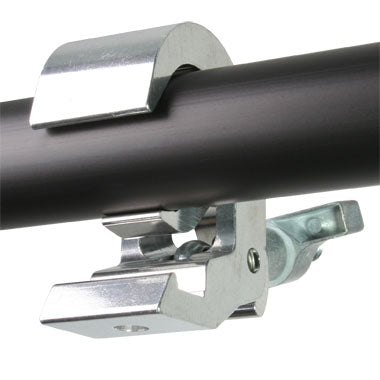

This clamp is the basis of the Doughty Quick Trigger Clamps. Its design gives a high degree of safety by allowing one person to hang and secure heavy luminaires and fixtures on any points of a truss piece without obstruction. The spring-loaded jaws stay open and automatically close with the weight of the object being hung, leaving both hands free to position the load.

The key benefit of Doughty Quick Trigger Clamp over other lighting clamps

Thanks to the location of the lateral screw, this Doughty clamp can support a heavy-duty lantern at any points while other clamps cannot. For example, when rigging a light on a piece of truss, the cross beams of the truss can hinder a clamp from closing. As a result, operators need to move to another position where may not be symmetrically aesthetical. However, this Doughty clamp prevents this problem and the oversized wing nut allows operators to lock the clamp in place easily. It is also perfect for one-person rigging.

The base of the clamp T58200 / T58201 is slotted to hold an M12 bolt head or nut captive. This is an extremely useful clamp for hanging valuable luminaries safely and easily.

Broadly applicable in the theatre, film, TV and photographic industries. For any inquiries, please contact us via chat.

Spec Sheet - User Manual - Cert

Benefits & Specifications:

• One-person operation
• Quick mounting and easy to use to speed up your setup process
• Fixtures like LED PAR and moving head can be hung and secured by the grip at any points on a truss without obstruction for greater flexibility
• Equipped with a large Easy-grip handle for user-friendly operation

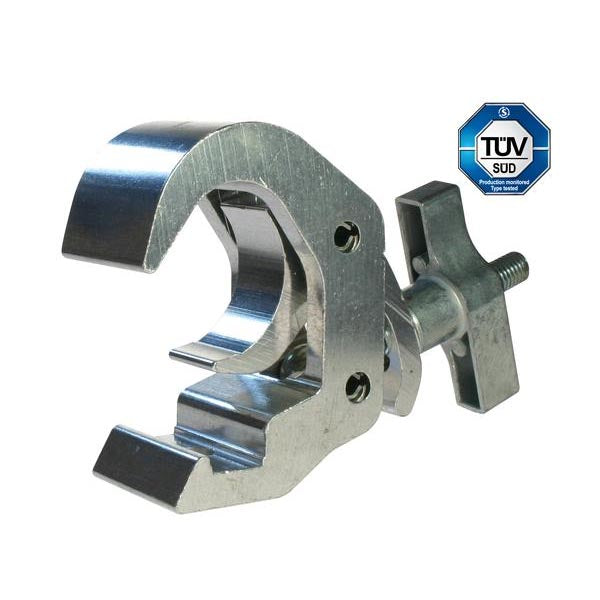

• TÜV approval
• SWL: 250 Kg
• Tube Diameters: 38 to 51mm
• Width: 50mm
• Fixings: M12 Hole
• Weight: 0.76 Kg
• Material: High tensile aluminium

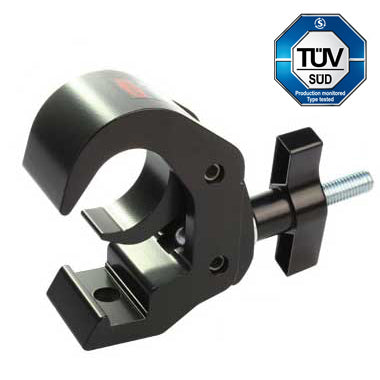

• Finish: Polished Aluminium / Black Powder Coated
