Doughty Parallel Coupler (25mm Atom Clamp)
€21.89incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Firm, fast parallel fixing. Joins two parallel 25 mm diameter tubes or truss chords.
- WLL 100 kg. 5:1 safety factor, TÜV approved, hand tighten only.
- High tensile aluminium extrusion. 21 mm wide with 42 mm tube centres, weight 0.10 kg.

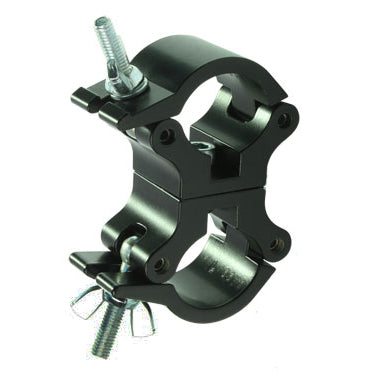

- Two finishes. Silver (T58880) or black (T5888001); swivel and 90 degree fixed versions also available.
Finish:
Aluminum
Accepted payment methods
Please enter correct zip code
shipping
Parallel Coupler - 25mm

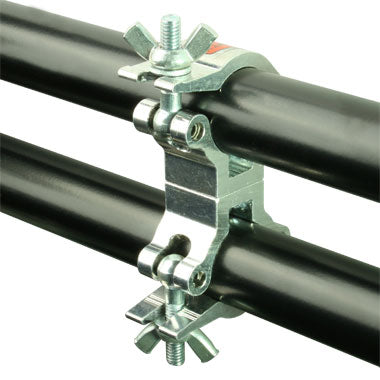

The Atom Parallel Coupler provides a firm and fast fixing between two parallel bars, designed to fit 25mm diameter tube. It is manufactured from high tensile Aluminium Extrusion. The coupler is specifically designed to attach to round tubes or truss chords and suspend equipment and luminaires. Broadly applicable in the theatre, film, TV and photographic industries. Also, Swivel and 90 degree fixed versions are available. For any inquiries, please contact us via chat.
Spec Sheet for parallel coupler range
Features:
- SWL: 100kg
- Width: 21mm
- Tube Diameter: 25mm
- Tube Centres: 42mm
- Weight: 0.10kg
- Safety Factor: 5:1
- Tightening: Hand tighten only
- TÜV approved
- More sizes available to fit various diameter tubes
- Available in silver (T58880) and black (T5888001)
