Doughty Flat Flag Frames/Gel Frames (Aluminum)

Doughty Engineering |
SKU: G3015
€81.64incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Versatile Lighting Control. Attach gel or diffusion materials for precise control of angle, height, intensity, and light position on set

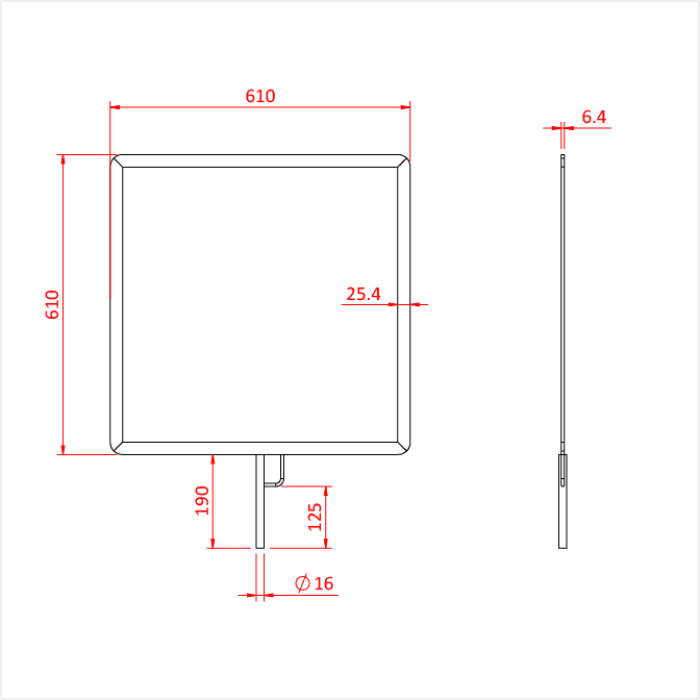

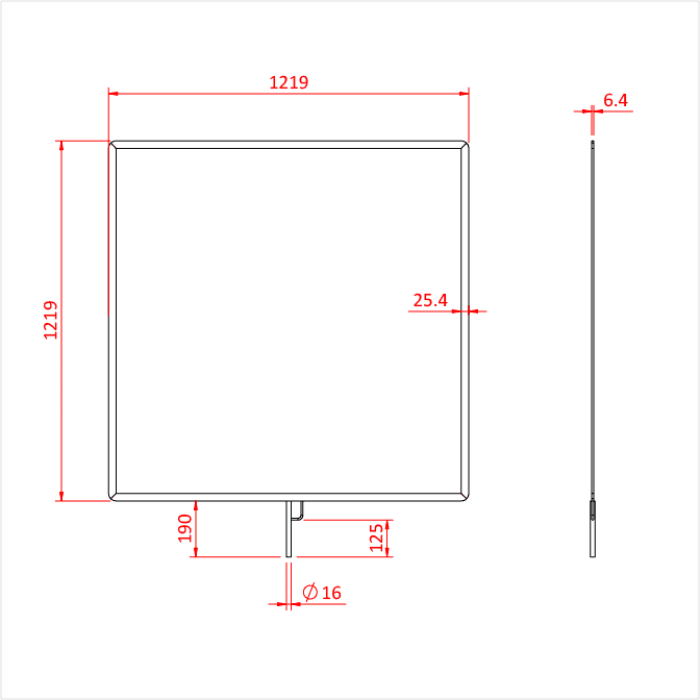

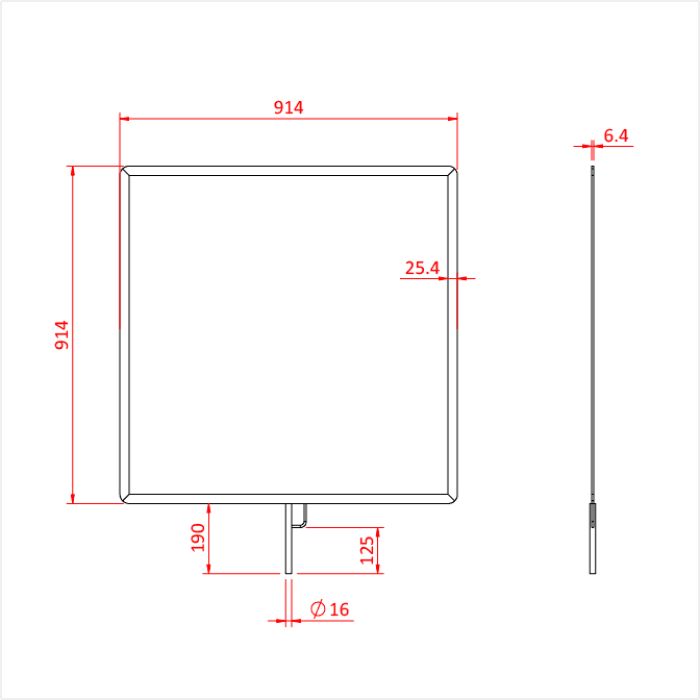

  • 3 Sizes Available. 24"x24" (G3015), 36"x36" (G3016), and 48"x48" (G3018), lightweight AW6082 aluminium flag frame for any production
  • Easy Gel & Diffusion Taping. Flat bar construction provides a larger surface area, swap coloured gels and diffusion in seconds
  • Standard Grip Head Compatible. 16mm diameter spigot pin fits directly into any standard grip head, British designed and manufactured
View Full Description Technical Data
Gel Frame Sizes: 24" x 24"

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Please select country
Please enter correct zip code

shipping

Test heading

Doughty Flat Flag Frames / Gel Frames (Aluminium)

Doughty's Flat Flag Frames, also known as gel or diffusion frames, are lightweight aluminium squares designed for attaching gel or diffusion to control the angle, height, intensity, or position of a light source. Manufactured from flat bar with a larger surface area, they're built for quick, repeated application of two-sided tape when swapping coloured gels on set.

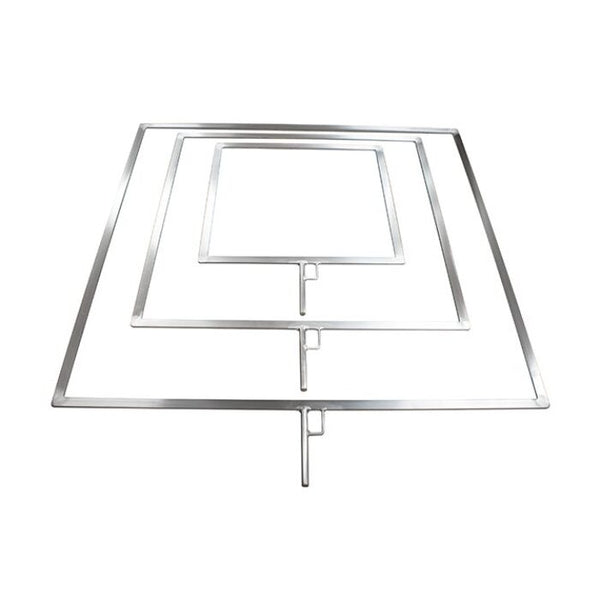

Available in three sizes, 24"x24", 36"x36", and 48"x48", each fitted with a 16mm mounting pin for use in a griphead.

Key Features

  • Three sizes: 24"x24" (1kg), 36"x36" (1.29kg), 48"x48" (1.69kg)
  • Flat bar aluminium construction with a larger surface area for tape application
  • 16mm mounting pin fits a standard griphead
  • Silver finish, AW6082 aluminium

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Which size Doughty Flag Frame do I need for gel or diffusion work?
It depends on your light source's beam spread and how much coverage you need. The 24"x24" suits smaller fixtures and tighter control, while the 36"x36" and 48"x48" give more surface area for larger lights or when covering a wider spread.
Why do Doughty Flag Frames use flat bar instead of tube for the frame edges?
The flat profile gives a larger surface area for two-sided tape, making it faster to apply and swap different coloured gels or diffusion material compared to a rounded tube edge.
What griphead do I need to mount a Doughty Flag Frame?
Any griphead that accepts a 16mm pin, which is the standard mounting size fitted to all three Doughty Flag Frame sizes.
