Doughty Wall Brackets for Concerts & Stages [Multi-Pack]

Wall Brackets - Doughty Engineering

Steel bracketry designed primarily to be wall mounted, allowing fixtures and tubes to be suspended from a vertical surface. The brackets are widely used for venues, concerts, and stages.

A choice of two wall brackets with mounting holes.

The light-duty bracket is drilled to accept a 48mm 'U' bolt (T56600). The heavy-duty bracket is drilled and slotted to accept a Saddle Clamp(T30800). For any inquiries, please contact us via chat.

Specifications:

• Dimensions & SWL & Weight:
  Wall Bracket (Light-Duty): 300mm x 405mm & 3 Kg & 0.85 Kg
  Wall Bracket (Heavy-Duty): 325mm x 325mm & 20 Kg & 2.6 Kg

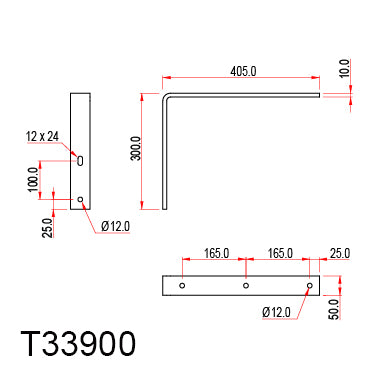

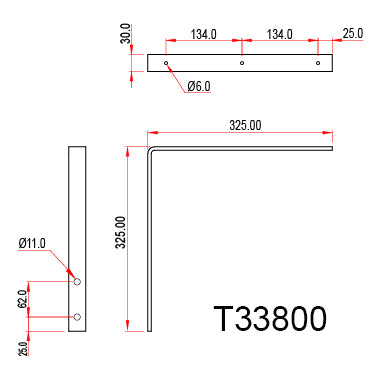

• Fixing Holes: See the images
