Doughty Quick Trigger Clamp 38-51mm Slimline with Receiver

T58340

Collections: All Products, Doughty Clamp, Doughty Engineering- Rigging, Lifting & Suspension Gear, Rigging Hardware

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

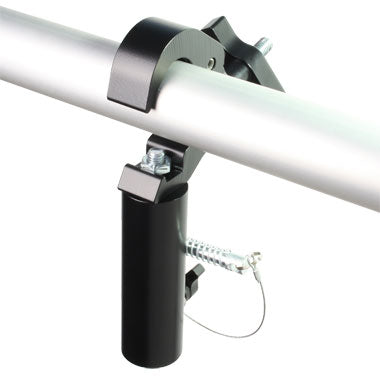

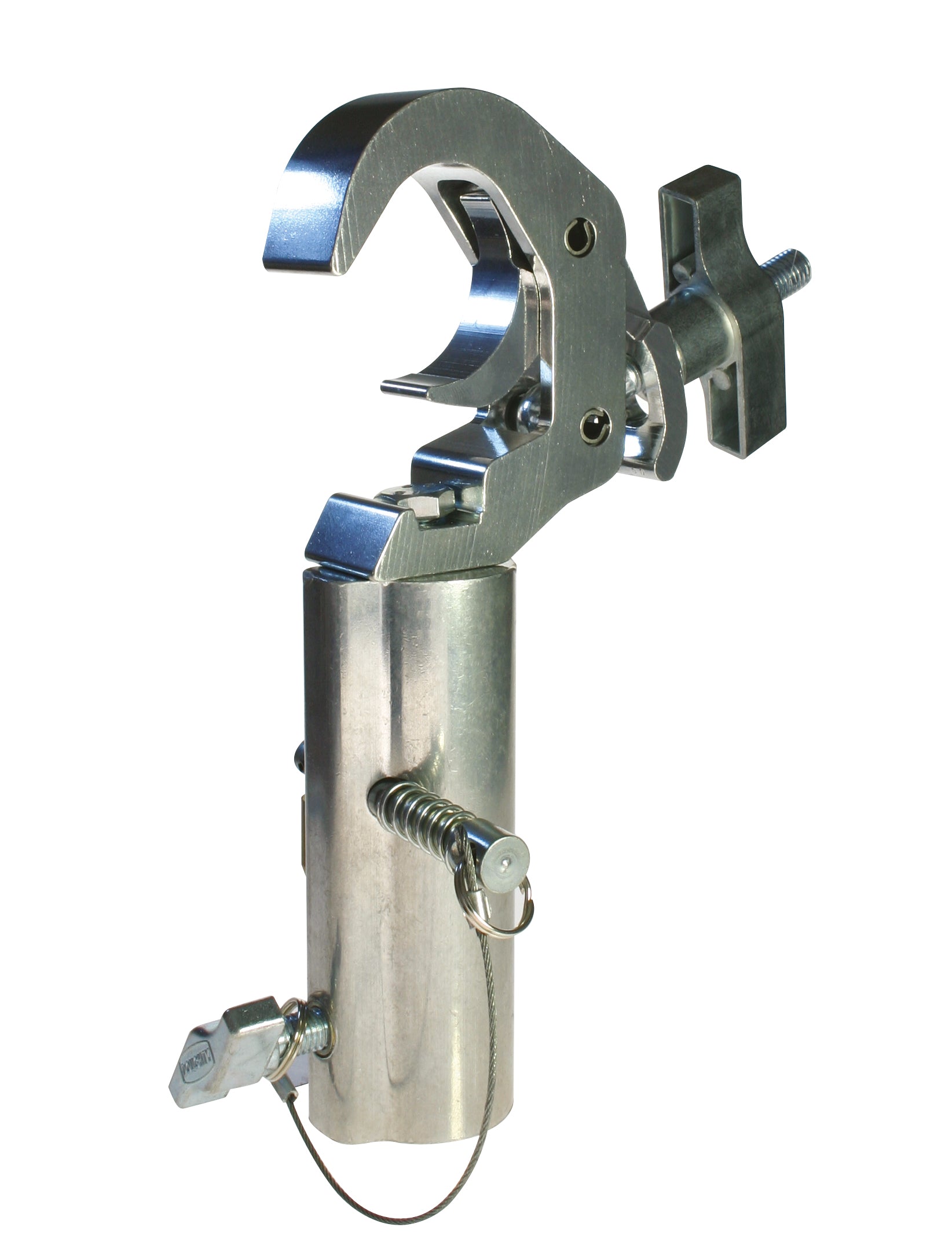

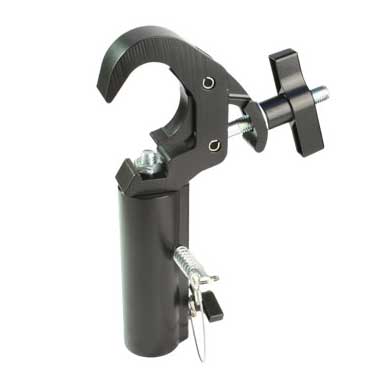

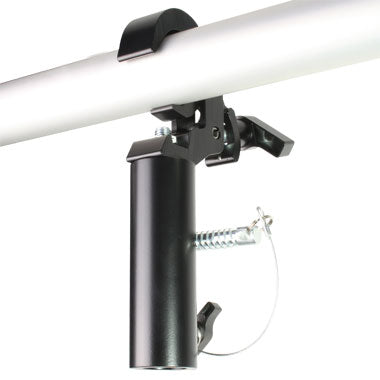

Slimline Quick Trigger TV Clamp - Doughty Engineering

The Slimline Quick Trigger TV Clamp is manufactured from high tensile Aluminium Extrusion and supplied fitted with a 29mm diameter Receiver. It is designed predominantly for use in the TV and Film industries for attaching round tubes or truss chords and suspending equipment.

A large Easygrip handle is fitted for easy handling. For any inquiries, please contact us via chat.

Spec Sheet - User Manual - Cert

Specifications:

SWL: 100 Kg
Tube Diameters: 38mm to 51mm
Width: 30mm
Fixings: 29mm receiver
Weight: 0.62 Kg
Material: Aluminum
Finish: Polished & Powder Painted Black

Other Quick Trigger Clamps:

Without Fixings: 25-38mm, 38-51mm (Standard/ Slimline), 48-80mm
With Fixings (bolt & wing nut): 38-51mm (Standard/ Slimline), 48-80mm
With an Eye: 38-51mm (Standard/ Slimline), 48-80mm
With a Half Connector: 38-51mm
With a 29mm Receiver: 38-51mm (Standard/ Slimline), 48-80mm
