Doughty Super Lightweight to Atom Swivel Coupler 38mm / 48-51mm
€55.60incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Two tube sizes. Super Lightweight clamp for 48-51 mm tube and Atom clamp for 38 mm tube, back to back.
- 360 degrees of movement. Firm fixing between adjacent bars while allowing full rotation.
- WLL 100 kg. 5:1 safety factor, TÜV approved, hand-tight only.
- Lightweight aluminium. AW6082 T6 aluminium, satin black, weight 0.29 kg.
Accepted payment methods
Please enter correct zip code
shipping

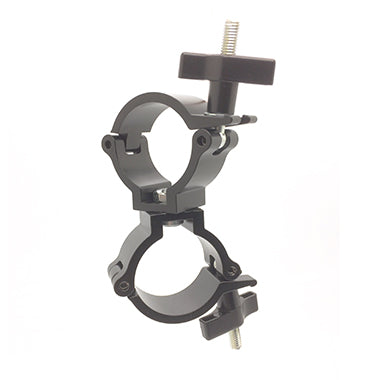

Super Lightweight to Atom Swivel Coupler - Doughty Engineering
The Super Lightweight to Atom Swivel Coupler is a pair of high tensile extruded aluminium clamps mounted back to back and designed to swivel: a Super Lightweight clamp for 48-51mm tubes on one side and a 38mm Atom clamp on the other. It provides a firm fixing between adjacent bars of different diameters whilst allowing 360 degrees of movement.
Manufactured from high tensile Aluminium Extrusion, they are perfect for the theatre, film, TV and photographic industries.
This listing is the powder painted satin black version (T5813501); a polished version (T58135) is also manufactured.
For any inquiries, please contact us via chat.
Specifications:
- Material: AW6082 T6 aluminium, stainless steel roll pins, grade 8.8 eyebolt
- Finish: Powder painted satin black
- WLL: 100 Kg
- Safety Factor: 5:1
- Tube Diameters: 48mm to 51mm and 38mm
- Weight: 0.29kg
- Tightening: Hand-tight only
- TÜV approved
