Yale Handy Ratchet Lever Hoist 250/500 KG
Product No. N02300018-1.5
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Shipping calculator
Payment methods
Product details

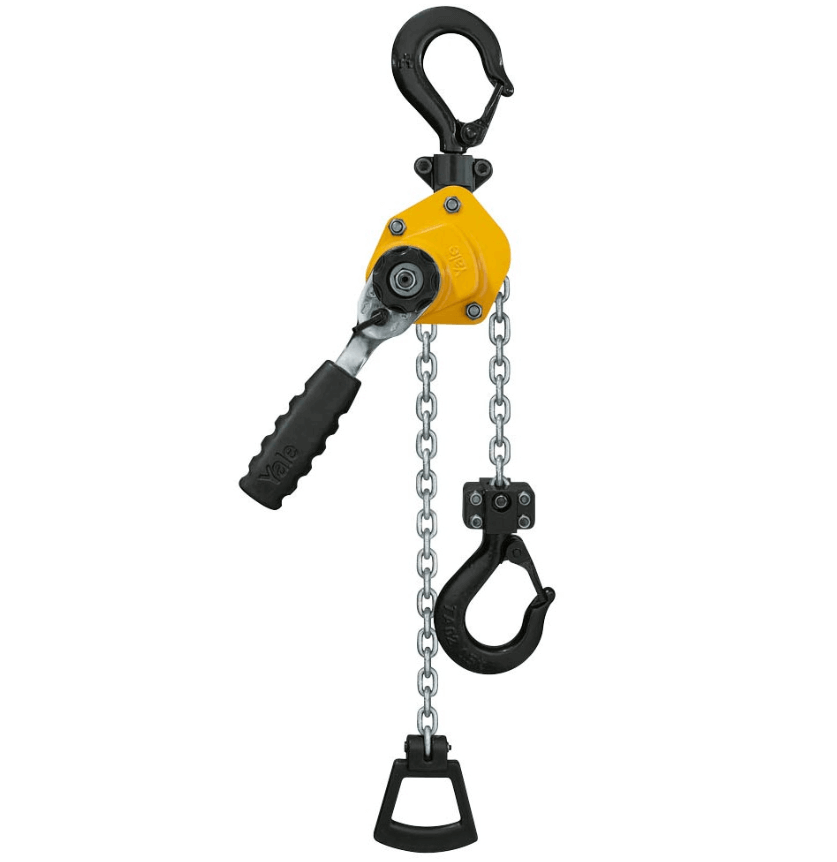

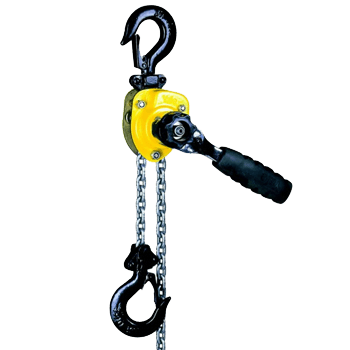

[EN] Yale Handy Ratchet Lever Hoist with 360° Swivel Hooks & Safety Features
Now, you can lift/pull your load professionally with the Yale Handy - the smallest, lightest yet robust in the Yale range without compromising safety and quality.
Yale Handy is extremely low tare weight and the very compact design make it easy to use even in confined working conditions. Due to the multitude of application possibilities e.g. in industry, trade, and service this ratchet lever hoist is indispensable.
We supply Yale Handy 500 kg and 250 kg lever hoist options with lifts ranging from 1.5m to 18m. For custom lifts, please contact us via chat.
Datasheet - Operating Instructions - Manual Hoist Guide(Lever Hoist vs Chain Hoist)

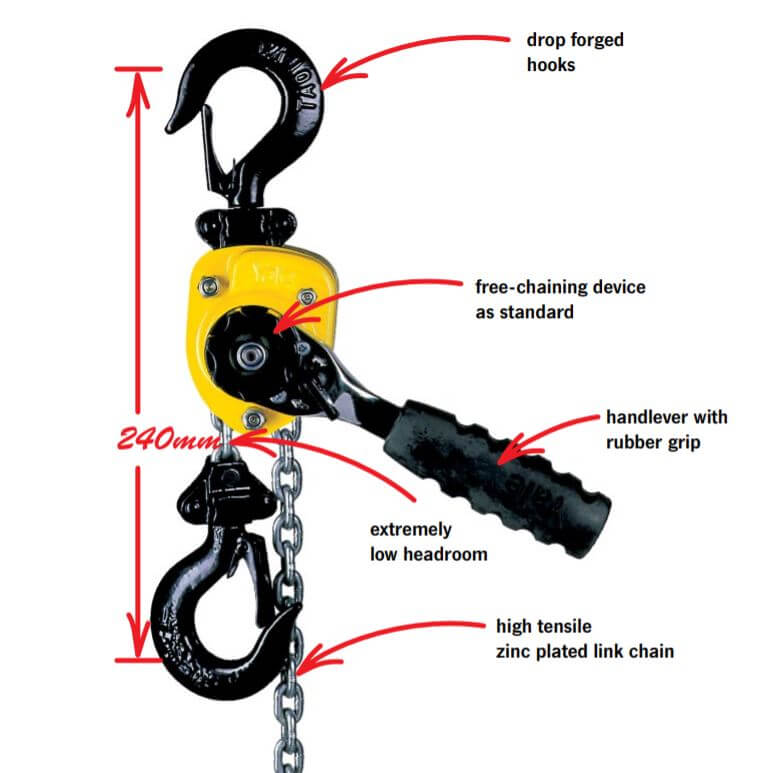

FEATURES & BENEFITS
Ultra-small & lightweight with extremely low headroom
For ease of portability and great for use in tight workspaces with one-hand operation

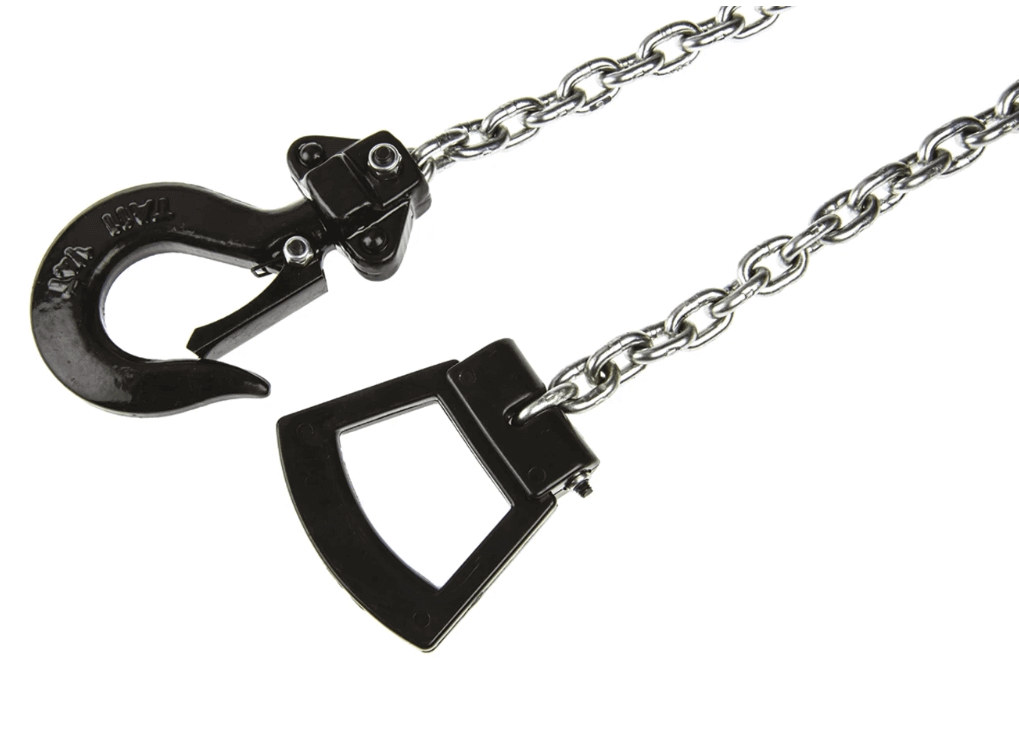

Drop forged suspension(top) & load (bottom) swivel hooks
- 360° rotation allows smooth operation at any angle without chain twisting
- Made from non-ageing, high tensile steel for great durability
- Fitted with robust safety latches for extra safe load attachment
The enclosed design
- Protects the internal parts from contamination.
- Manufactured from high-quality materials and are corrosion protected, ensuring a long lifetime.

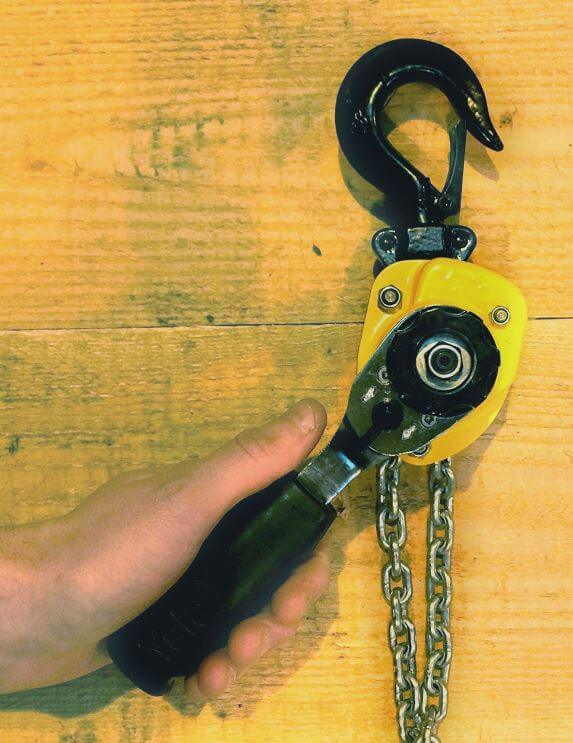

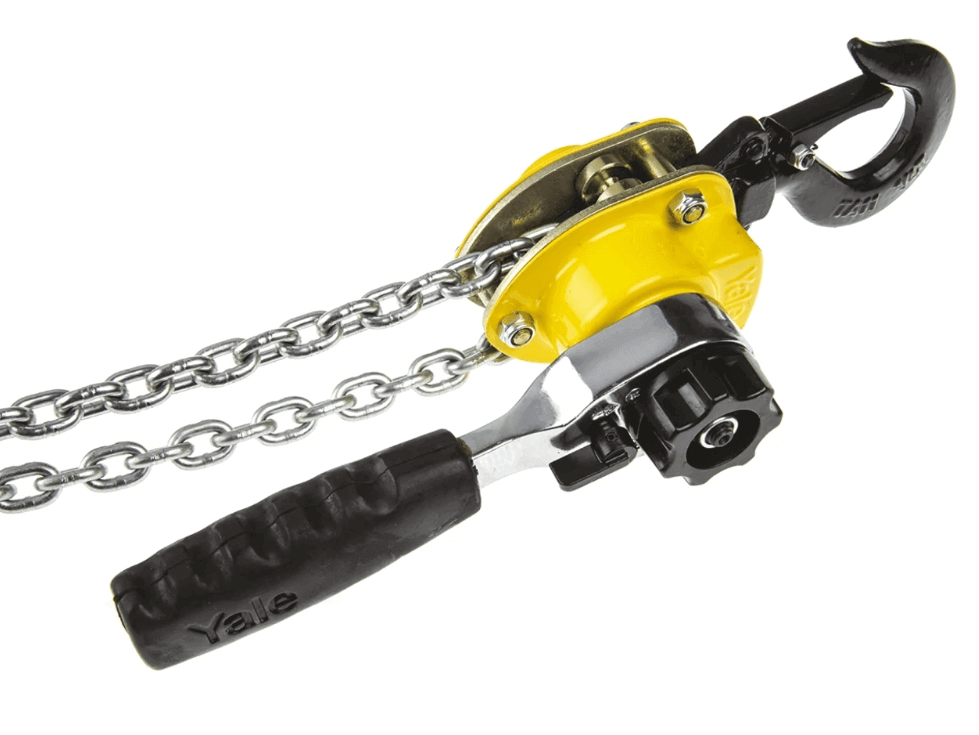

Shorthand lever
Fitted with an ergonomic rubber grip for comfort and security
Standard free chaining device
Quickly attach the load or to pull the chain through the hoist in both directions to the desired height.
Alloyed steel link chain
Alloyed steel link chain with zinc-plated resp. yellow chromate finish, in accordance with national and international standards and regulations.
SPECIFICATIONS

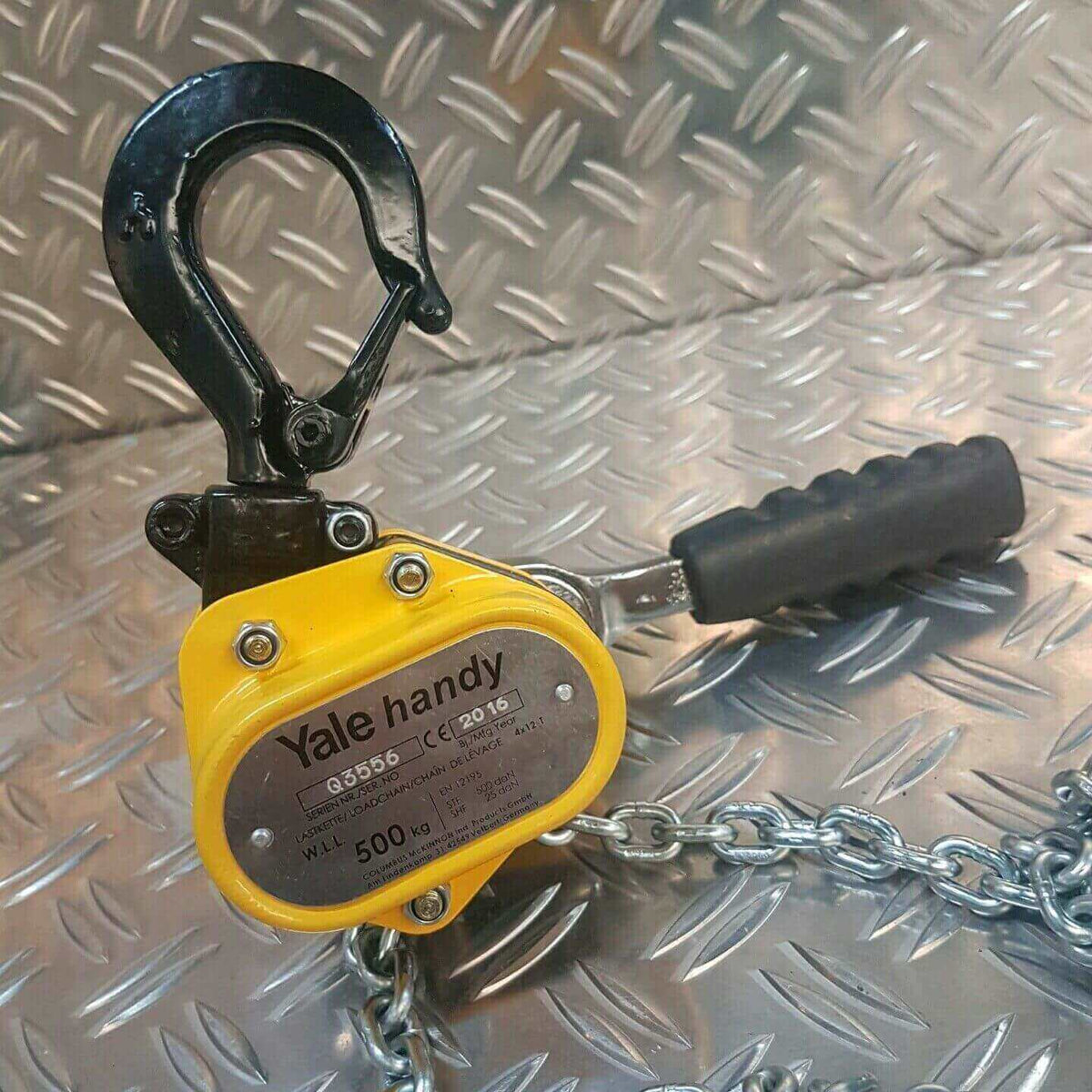

- Capacity: 250kg and 500kg
- Height of lift (H.O.L): 1.5m, 3m, 6m, 9m, 12m, 15m, 18m
- Number of Chain Fall: 1
- Handle Pull: 25 daN
- Chain Dimensions (d x p): 4 x 12mm
- Length of Lever/Handle: 160mm
- Headroom: 240mm(Yale Handy 250) & 282mm(Yale Handy 500)
- Hook Opening: 21mm(Yale Handy 250) & 24mm(Yale Handy 500)
- EC Declaration of Conformity 98/37/EEC (Appendix II A)
MORE ABOUT YALE HANDY LEVER HOISTS:
- What is a lever hoist? Also known as lever blocks and come alongs, lever hoists are portable devices and can be used for vertical and horizontal movements without power supply. They are operated by the lever/handle with one hand. Commonly used for lifting, pulling, dragging and positioning loads, the manual device is used across industries.
-
Items you often need to operate a lever hoist:
- Suspension: It can be suspended in a fixed location with a Beam Clamp or from a Push Trolley/Geared Trolley with its top hook.
- Load Attachment: The lower hook can directly attach a load but quite commonly a lifting sling is used (in conjunction with shackles sometimes)
- Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
[FR] Palan Yale Handy 250 & 500 KG
Le plus petit et le plus léger palan Yale destiné aux professionnels. Idéal pour les travaux de redressage, en métallerie, artisanat, SAV et pour les efforts importants dans des endroits exigus. Système de roue libre en série permettant une approche rapide du crochet de la charge. Levier avec poignée caoutchouc ergonomique. Pièces zinguées traitées anticorrosion. Course de levage standard : 1,5 mDonnées Techniques - Mode d’emploi
- Parfait pour une utilisation professionnelle dans la gamme à faible charge
- Petites, légères
- une chaîne en acier (galvanisé), de haute résistance
- Avec l'enchaînement libre
- Short, poignée ergonomique avec revêtement en caoutchouc
[DE] Handhebelzug Yalehandy 250 & 500 KG
Dieser Hebelzug aus Stahlblech ist das kleinste und leichteste Allzweckgerat für den professionellen Einsatz im Kleinlastbereich. Durch die vielfaltigen Einsatzmöglichkeiten z. B. in der Industrie, im Handwerk und im Servicebereich ist dieser Handhebelzug unentbehrlich.Technische Daten - Betriebsanleitung - Info
- Die gekapselte Konstruktion schützt die innenliegenden Bauteile vor Staub und Feuchtigkeit.
- Der kurze und ergonomisch geformte Handhebel mit Gummigriff ermöglicht eine einfache Bedienung des Geräts.
- Alle Bauteile der Lastdruckbremse sind aus hochwertigem Material gefertigt und mit einem Korrosionsschutz versehen.
- Leichtgängige Kettenfreischaltung zum schnellen Anschlagen der Last bzw. Durchziehen der Lastkette in beide Richtungen.
- Verzinkte Rundstahlkette entsprechend allen gültigen nationalen und internationalen Vorschriften.
- Geschmiedete Trag- und Lasthaken aus alterungsbeständigem hochlegiertem Vergütungsstahl, die sich bei Überlastung öffnen ohne zu brechen.
[ES] Polipasto Manual De Palanca Yale Handy
Es el modelo más pequeño y liviano dentro de la gama Yale®. Su diseño encapsulado y carcasa de acero lo protegen del polvo y la suciedad. Es recomendado para el uso profesional con cargas relativamente ligeras. Ofrece capacidades de 250 Kg y 500 Kg.Datos técnicos - Instrucciones de Servicio
- Capacidades de carga de 250kg y 500kg.
- Procedencia Alemana.
- Ligero, pequeño u de diseño compacto, es fácil de usar espacios de trabajo reducidos
- Diseño encapsulado que protege el interior del polvo u la humedad .
- Piezas del freno fabricadas en materiales de alta calidad resistentes a la corrosión.
- Ganchos de suspensión u carga de acero de alta resistencia.
