Doughty Boom Arms with Brace

Product No. T57325

*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.

Please note if you order less than €50 worth of Doughty products, your order will be refunded.

Regular price €159.89 excl. €36.77 VAT €196.66 incl. €36.77 VAT
Unit price  per
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
Product details

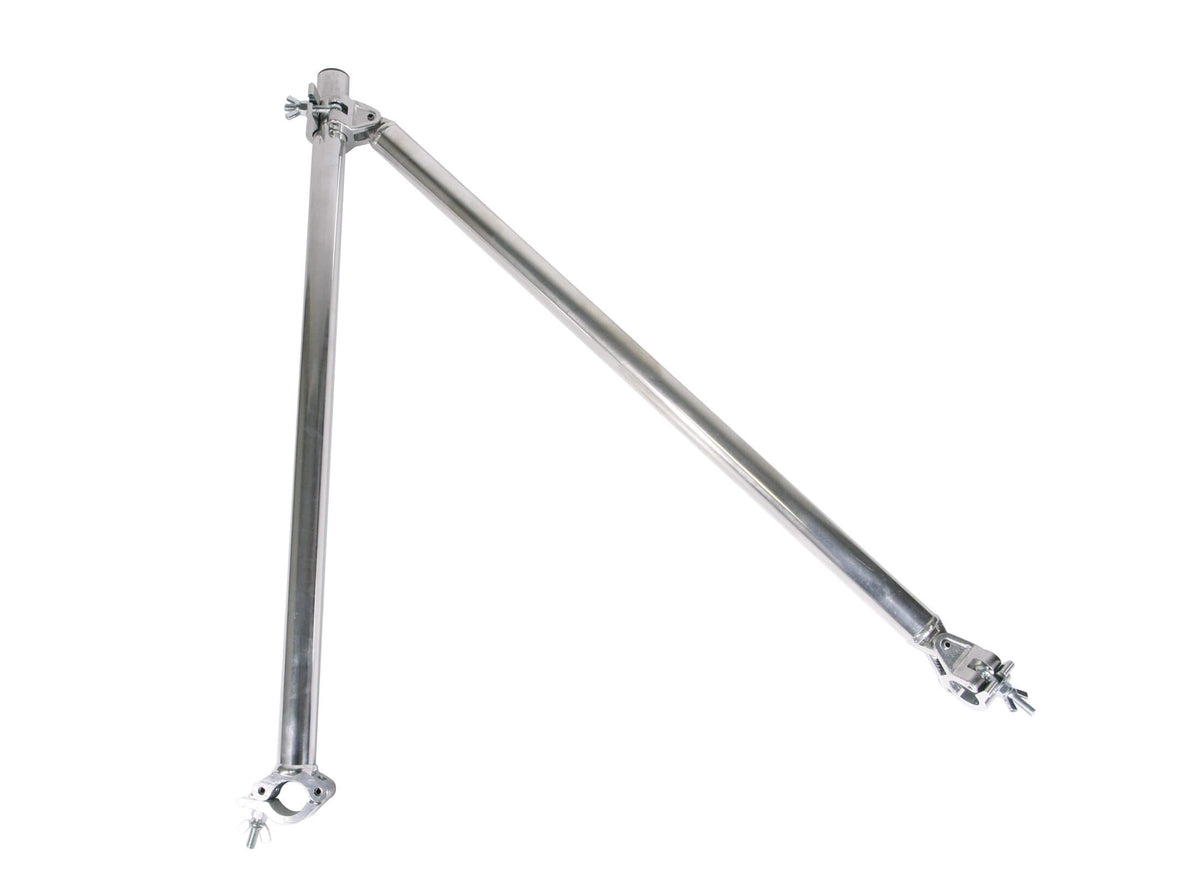

Doughty Boom Arms with Brace

It is a 48mm diameter boom arm with a brace and welded half coupler for tubes with a diameter of 48-51 mm.

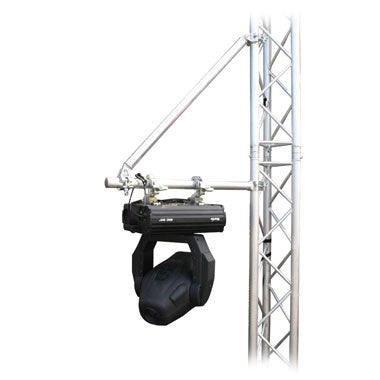

This truss boom arm is ideal for flying heavy luminaries such as moving heads from 48-51mm diameter vertical bars or trusses. By connecting a vertical bar/truss and the horizontal boom arm diagonally, the brace can eliminate movement or flexing in the boom arm.

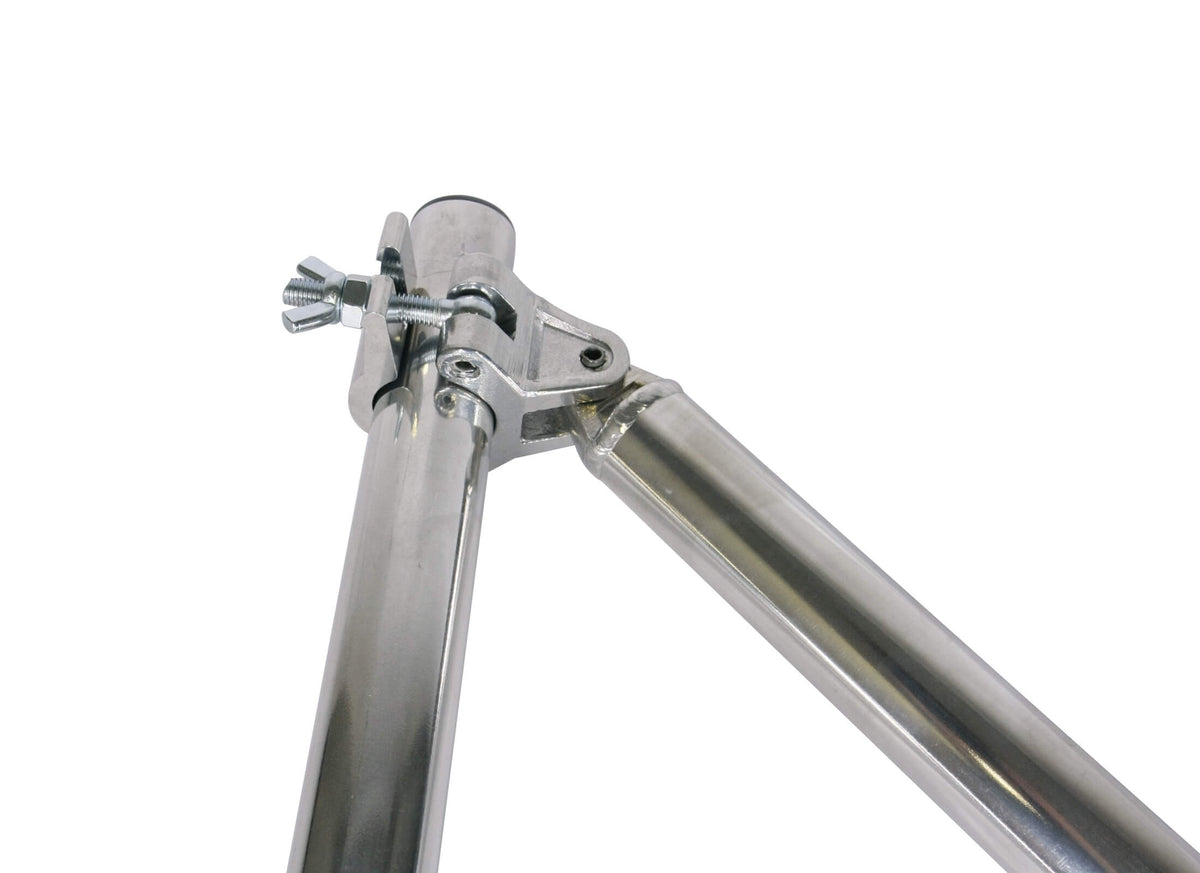

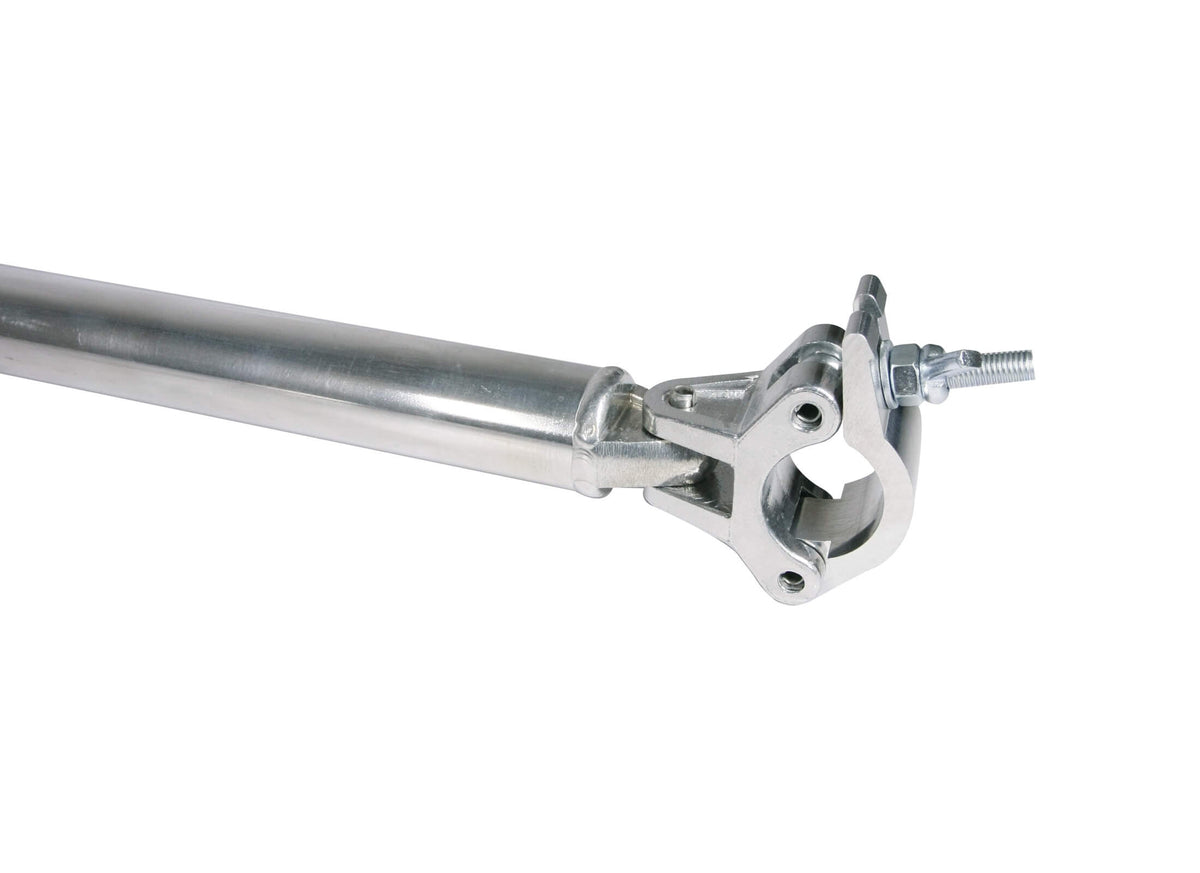

Manufactured with two articulated joints, most mounting situations can be accommodated.

Please also view our heavy-duty boom arm that offers a lighting solution without a brace. For any inquiries, please contact us via chat.

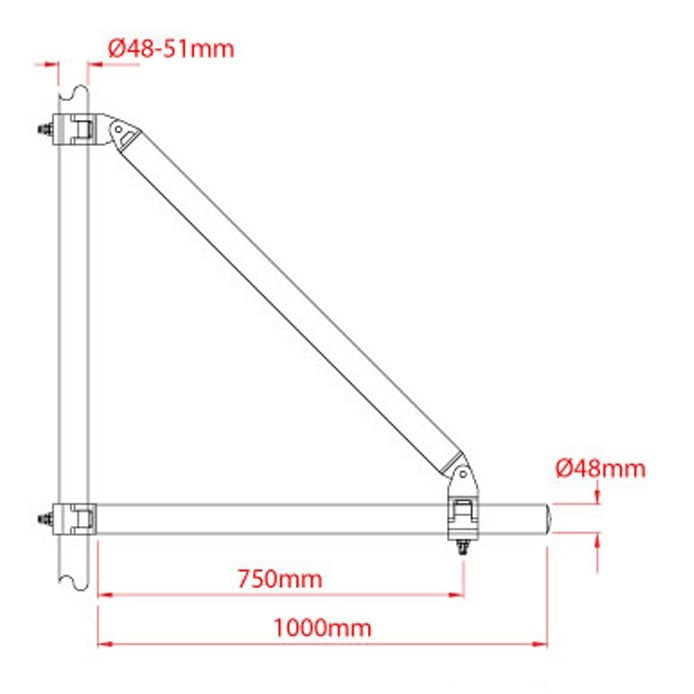

Features and Specifications:

  • SWL: 100kg
  • Weight: 5.0kg
  • Overall Length: 1000mm
  • Usable length of the boom arm: 750 mm
  • Diameter of Boom Arm: 48mm
  • Diameter bars/trusses: 48 - 51mm
  • High tensile aluminum
  • Available in both natural aluminum and black
