Doughty Scaffold Double Coupler
€16.76incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Joins tubes at 90 degrees. Quickly create grids, frames and towers for lighting or scenery.
- Fits 48.3 mm tube. For steel or aluminium tube.
- Two material options. Pressed steel zinc plated or drop forged steel galvanised.
- Not load rated. Not recommended for permanent installations; max. tightening torque 50 Nm.
Material:
Drop Forged Steel
Accepted payment methods
Please enter correct zip code
shipping

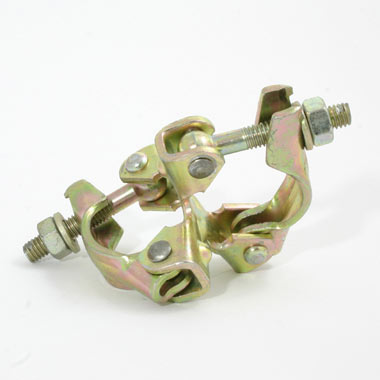

Scaffold Double Coupler
This scaffold double coupler fits 48.3 mm diameter steel or aluminium tube. Designed to join two tubes at 90 degrees to each other, it is useful for quickly creating grids, frames, and towers for lighting or scenery from standard tubes.
Two material options are available: pressed steel (T24900) and drop forged steel (T24901).
The Doughty Scaffold Clamps are not load rated and are not recommended for permanent installations. For any inquiries, please contact us via chat.
Specifications:
- Tube Diameter: 48.3 mm
- Material: Pressed steel / drop forged steel
- Finish: Zinc plated, colour may vary (pressed steel) / galvanised (drop forged steel)
- Weight: 1.02 kg (pressed steel) / 1.12 kg (drop forged steel)
- Max. Tightening Torque: 50 Nm
- WLL: Not load rated
To learn more about Scaffold Clamp Types, please visit the Doughty collection.
