Camlok Vertical Plate Clamps CY 100-3000Kg with Hinged Hook Ring

CY-1

€257.00 Excl. VAT Shop in GBP (£)

Capacity

100-1000KG

200-2000KG

300-3000KG

Qty

Category: Material Handling

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

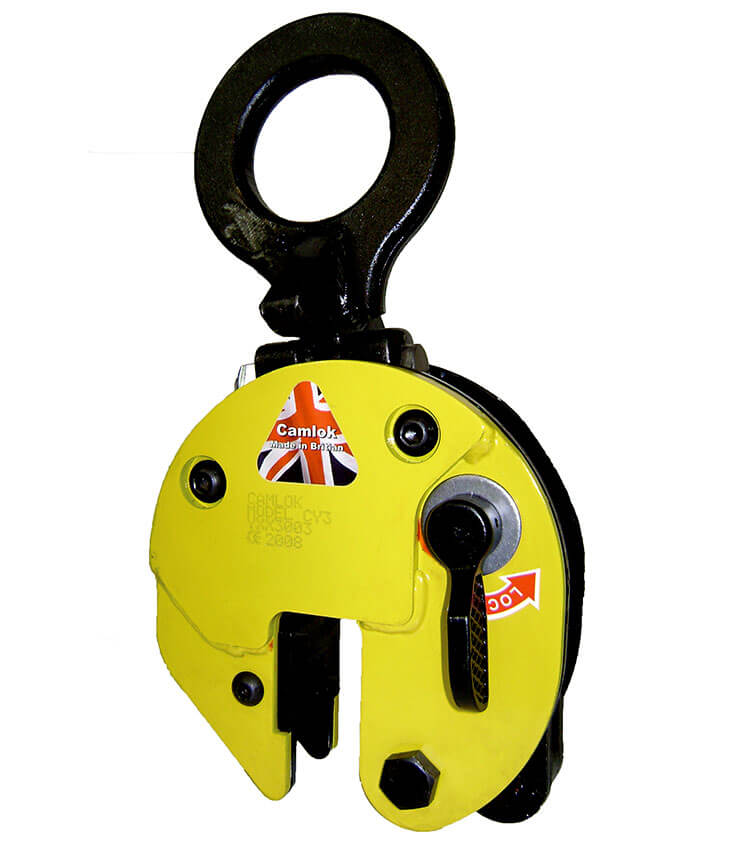

Camlok Vertical Plate Clamps

Lifting Clamps are one of the most important pieces of equipment in many lifting and material handling operations. No matter if it is in the manufacturing or construction process, lifting clamps serve a critical function such as lifting and moving a flat plate, rolled stock and beams.

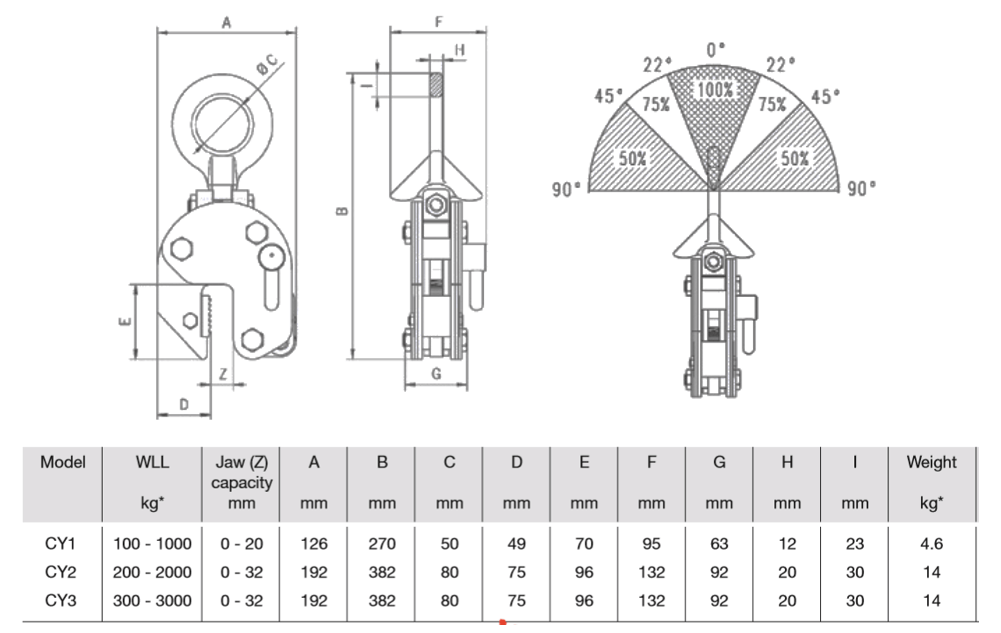

The Camlok Vertical Plate Clamps with hinged hook rings can be used for the safe handling of the plate at various angles. It can lift plate from the horizontal and put it down in the vertical. The hinged hook ring ensures adequate gripping pressure in every position, but the load capacity reduces. See the diagram below showing the load/force capacities.

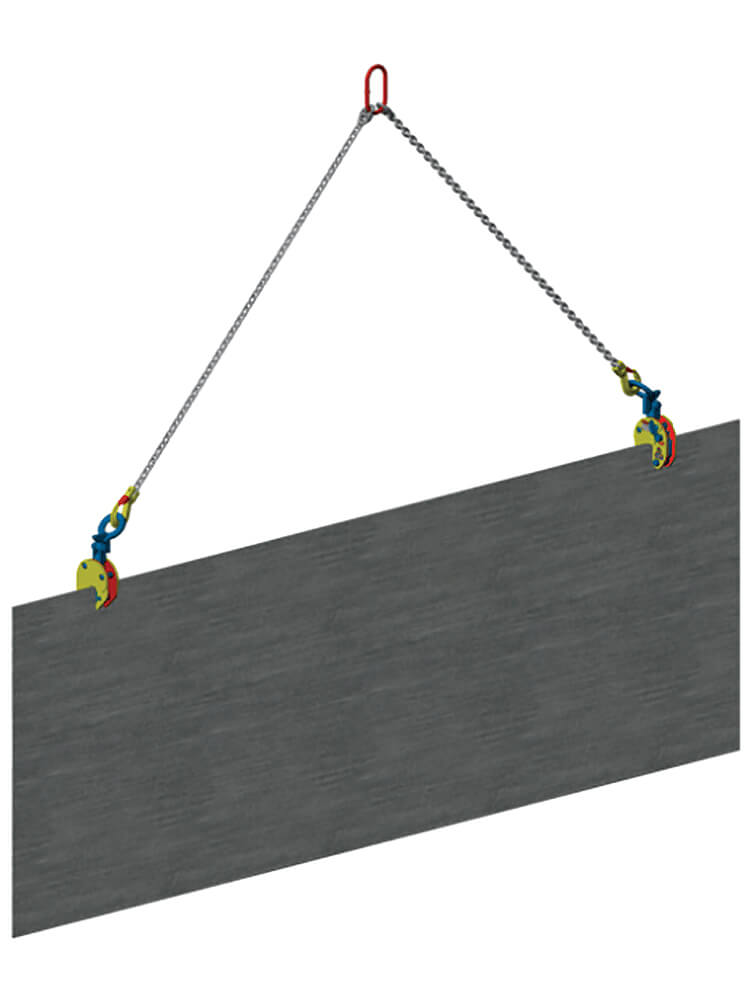

The main benefit of the CY hinged plate clamps is that longer plates can be lifted or handled, using two clamps on a two-legged chain sling (as shown in illustration), thus eliminating the need for a spreader beam.

Fast & International Delivery now! For any inquiries, please contact us via Chat.

Plate Clamp Safety

SPECIFICATIONS

Capacity: 100kg - 3000kg
Weight: 4.6kg - 14kg
Jaw capacity: 32mm Max.
Hardness level of the plate surface: below HRC 30/Brinell 300
For more details, please refer to the technical datasheet

Applications of Vertical Plate Clamps:

Wind Power Energy
Offshore
Ship & Yacht Construction
Tank & Vessel Construction
Construction
