Doughty Baby Quick Trigger Clamp 25-38mm
Product No. T58150
*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.
Please note if you order less than €50 worth of Doughty products, your order will be refunded.
Shipping calculator
Payment methods
Product details

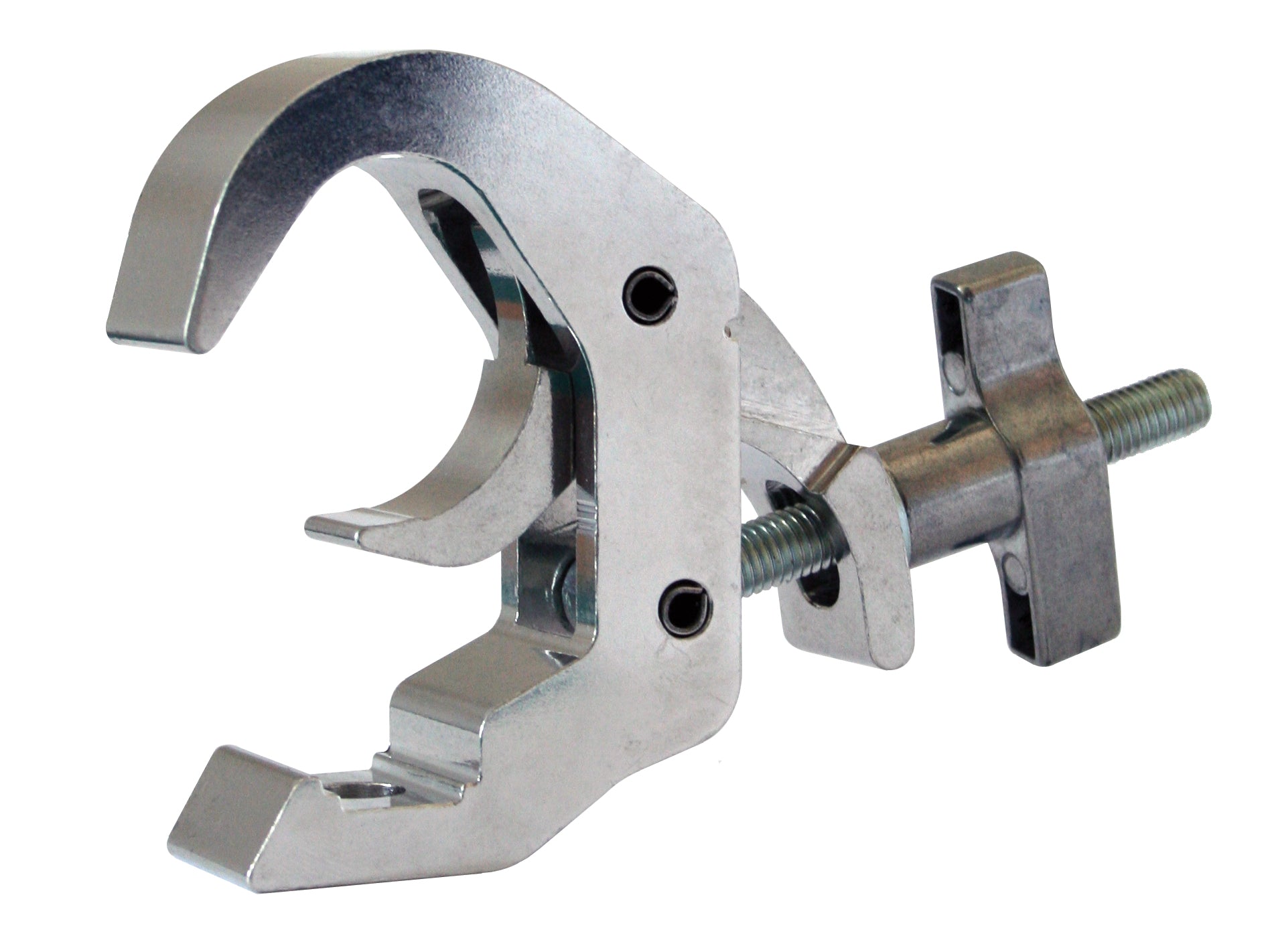

Doughty Quick Trigger Clamp
The Baby Quick Trigger Clamp is the latest addition to Doughty range of Quick Trigger Clamps. Manufactured from high tensile aluminium. Specifically designed to work with a smaller tube or truss with a diameter from 25mm to 38mm.
The main benefit of this range of lighting clamps is that the fixture can be hung on any points of the truss without obstruction thanks to the location of the lateral screw. For example, when rigging a light on a piece of truss, the cross beams of the truss can hinder a clamp from closing. As a result, operators need to move to another position where may not be symmetrically aesthetical. However, this Doughty clamp prevents this problem and the oversized wing nut allows operators to lock the clamp in place easily. It is also perfect for one- person rigging.
Quick Trigger Clamp Demonstration - A Light Hung Next to Cross Beams Without Obstruction
This truss clamp can be used with M8 or M10 fasteners and will hold both sizes of bolt head captive. For any inquiries, please contact us via chat.
Spec Sheet - User Manual - Cert
Features:
- SWL: 40kg
- Tube Diameters: 25mm to 38mm
- Width: 25mm
- Fixings: M8/M10 Hole
- Weight: 0.30kg

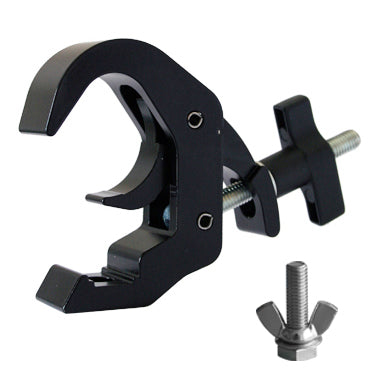

- Available in both aluminium and black
Other Quick Trigger Clamps:
- Without Fixings: 25-38mm (Current Product), 38-51mm (Standard / Slimline), 48-80mm
- With Fixings (bolt & wing nut): 38-51mm (Standard / Slimline), 48-80mm
- With an Eye: 38-51mm (Standard / Slimline), 48-80mm
- With a Half Connector: 38-51mm
- With a 29mm Receiver: 38-51mm (Standard / Slimline), 48-80mm
