Doughty Saddle Clamps (Steel)
€5.06incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Pipe to timber or channel. Connects a pipe to timber or a channel system.
- Easy installation. Two fixing holes for straightforward mounting.
- WLL up to 200 kg. 150 kg for the 38 mm version, 200 kg for the 48 mm versions.
- Two finishes. Zinc plated, or powder painted black for the 48 mm version (T30801).
Size:
38mm
Finish:
Zinc Plated
Accepted payment methods
Please enter correct zip code
shipping

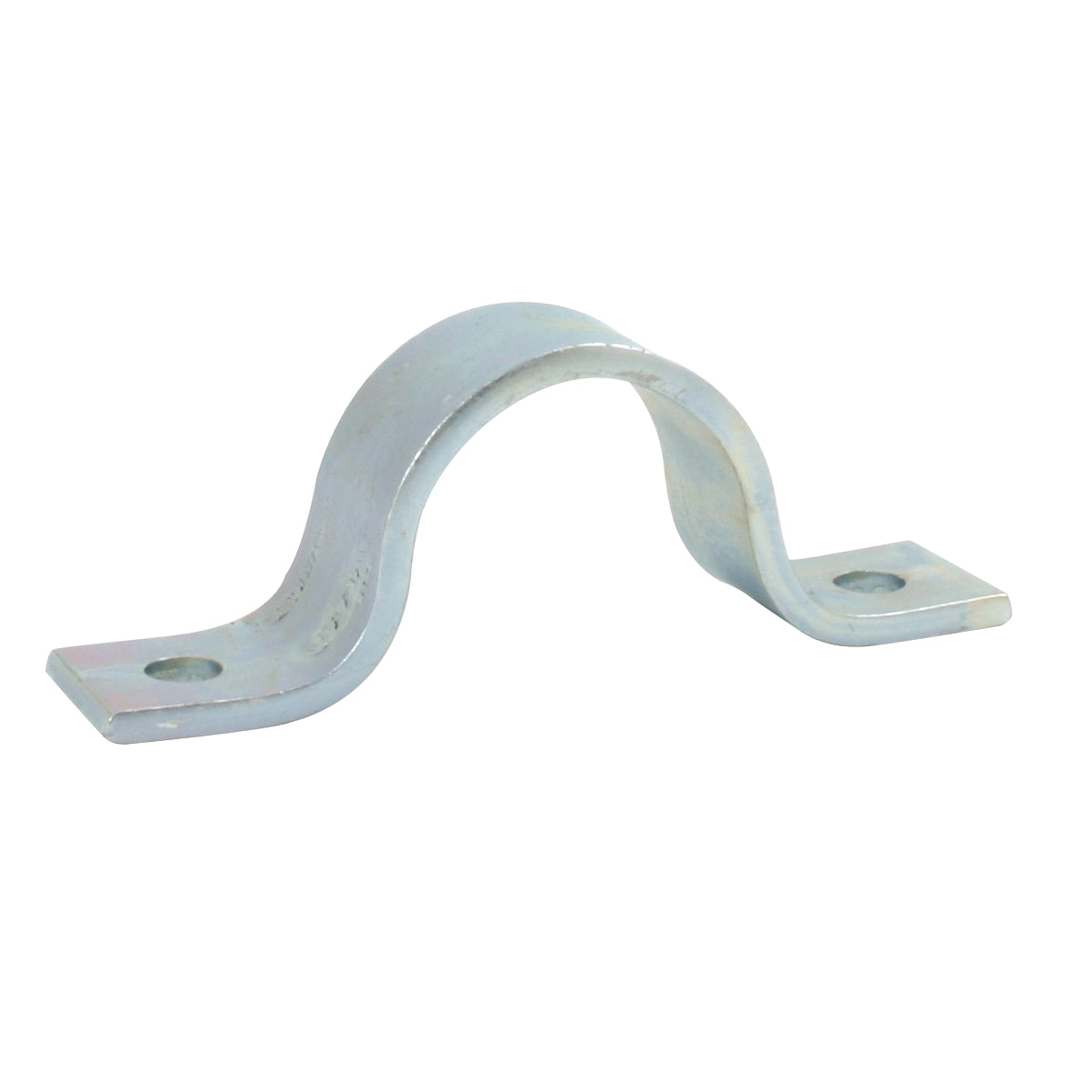

Doughty Saddle Clamps
Doughty Saddle Clamps are steel clamps designed to connect a pipe to timber or a channel system. Easy to install with the fixing holes. Available for tubes with a diameter of 38mm or 48mm; the 48mm version comes in a zinc plated or powder painted black finish. For any inquiries, please contact us via chat.

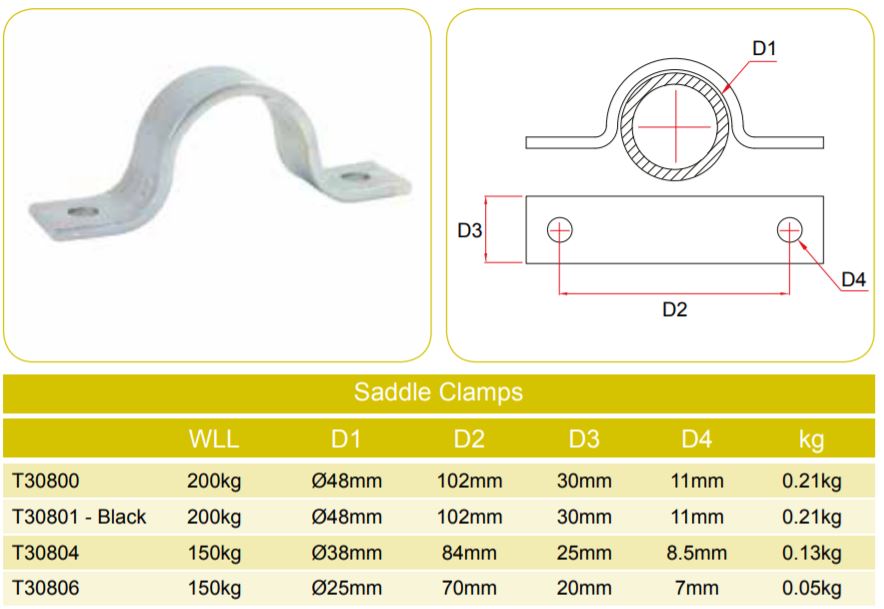

Specifications:
-
Versions:
T30804: 38mm, zinc plated (silver)
T30800: 48mm, zinc plated (silver)
T30801: 48mm, powder painted black - Material: Steel
-
WLL:
38mm version: 150kg
48mm version: 200kg -
Clamp Width:
38mm version: 25mm
48mm version: 30mm -
Fixing holes:
38mm version: 2 x 8.5mm diameter
48mm version: 2 x 11mm diameter -
Weight:
38mm version: 0.13kg
48mm version: 0.21kg
