Doughty M8 U Bolts with Plates 10pc/20pc/50pc

M8 U Bolts with Plates or without Plates

The purpose of a U bolt is to provide a clamping force to hold two components together. The round bend-shape makes the product range ideal for a variety of applications including attaching pipe or steel round bar to a round wood or steel post.

The range of M8 U bolts with plates (or without plates) is manufactured and tested in Doughty UK factory, quality is assured. Two sizes are available.

These strong steel U bolts can be used with numerous gears, e.g. Heavy Duty Multibeam Brackets, Standard Wall Bracket

For any inquiries, please contact us via chat.

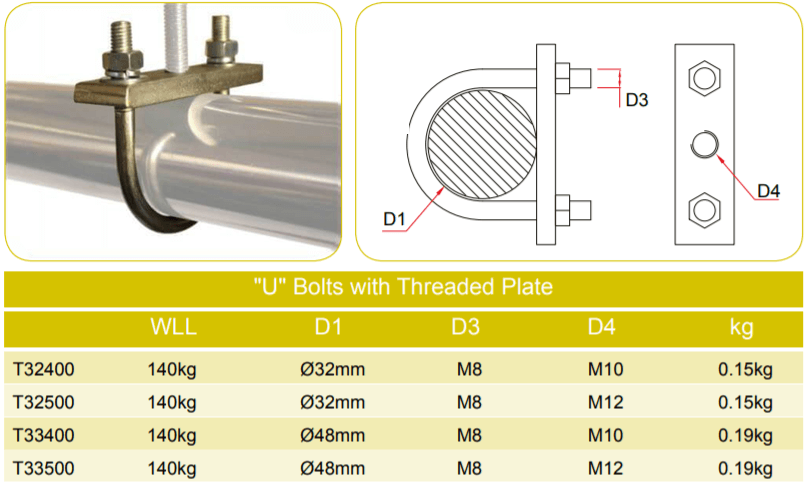

U bolts Specification: 32mm & 48mm

Features & Specifications

• Easy to fit and function ideally
• Pack Size: 10pc / 20pc / 50pc
• Tube Diameters: 32mm and 48mm
• Thread Size: M8
• Thread Length: 31mm
• Material: Steel
• Finish: Zinc Plated
• Threaded Plates (Optional): M10 and M12 threaded plates are available
