Doughty 38-51mm Slimline Quick Trigger Clamp (TÜV Tested) [Multi-Pack]

T58300-2

€41.52 Excl. VAT

Finish

Aluminum

Black

Qty

5 [3% Off]

10 [5% Off]

15 [7% Off]

Qty

📦 Need your gear delivered to the UK? Visit ShopMTN.co.uk to enjoy Brexit-proof shopping.

Collections: All Products, Doughty Engineering, Doughty Truss Clamp, Rigging Hardware

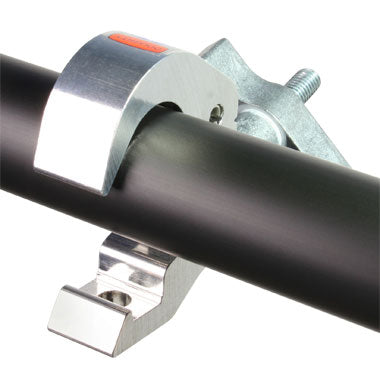

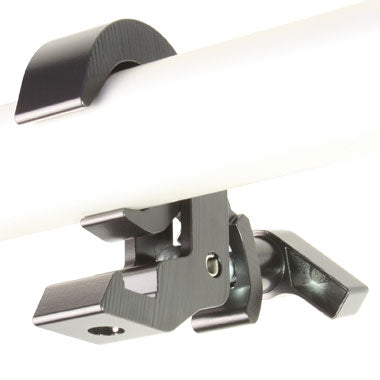

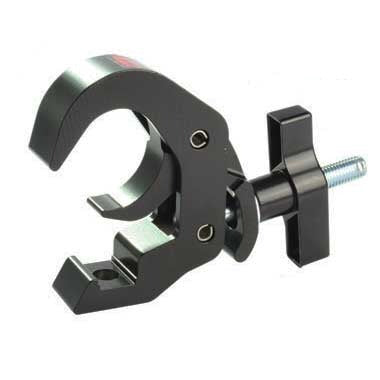

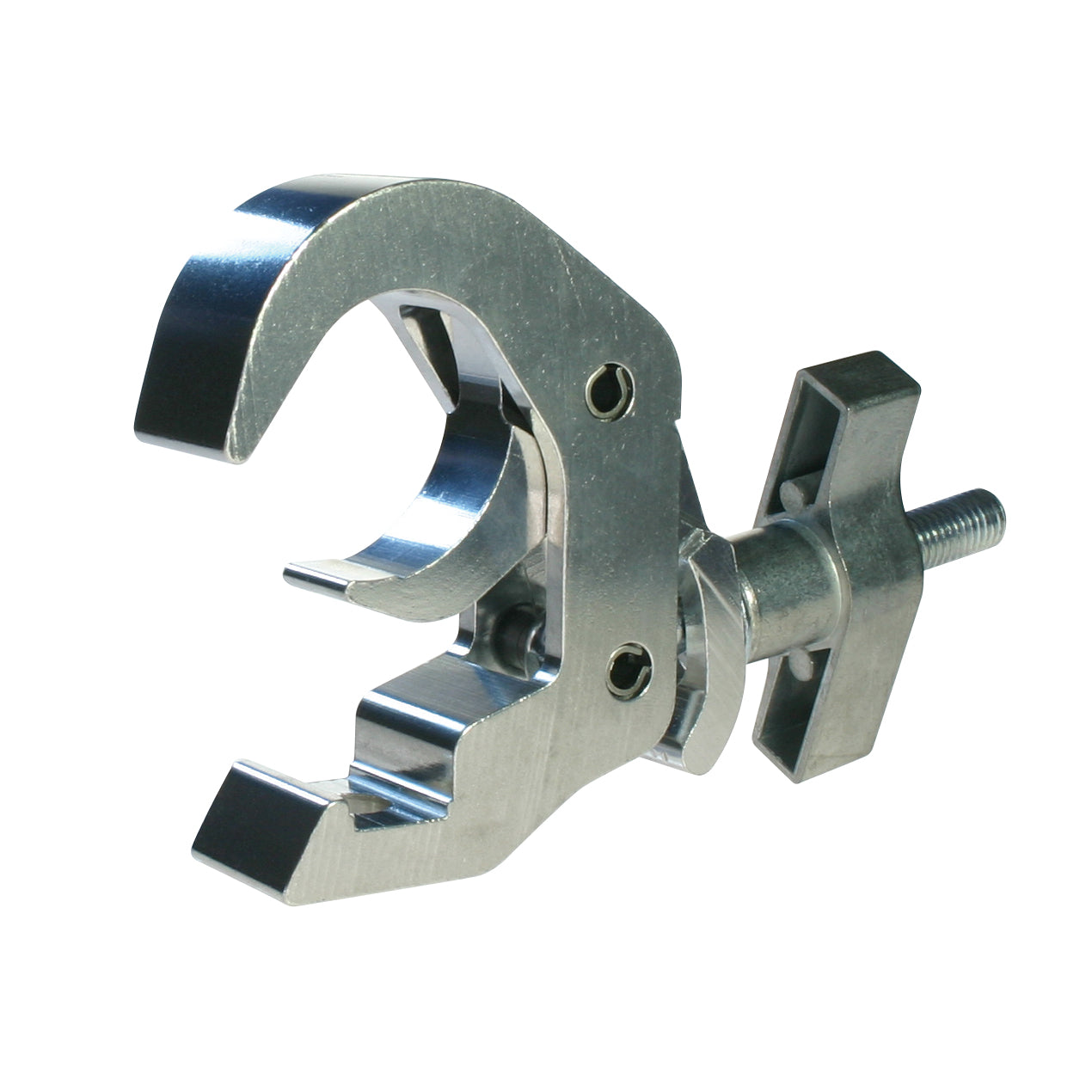

Doughty Quick Trigger Clamp T58300 (Slimline)

This clamp is the basis of all the Slimline Quick Trigger Clamps. It is only 30mm wide to be ideally mounted between truss webs. Its slotted base captivates an M12 Nut or Bolt, enabling users to create fixings suited to their own individual requirements.

Constructed from high tensile Aluminium Extrusion, Doughty T58301 / T58300 is broadly used in the theatre, film, TV and photographic industries for attaching to round tubes or truss chords and suspending equipment. A large easy-grip handle is fitted for handling. It is an extremely useful clamp for hanging valuable luminaries safely and easily. For any inquiries, please contact us via chat.

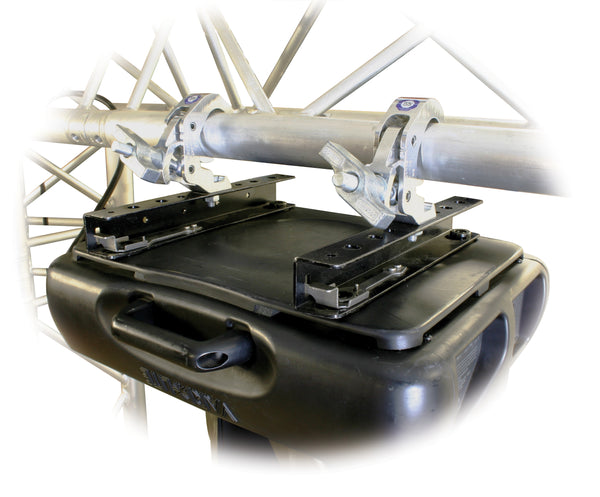

Figure 1: Quickly secure heavy luminaires and fixtures on any points of the truss without obstruction.

Spec Sheet - Cert

Specifications:

TÜV Tested and Certified
SWL: 100 Kg
Tube Diameters: 38mm to 51mm
Width: 30mm
Fixings: M12 Hole
Weight: 0.49 Kg
Material: Aluminum
Finish: Black or Polished Aluminium

Other Quick Trigger Clamps:

Without Fixings: 25-38mm, 38-51mm (Standard / Slimline), 48-80mm
With Fixings (bolt & wing nut): 38-51mm (Standard / Slimline), 48-80mm
With an Eye: 38-51mm (Standard / Slimline), 48-80mm
With a Half Connector: 38-51mm
With a 29mm Receiver: 38-51mm (Standard / Slimline), 48-80mm
