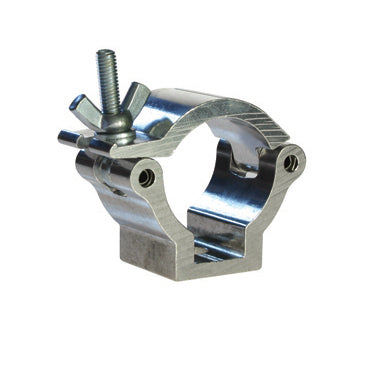

Doughty Half Coupler: 32mm Atom Clamp (20 piece)

Product No. T58800

*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.

Please note if you order less than €50 worth of Doughty products, your order will be refunded.

Regular price $378.00 excl. $86.94 VAT $464.94 incl. $86.94 VAT
Unit price  per
FINISH
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

Doughty half coupler 32mm with a capacity of 100 kg

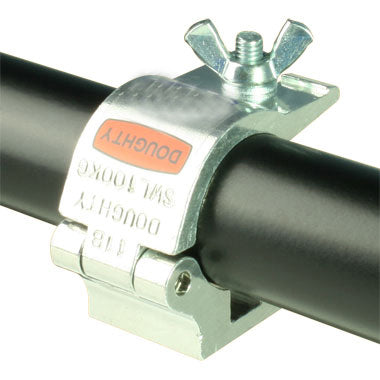

Atom Clamps are the smallest of the Doughty range of extruded aluminium stage lighting clamps. The Doughty half coupler 32mm has a WLL of 100kg and is TÜV certified. Not only are they suitable for lightweight trusses, but also the centre tube on most varieties of stands.

This clamp is the basis of the range of 32mm Atom Clamps and has a slotted base to hold an M6 Nut or Bolt. For any inquiries, please contact us via chat.

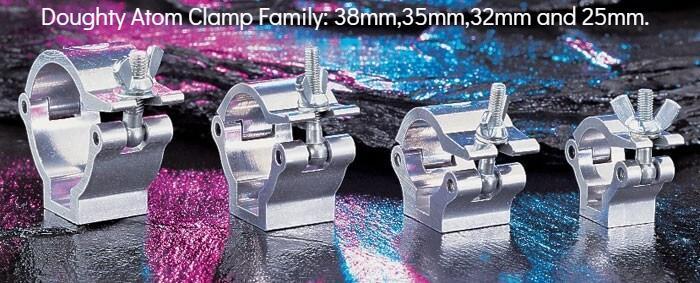

Spec Sheet of the Atom Half Coupler Range


Specification:

  • TÜV certified
  • Tube Diameter: Fit tubes with a 32mm diameter
  • Width: 30mm
  • Weight: 0.08kg
  • Max. Load Capacity: Load bearing up to 100kg
  • Fixing hole on the base: 6mm Diameter
  • Material: Aluminum
  • Finish: Available in both aluminium and black

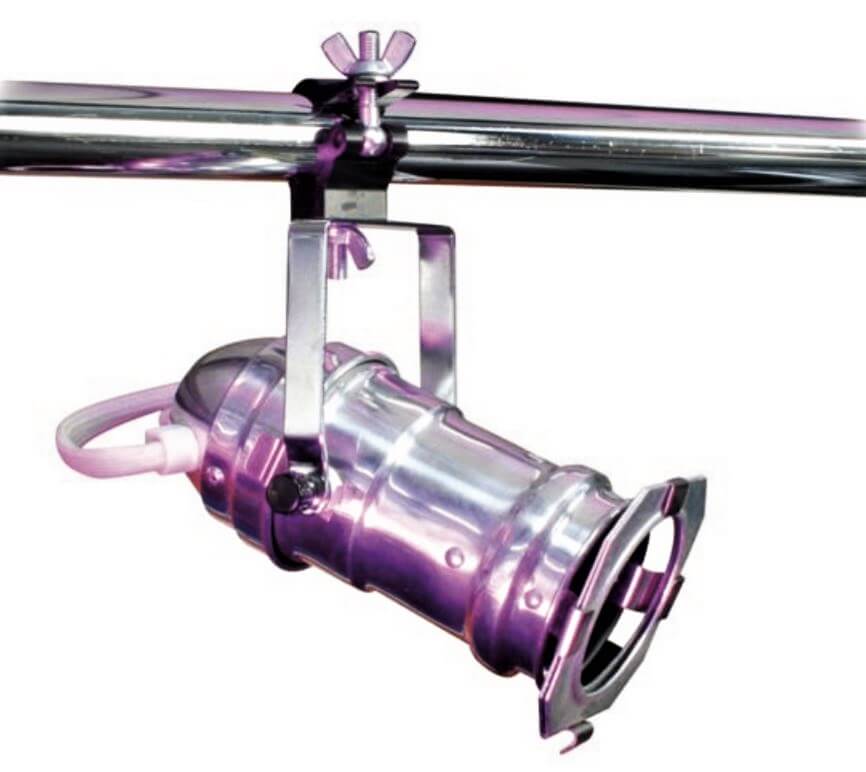

  • Applications: Ideal for shop displays, film lighting etc

Other Sizes of Doughty Half Coupler:


Doughty Clamp

Hook Clamp • Quick Trigger Clamp • Half Coupler Clamps


Manufacturer Information:

Doughty Engineering has begun to manufacture products for the entertainment industry since 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. As a member of the Professional Light and Sound Association (PLASA), Doughty adheres strictly to the standards of trading expected.
