Doughty Atom Half Coupler (38mm Diameter)

T58970

Finish

Category: Clamps

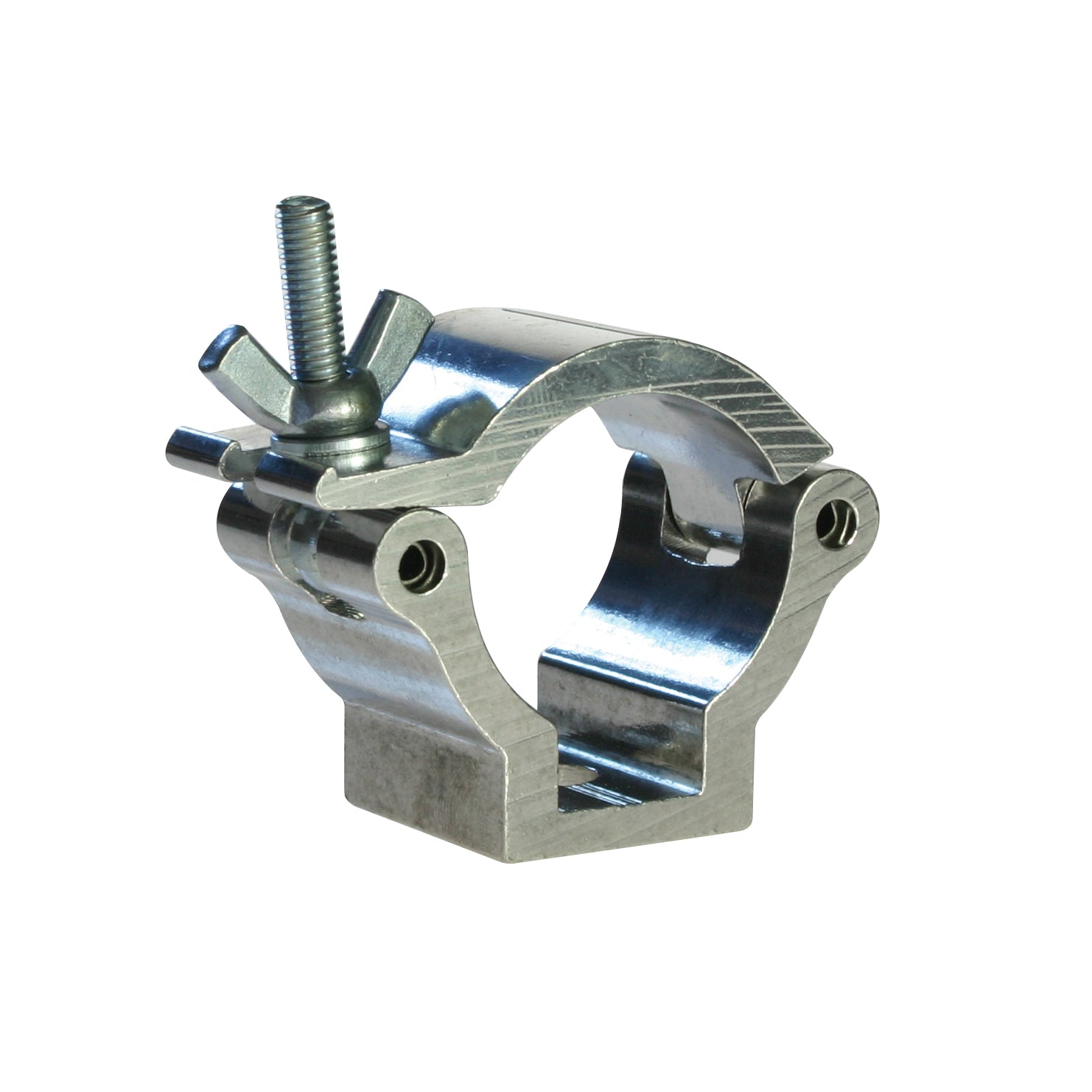

Doughty Half Coupler - 38mm Atom Clamp

Doughty Engineering has begun to manufacture products for the entertainment industry since 1985. As a member of Professional Light and Sound Association (PLASA), Doughty adheres strictly to the standards of trading expected.

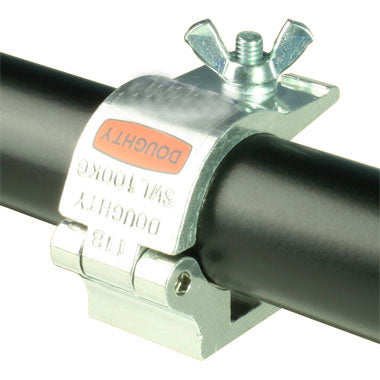

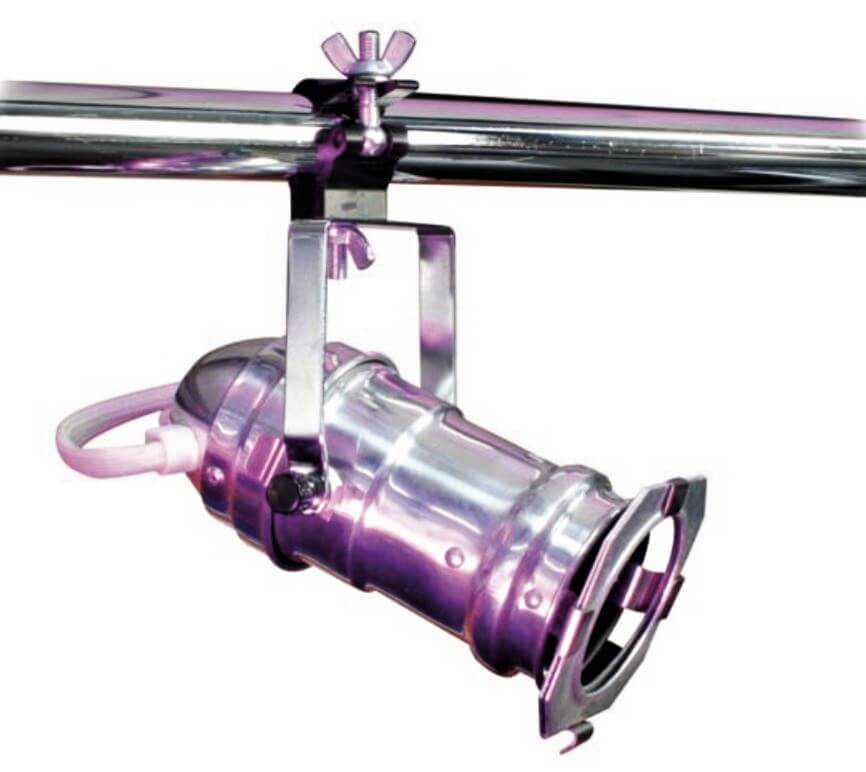

Atom Clamps are the smallest of the Doughty range of extruded aluminum couplers. They have a WLL of 100kg and are ideal for shop displays, film lighting etc. This Doughty clamp fits tubes with 38mm diameter. They are not only suitable for lightweight trusses, but also the centre tube on most varieties of stands.

This Half Coupler is the basis of the range of 38mm Atom Clamps and has a slotted base to captivate an M10 Nut or Bolt. Other sizes are available for attaching smaller tubes. For any inquiries, please contact us via chat.

Spec Sheet for the Atom Half Coupler range


Specification:

  • Tube Diameter: Fit tubes with a 38mm diameter
  • Width: 30mm
  • Weight: 0.09kg
  • Max. Load Capacity: Load bearing up to 100kg
  • Fixing hole on the base: 10mm Diameter
  • Material: Aluminum
  • Finish: Available in both aluminum and black

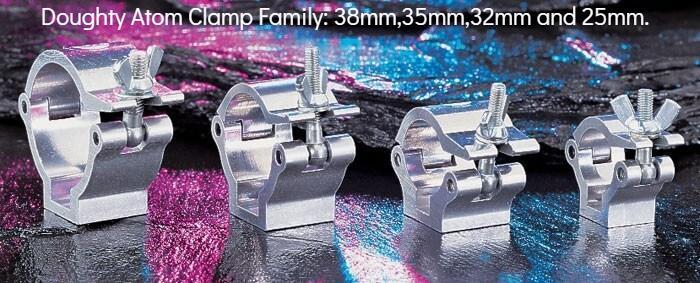

Smaller sizes are available to fit various diameter tubes: 25mm32mm & 35mm Atom Half Coupler

 Doughty Clamp - Doughty Half Coupler Infographic
