Doughty Boom Arms (Aluminium)
Incl. VAT. Shipping calculated at checkout.

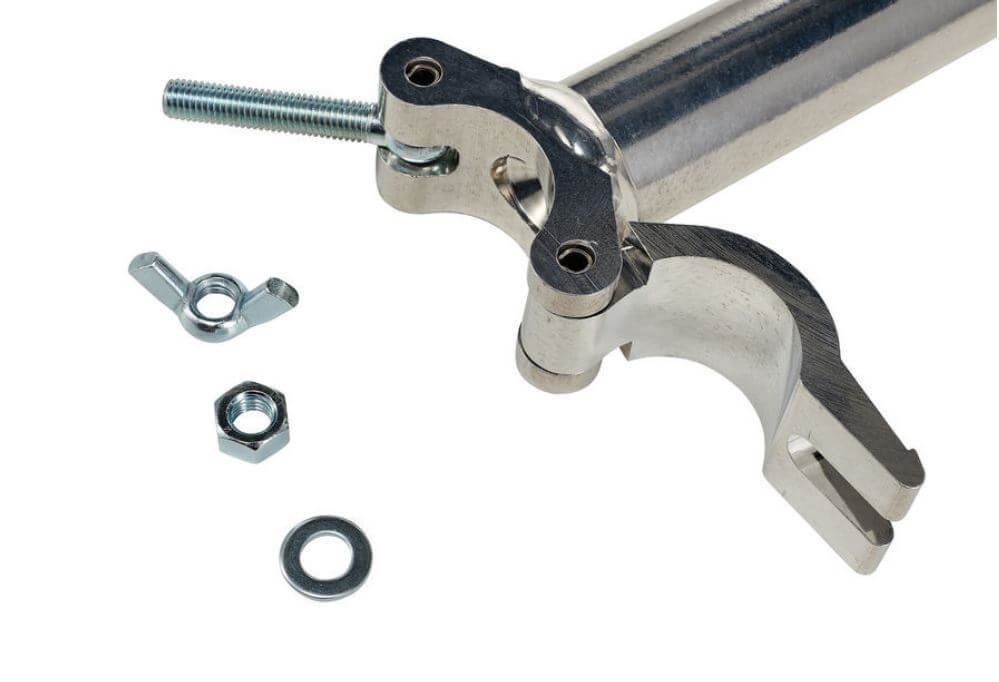

- 48 mm aluminium tube with weld coupler. Factory fitted coupler fixes to vertical trusses and scaffold tubes of 48-51 mm.
- Four lengths. 250, 500, 750 and 1000 mm, with WLL from 100 kg down to 25 kg.
- Sidelight and cross light. Mount lanterns on the horizontal boom arm.
- Two finishes. Powder coated silver or satin black.
- TÜV approved. 5:1 safety factor.
Accepted payment methods
shipping

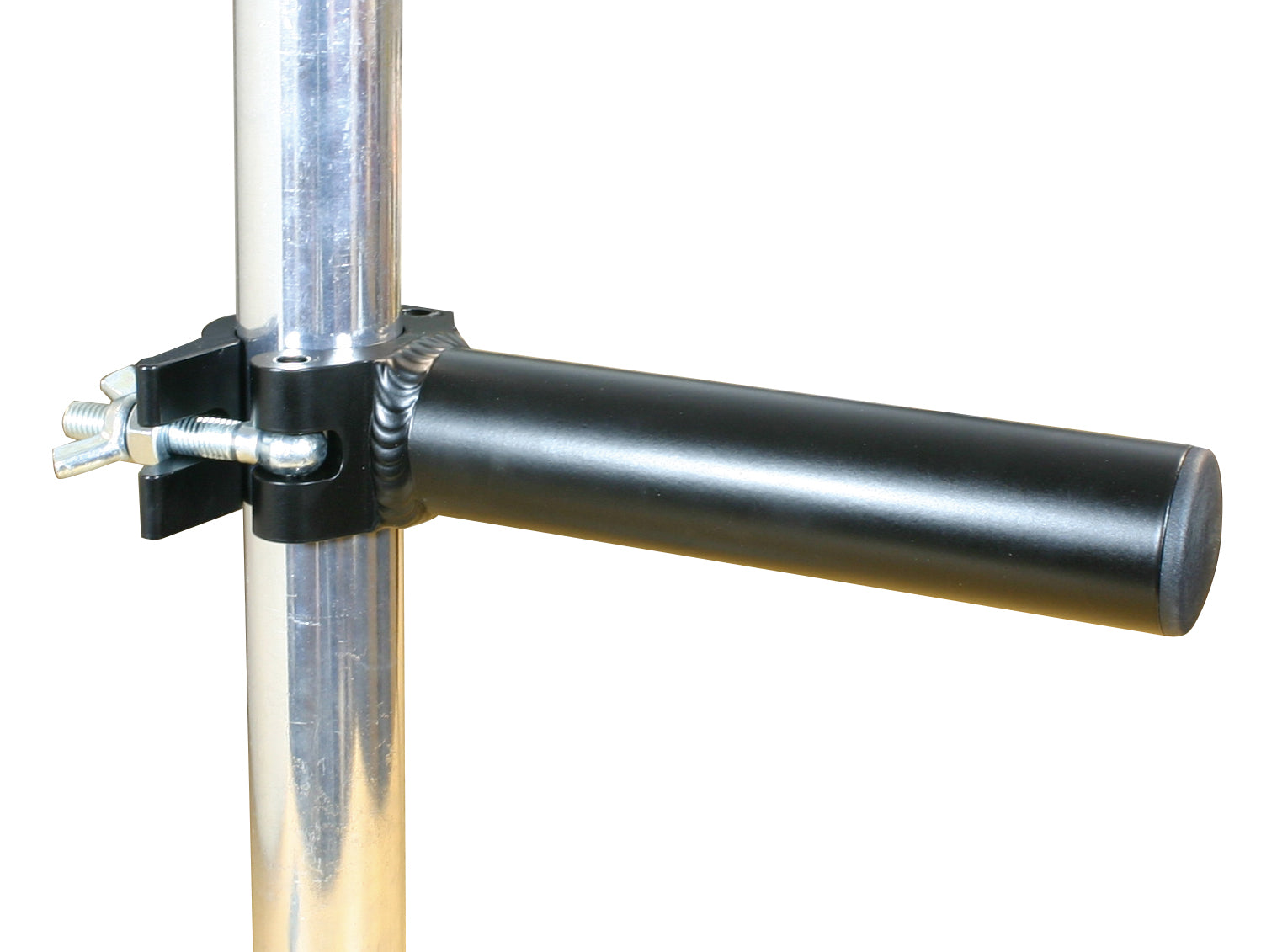

Doughty Boom Arms
The range of Doughty boom arms consists of a 48mm diameter aluminium tube and a factory fitted weld coupler. These products are ideally fixed to vertical aluminium trusses and standard scaffold poles, creating your ideal lighting set up.
Lanterns can be mounted on the horizontal boom arms to create sidelight or cross light across the stage. We also supply heavy-duty boom arm to meet your challenging lighting tasks.
Four lengths and two finishes (silver or satin black powder coat) are available. For any inquiries, please contact us via chat.
Specifications:
- Part Nos (Silver): T57310 (250mm), T57315 (500mm), T57317 (750mm), T57320 (1000mm)
- Part Nos (Black): T57311 (250mm), T57316 (500mm), T57318 (750mm), T57321 (1000mm)

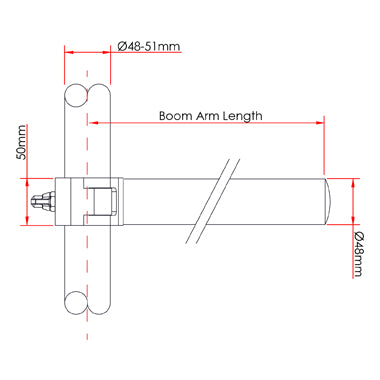

- Tube Diameter: Fit 48 - 51mm diameter tubes
- Boom Arm Diameter: 48mm

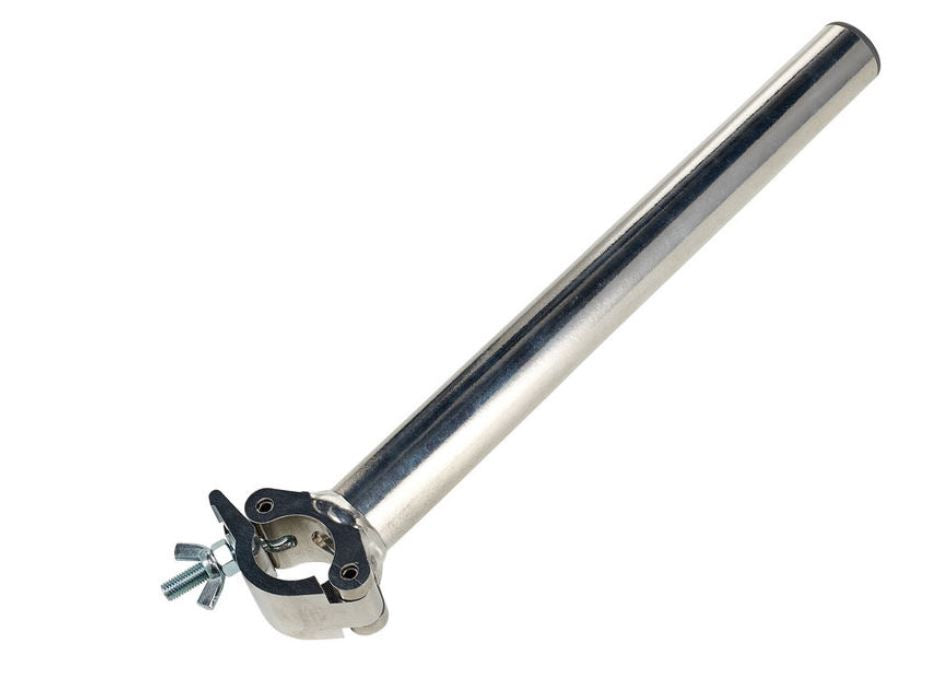

- Boom Arm Length: 250mm, 500mm, 750mm, 1000mm
-
WLL:
250mm - 100kg
500mm - 50kg
750mm - 37kg
1000mm - 25kg -
Weight:
250mm - 0.86kg
500mm - 1.28kg (silver) / 1.27kg (black)
750mm - 1.71kg (silver) / 1.68kg (black)
1000mm - 2.07kg (silver) / 2.10kg (black) - Safety Factor: 5:1
- Approval: TÜV approved
- Material: AW6082 T6 aluminium
- Finish: Powder coated silver or powder coated satin black

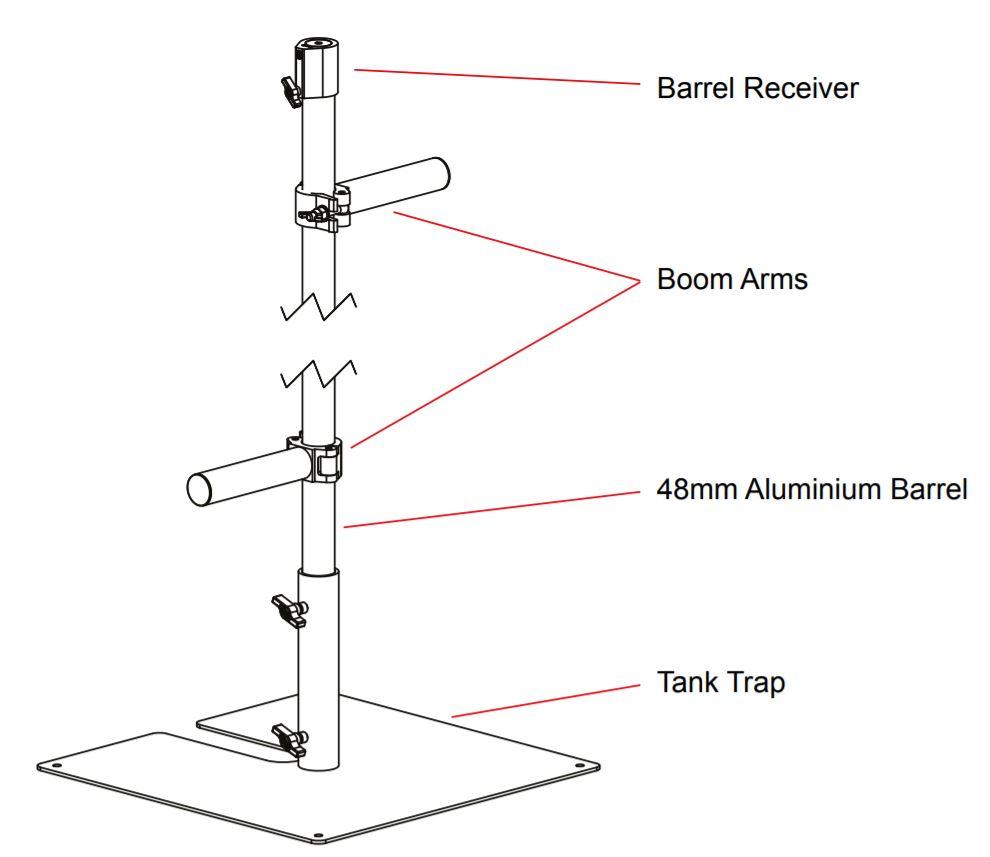

Items you may also need for stage lighting:
- Doughty Tank Trap: A lighting boom base with a long 48mm receiver to secure a bar/tube.
- 48mm Tube/Bar (Aluminium/Steel): A standard tube for attaching horizontal boom arms for sidelight.

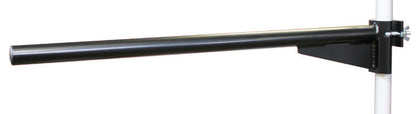

- Boom Arms: Heavy-duty boom arm, boom arm with a brace
- Doughty Receiver: Attach 48mm/51mm tubes or bars to lights.
- Doughty Clamps: Mount lights, speakers or other equipment to the horizontal boom arms.
Note: Be careful of the orientation (see Spec Sheet).
