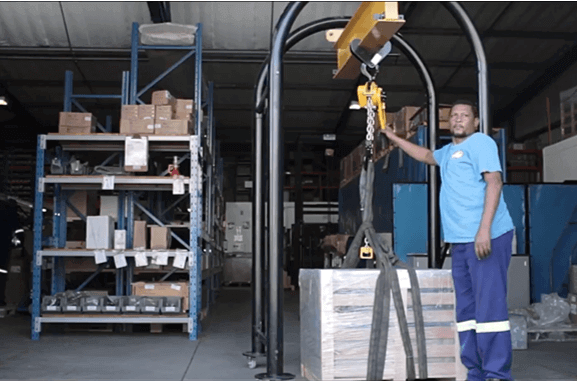

  • How to use lever hoist? - imagen 6
  • Yale Ratchet Lever Hoist (UNOplus A) 750-6,000KG– Capacity: .75-6t. UK No.1 Brand. Optimized gearing & Improved bearings. Fast Delivery. International S/H. Best Sales Now! – Now available at MTN Shop EU. - imagen 7
  • Yale Ratchet Lever Hoist (UNOplus A) 750-6,000KG– Capacity: .75-6t. UK No.1 Brand. Optimized gearing & Improved bearings. Fast Delivery. International S/H. Best Sales Now! – Now available at MTN Shop EU. - imagen 8
  • Yale Ratchet Lever Hoist (UNOplus A) 750-6,000KG– Capacity: .75-6t. UK No.1 Brand. Optimized gearing & Improved bearings. Fast Delivery. International S/H. Best Sales Now! – Now available at MTN Shop EU. - imagen 9
  • Yale Ratchet Lever Hoist (UNOplus A) 750-6,000KG– Capacity: .75-6t. UK No.1 Brand. Optimized gearing & Improved bearings. Fast Delivery. International S/H. Best Sales Now! – Now available at MTN Shop EU. - imagen 10

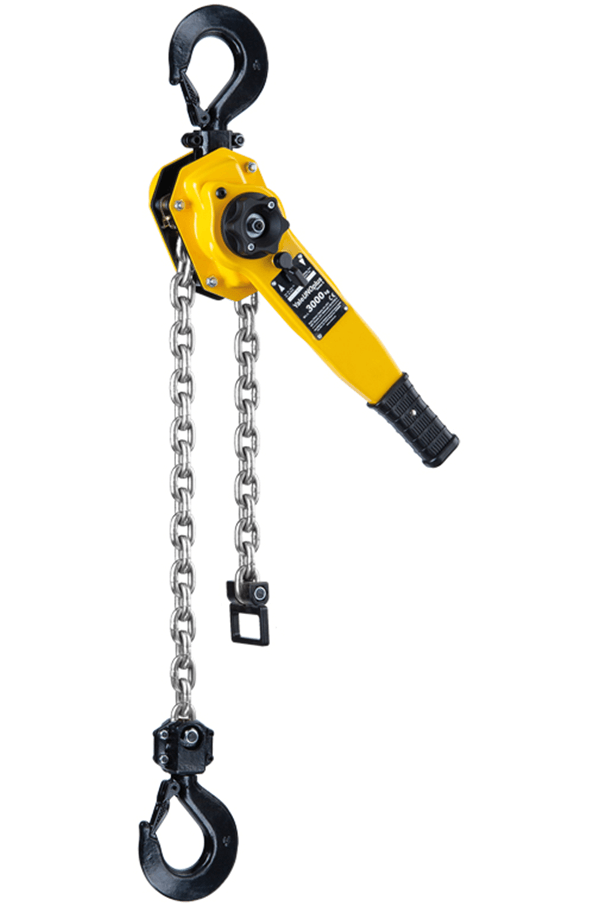

Yale Ratchet Lever Hoist (UNOplus A) 750-6000KG

Yale |
SKU: 192049841-1.5
€272.16incl. VAT

Incl. VAT. Shipping calculated at checkout.

  • 750 to 6000 kg capacity. Four models with lifts from 1.5 m to 18 m for lifting, pulling and securing loads.
  • Low operating effort. Optimised gearing and improved bearings reduce the effort on the shorthand lever.
  • Automatic load brake. Screw-and-disc type brake with corrosion-protected components.
  • Robust stamped steel design. Steel handwheel, chain guide rollers and a sturdy bottom block.
  • EN 12195 load attachment. Hoists above 750 kg capacity can be used for load attachment to EN 12195.
View Full Description Technical Data
Capacity: 750 Kg
Lift: 1.5 meters

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Please select country
Please enter correct zip code

shipping

Test heading

Ratchet Lever Hoist (UNOplus A)

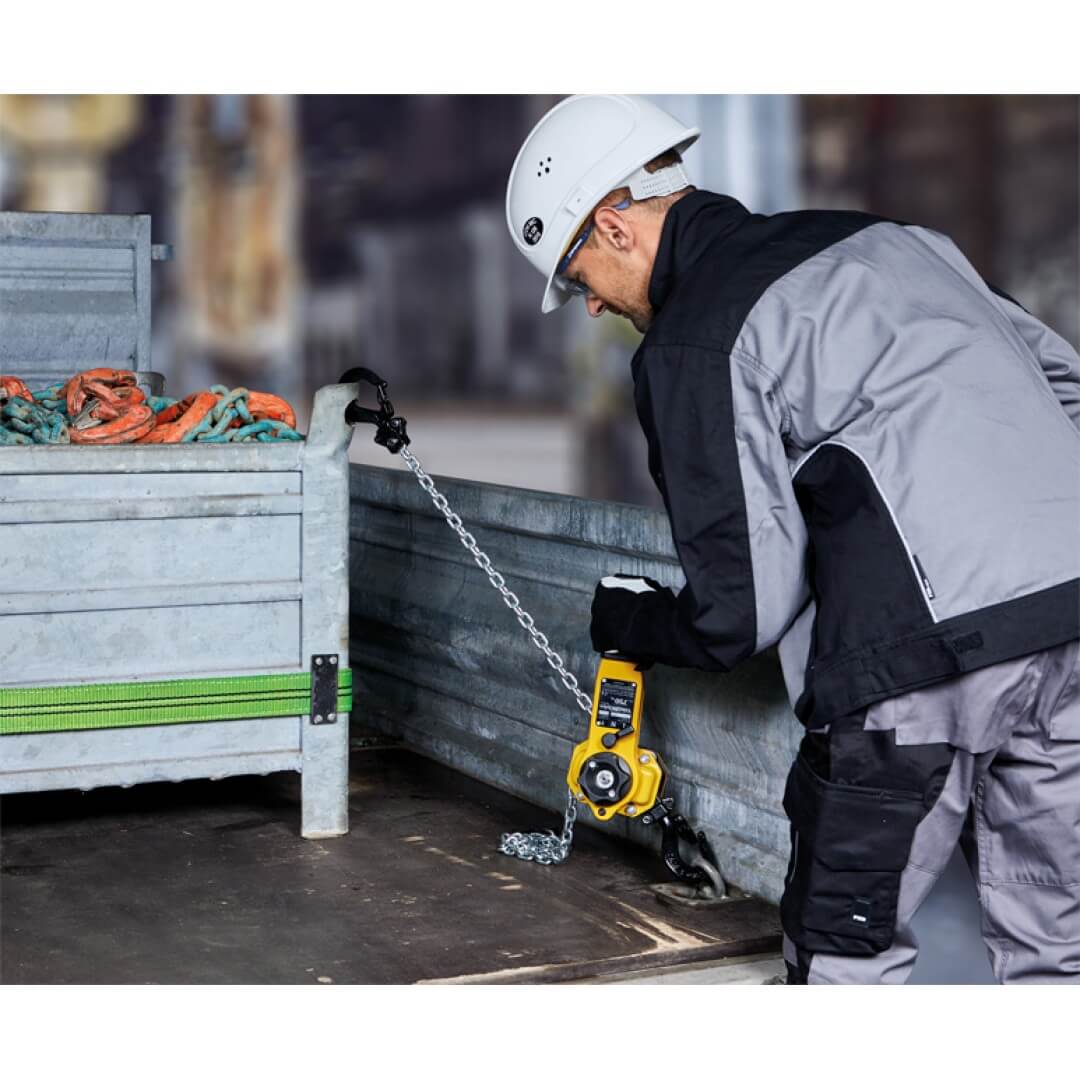

Ratchet Lever Hoists are also known as lever hoists, come alongs or lever blocks. They can be used for vertical and horizontal movements like pulling, dragging, stretching and positioning loads across industries by operating the lever/handle with one hand.

Further technical development turns the ratchet lever hoist into the successor of the proven UNO model. The versatile tool for lifting, pulling and securing of loads is characterized by its compact design and robust stamped steel construction. The capacity ranges from 750kg to 6000kg and the lift from 1.5m to 18m. For other lifts, please contact us via chat.

Yale is a global brand of Columbus McKinnon (CM). The Yale name is synonymous with quality hoisting equipment and has been since 1877 when Linus Yale, Jr. produced the first spur geared hand chain hoist with the Weston Screw Brake. Today, Yale still leads the industry with new and innovative products, making their hoists and lifting equipment the no.1 choice in the UK and globally recognized.



Technical Data - User Manual - Manual Hoist Guide(Lever Hoist vs Chain Hoist)

FEATURES

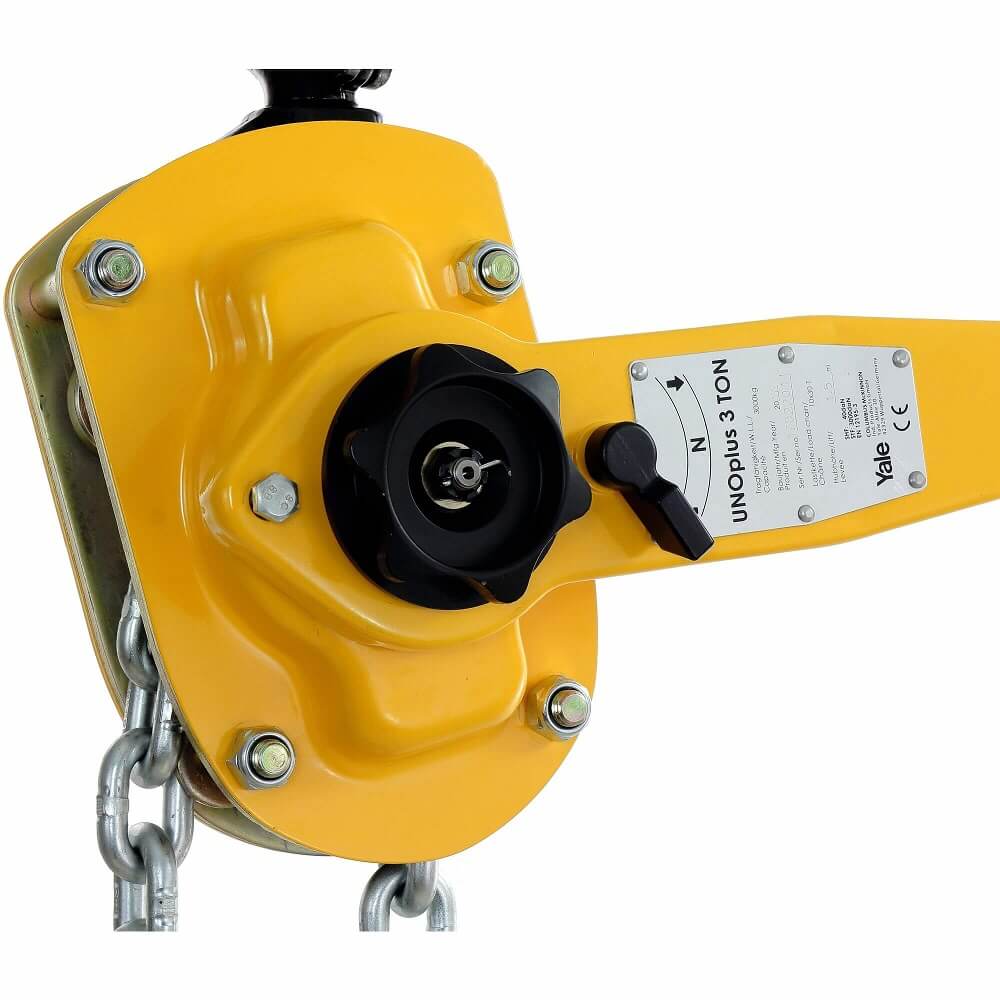

  • Due to optimized gearing and improved bearings in the housing cover, a minimum effort is required to operate the shorthand lever.
  • Steel handwheel as standard.
  • Automatic screw-and-disc type load brake with corrosion-protected components.
  • Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.

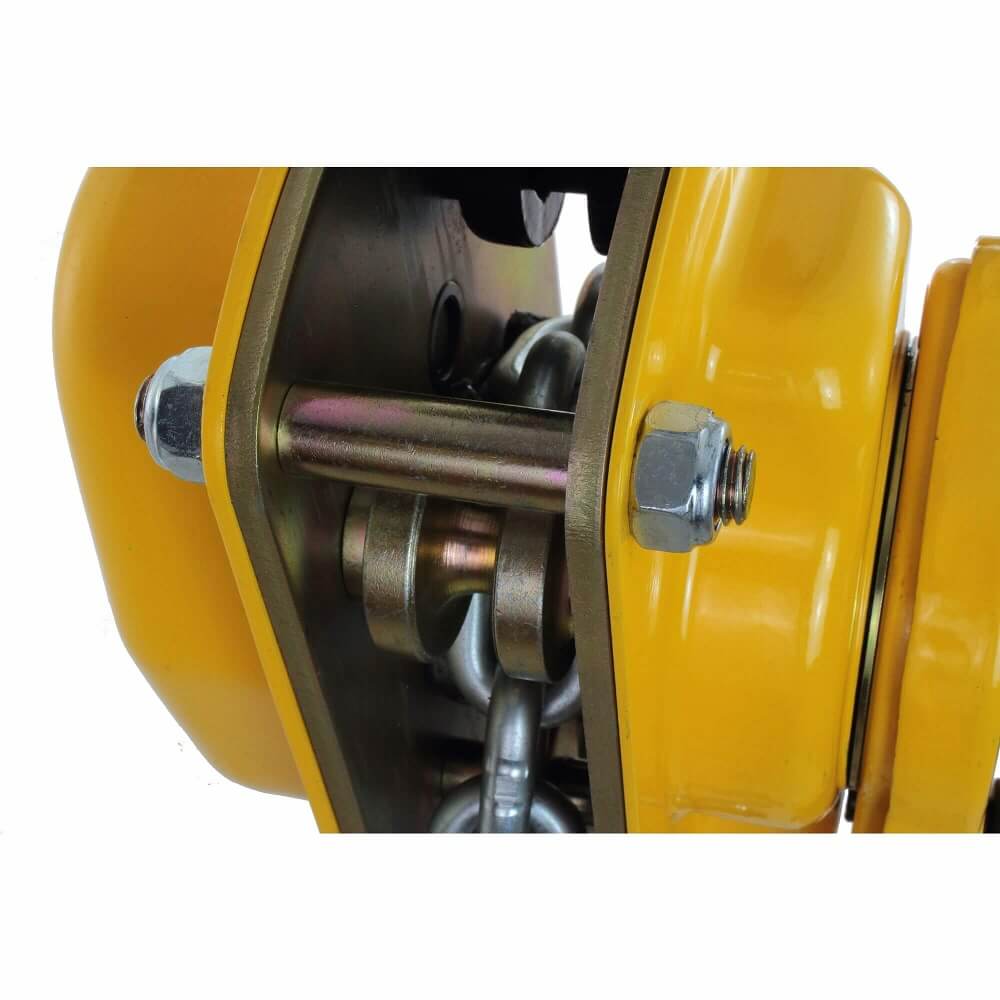

  • Robust chain guide rollers eliminate fouling and jamming of chain on the load sheave.
  • Sturdy bottom block with encapsulated bolt connections.
  • Alloyed steel link chain with zinc-plated resp. yellow chromate finish, in accordance with national and international standards and regulations.
  • Drop forged suspension and load hooks are made from non-ageing, high tensile steel and fitted with robust safety latches.

TECHNICAL DATA

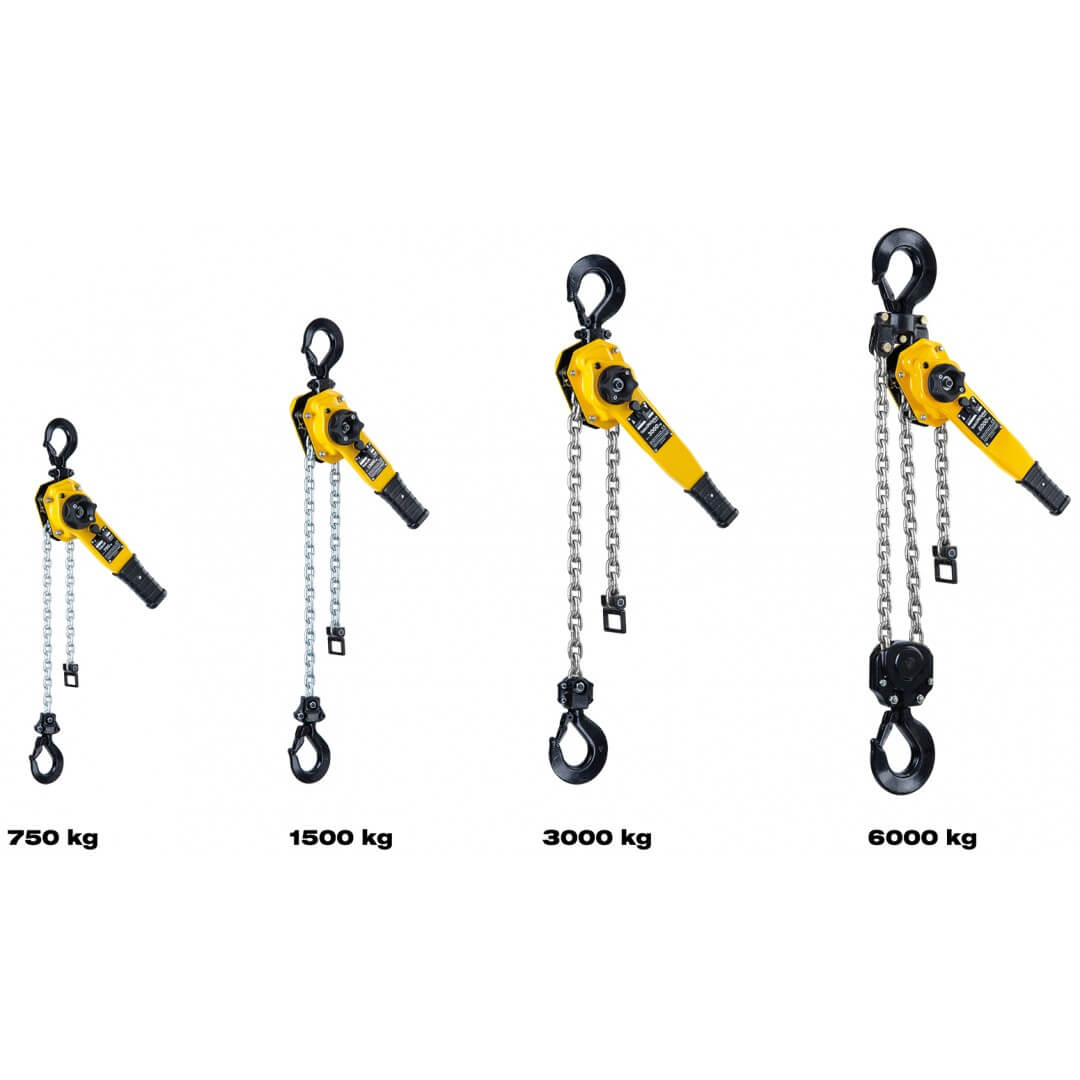

  • UNOplus A 750 (192049841): 750kg, 1 chain fall, chain 5.6 x 17.1mm, handle pull 22 daN, 6.3kg at 1.5m lift
  • UNOplus A 1500 (192049940): 1500kg, 1 chain fall, chain 7.1 x 21mm, handle pull 35 daN, 9.2kg at 1.5m lift
  • UNOplus A 3000 (192050025): 3000kg, 1 chain fall, chain 10 x 28mm, handle pull 40 daN, 16.9kg at 1.5m lift
  • UNOplus A 6000 (192050579): 6000kg, 2 chain falls, chain 10 x 28mm, handle pull 43 daN, 28.6kg at 1.5m lift
  • Height of lift: 1.5m (standard), 3m, 6m, 9m, 12m, 15m, 18m

DETAILS

  • Items often needed to operate a lever hoist:
    - Suspension: It can be suspended in a fixed location with a Beam Clamp or from a Push Trolley/Geared Trolley with its top hook.
    - Load Attachment: The lower hook can directly attach a load but quite commonly a lifting sling is used to secure a load onto the hook (in conjunction with shackles sometimes)
  • Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
  • All ratchet lever hoists with a capacity exceeding 750 kg can be used for load attachment according to EN 12195.
