Doughty Quick Trigger Clamp 38-51mm with Receiver

T58240

Collections: All Products, Doughty Clamp, Doughty Engineering- Rigging, Lifting & Suspension Gear, Rigging Hardware

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

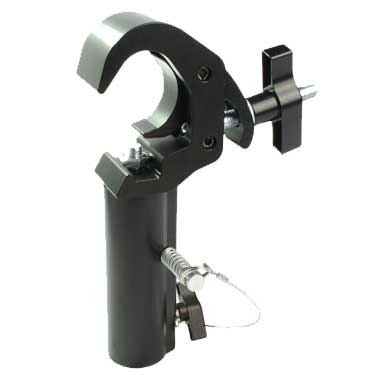

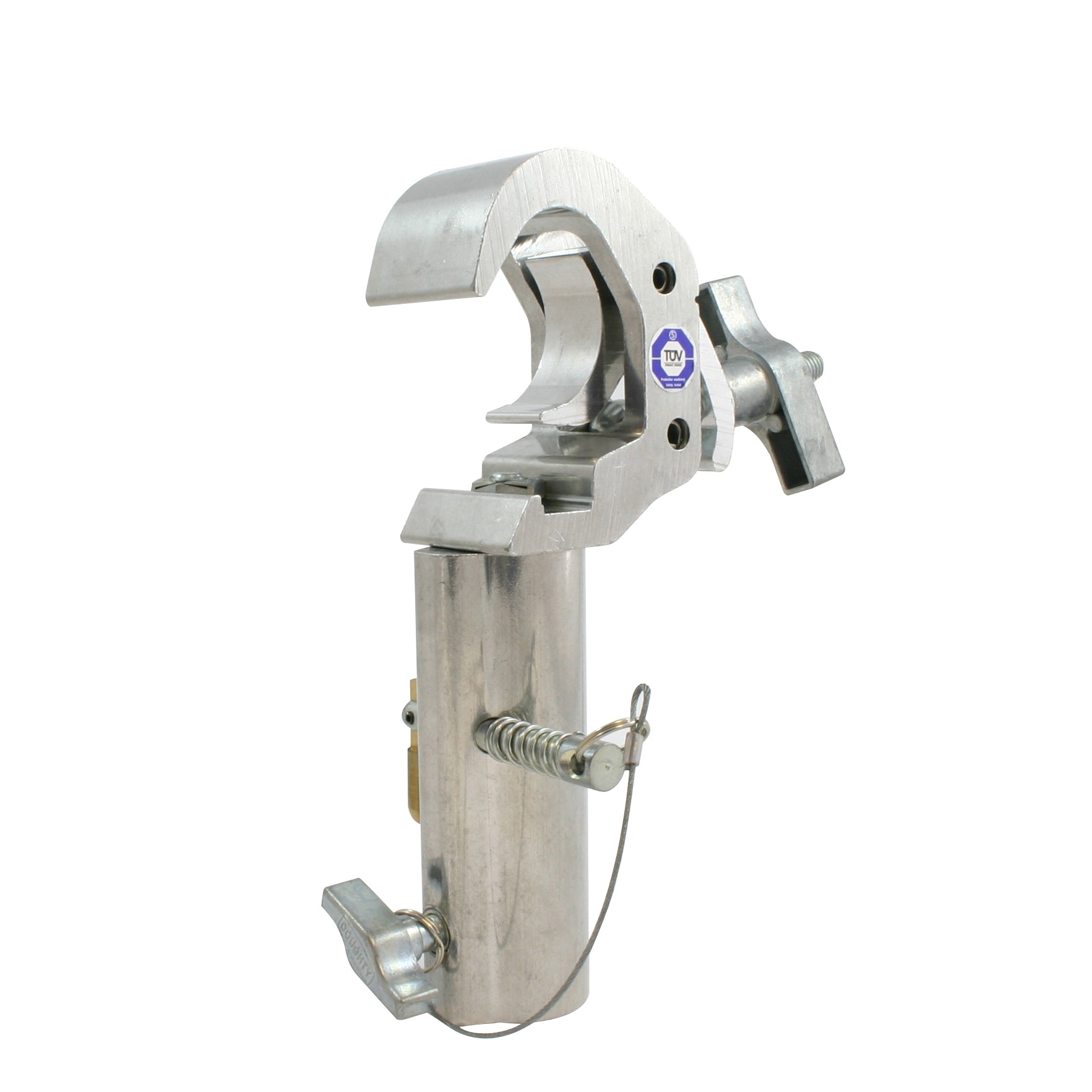

Doughty Quick Trigger TV Clamp

The Quick Trigger TV Clamp is supplied fitted with a 29mm diameter Receiver. This Clamp is designed predominantly to attach to round tubes or truss chords and suspend equipment and luminaries in the TV/Film industry.

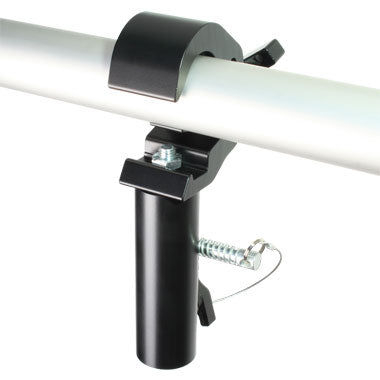

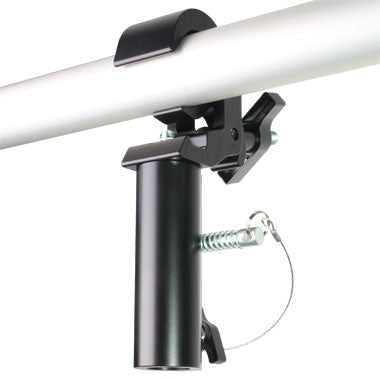

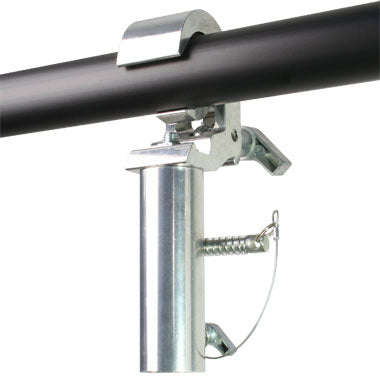

A large Easy-grip handle is fitted for ease of use. The spring-loaded jaws stay open and automatically close with the weight of the object being hung, leaving both hands free to lift and position the load. For any inquiries, please contact us via chat.

Spec Sheet - User Manual - Cert

Specifications:

SWL: 200 Kg
Tube Diameters: 38 to 51mm
Width: 50mm
Fixings: 29mm receiver
Weight: 1.16 Kg
Material: High tensile aluminium
Finish: Polished Aluminum / Black Powder Coated

Other Quick Trigger Clamps:

Without Fixings: 25-38mm, 38-51mm (Standard/ Slimline), 48-80mm
With Fixings (bolt & wing nut): 38-51mm (Standard/ Slimline), 48-80mm
With an Eye: 38-51mm (Standard/ Slimline), 48-80mm
With a Half Connector: 38-51mm
With a 29mm Receiver: 38-51mm (Standard/ Slimline), 48-80mm
