Doughty 38-51mm Quick Trigger Hook Clamp
Product No. T58205
Please Note: We require a minimum order value of €55 for all Doughty products.
- Shipping note: All Doughty products ship from the UK with customs charges prepaid. If you have any questions, please contact us.
Regular price
€34.23
€42.10
excl. €7.87 VAT
incl. €7.87 VAT
Shipping calculator
Please enter correct zip code
Payment methods
Product details

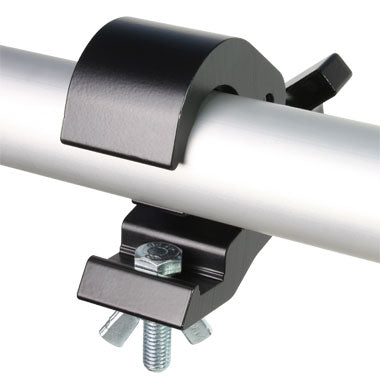

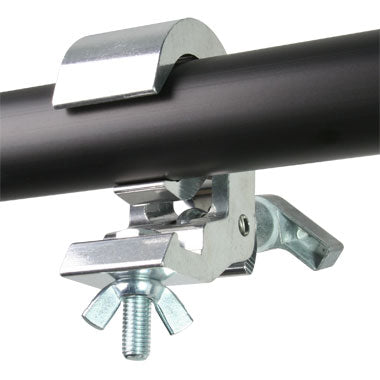

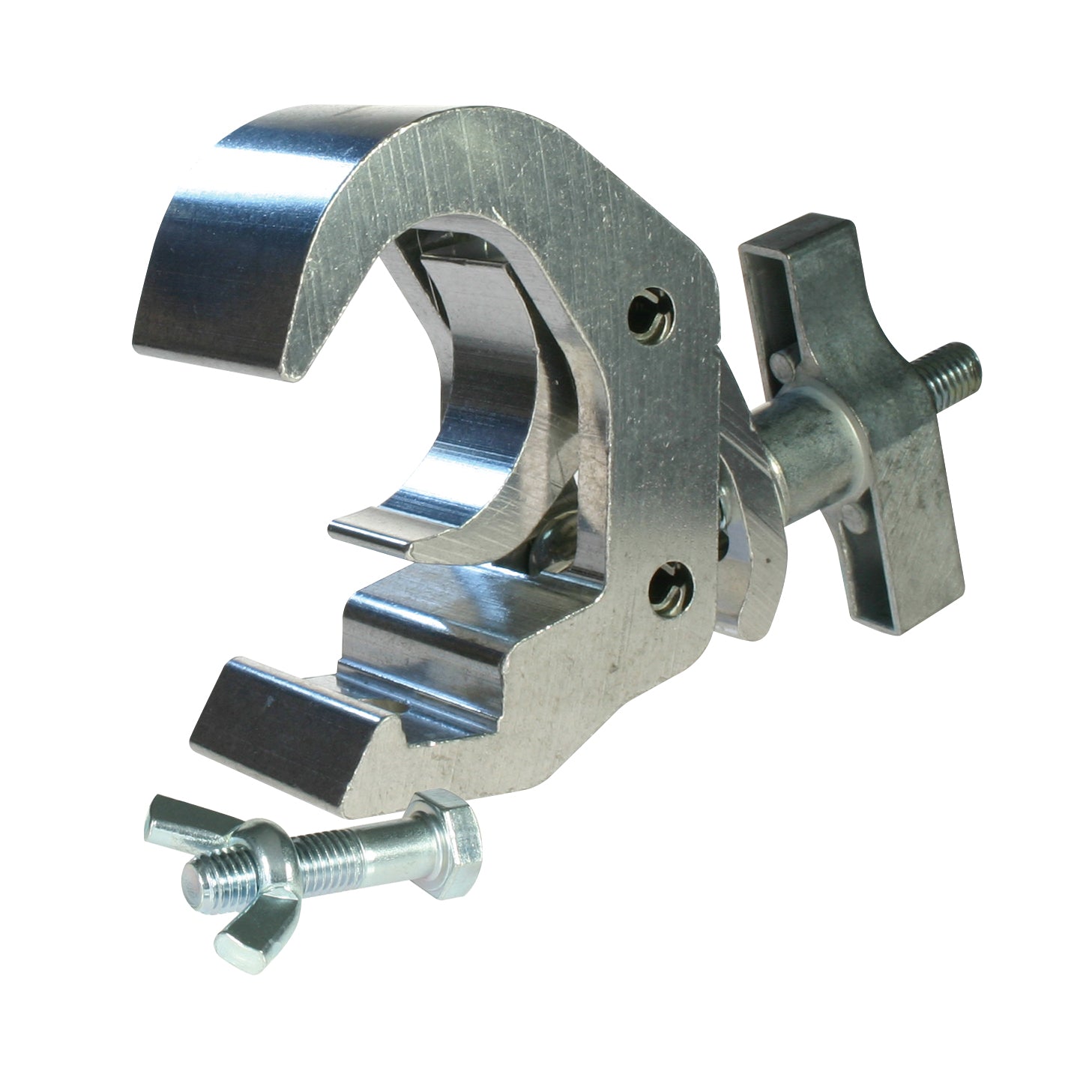

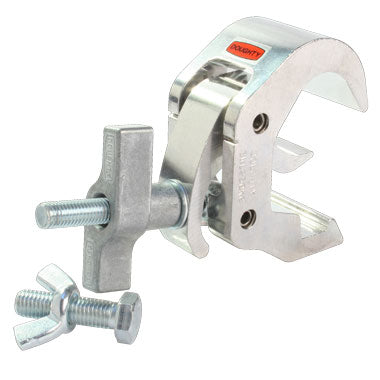

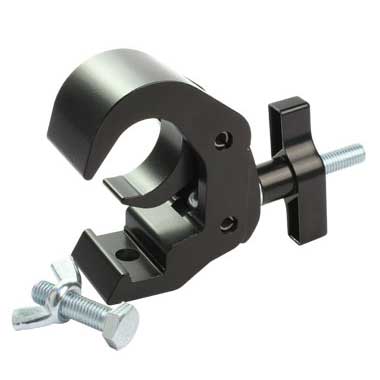

Doughty Quick Trigger Hook Clamp
The Quick Trigger Hook Clamp is supplied with a Wing Nut and M12 Bolt Fixing. A large Easy-grip handle is fitted for ease of use. An extremely useful clamp for hanging valuable luminaries safely and easily on any points of the truss without obstruction.
Quick Trigger Clamp Demonstration - A Light Hung Next to Cross Beams Without Obstruction
The spring-loaded jaws stay open and automatically close with the weight of the object being hung, leaving both hands free to lift and position the load. Broadly applicable in the theatre, film, TV and photographic industries.
For any inquiries, please contact us via chat.
Spec Sheet - User Manual - Cert
Specifications:
- SWL: 250 Kg
- Tube Diameters: 38 to 51mm
- Width: 50mm
- Fixings: M12 x 45 bolt & wing nut
- Weight: 0.84 Kg
- Material: High tensile aluminium
- Finish: Polished Aluminum / Black Powder Coated
Other Quick Trigger Clamps:
- Without Fixings: 25-38mm, 38-51mm (Standard/ Slimline), 48-80mm
- With Fixings (bolt & wing nut): 38-51mm (Standard/ Slimline), 48-80mm
- With an Eye: 38-51mm (Standard/ Slimline), 48-80mm
- With a Half Connector: 38-51mm
- With a 29mm Receiver: 38-51mm (Standard/ Slimline), 48-80mm
