Doughty 50mm Trigger Hook Clamp (w/M12 fixings)
Product No. T58861
*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.
Please note if you order less than €50 worth of Doughty products, your order will be refunded.
Shipping calculator
Payment methods
Product details

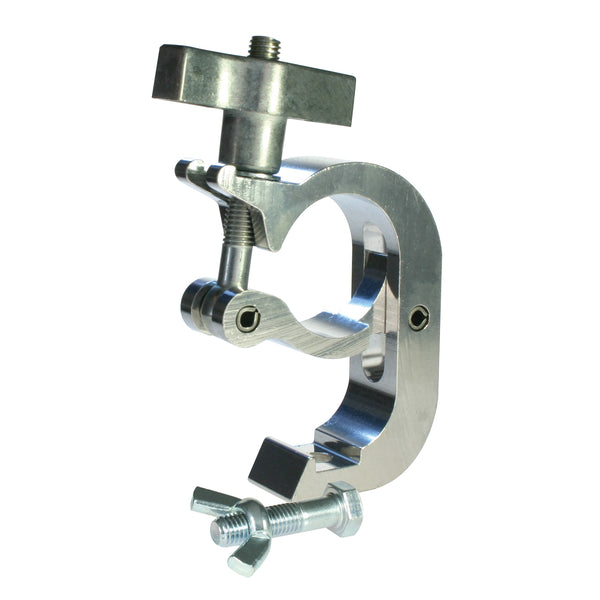

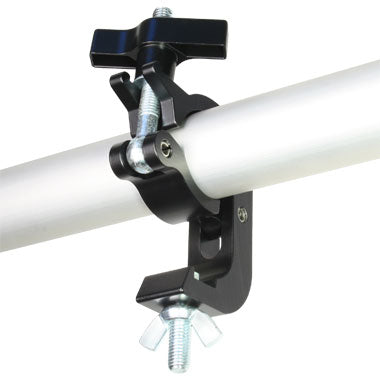

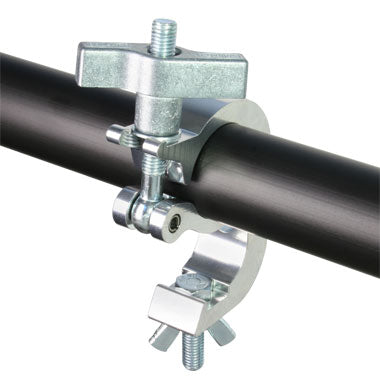

Doughty Trigger Hook Clamp
The Trigger Hook Clamp is supplied with a Wing Nut and M12 Bolt Fixing. This Doughty Clamp is designed to allow one person to hang heavy luminaires and scanners. The weight of the object being hung becomes its own safety factor by automatically closing the trigger and the bottom half of the clamp.
This unique feature allows the luminaires to be easily positioned and securely ‘locked off’ using the large easy-grip handle.
Constructed from high tensile Aluminium extrusion, the clamp is lightweight and very strong, with a safe working load of 200kg. It is also available in Black or Polished Aluminium.
For any inquiries, please contact us via chat.

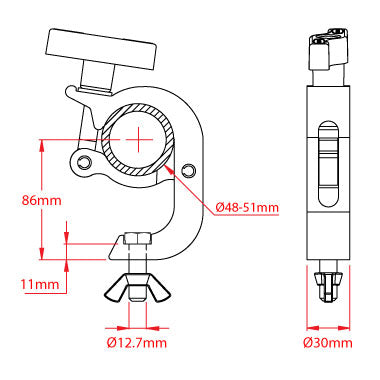

Specifications :
- SWL: 200 Kg
- Tube Diameters: 48mm to 51mm
- Width: 30mm
- Fixings: M12 x 45 bolt & wing nut
- Weight: 0.58 Kg
- Material: High tensile aluminium
- Finish: Polished aluminium or black powder-coated
Other Trigger Clamps :
- No fixing or with a wing nut & M12 bolt fixing
- With an eye for hanging
- With a 16mm lighting pin
- With a 19mm spigot
- With a 29mm receiver
- With a half connector
- Swivel coupler
