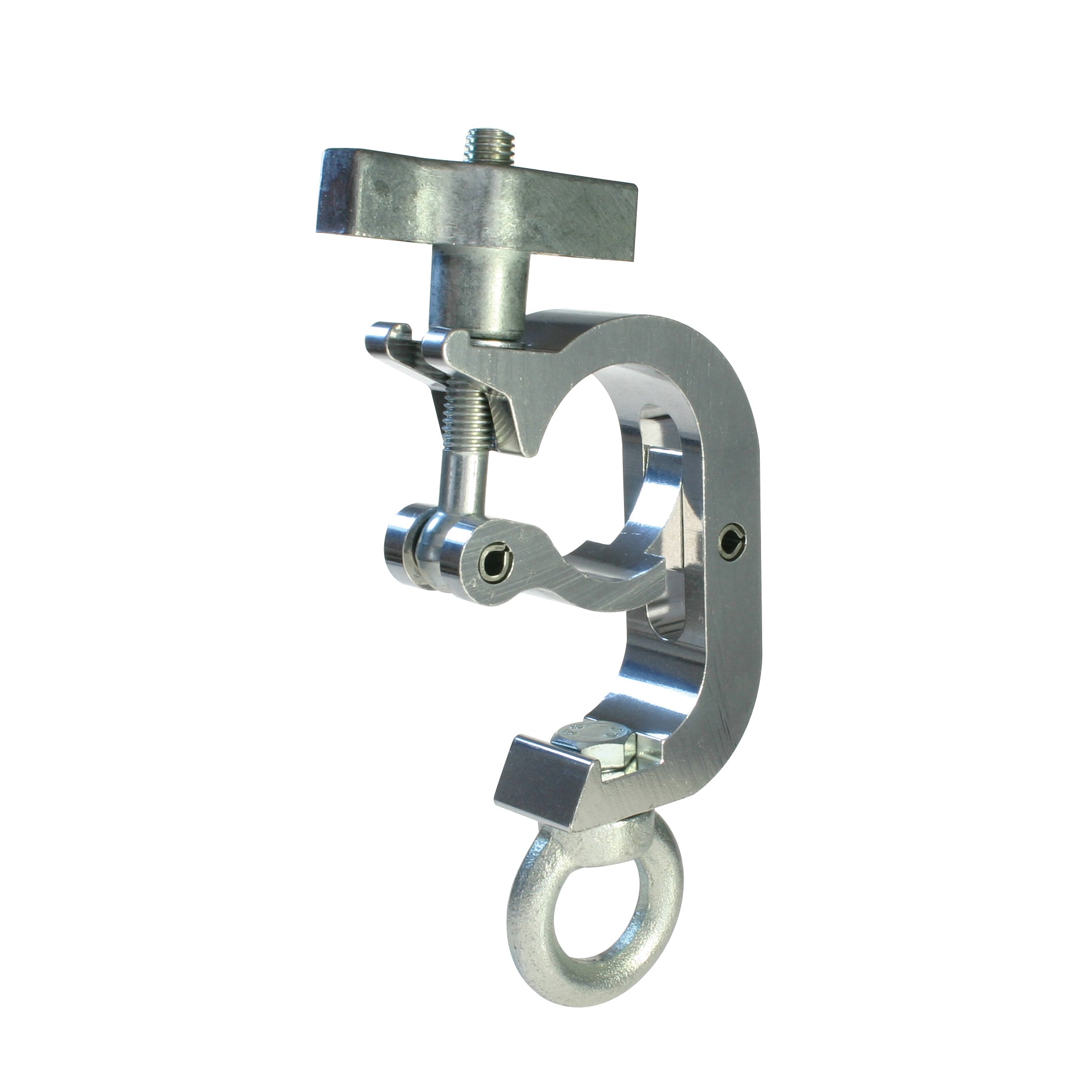

Doughty Eye Clamp: 48-51mm Trigger Clamp

48-51mm Trigger Eye Clamp

The Trigger Eye Clamp is supplied fitted with an Eyenut with 30mm diameter, making it ideal for suspending wire hung loads while attaching to a tube.

This Doughty Clamp is also designed to allow one person to hang heavy luminaires and scanners. The weight of the object being hung becomes its own safety factor by automatically closing the trigger and the bottom half of the clamp.

This unique feature allows the luminaires to be easily positioned and securely ‘locked off’ using the large Easy-grip handle.

Constructed from high tensile aluminium extrusion, the clamp is lightweight but strong, with a safe working load of 200kg. It also comes with two finishes.

For any inquiries, please contact us via chat.

Specifications :

• SWL: 200 Kg
• Tube Diameters: 48mm to 51mm
• Width: 30mm
• Fixings: M12 Eye Nut with 30mm diameter
• Weight: 0.71 Kg
• Material: High tensile aluminium
• Finish: Polished aluminium or black powder-coated

Please browse the whole range of eye clamps on Doughty collection for different sizes and functions.

Other Trigger Clamps :

• No fixing or with a wing nut & M12 bolt fixing
• With an eye for hanging (current product)
• With a 16mm lighting pin
• With a 19mm spigot
• With a 29mm receiver
• With a half connector
• Swivel coupler
