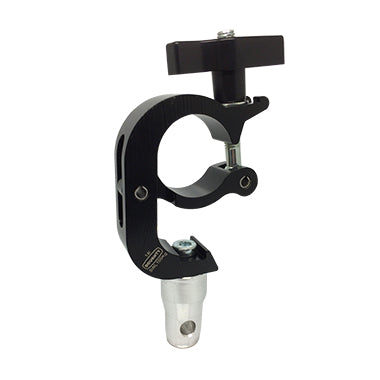

Doughty 48-51mm Trigger Clamp with Half Connector
€52.40incl. VAT
Incl. VAT. Shipping calculated at checkout.
- One-person rigging. Designed to allow one person to hang heavy luminaires and scanners.
- Self-closing trigger. The weight of the hung object automatically closes the trigger and the bottom half of the clamp.
- Easy lock-off. Large tee easygrip handle for positioning and securely locking off luminaires.
- WLL 100 kg. AW6082 T6 aluminium, fits 48-51 mm tubes, 0.66 kg.
- Half connector fitted. Works with Doughty Modular Rigging System components.
Finish:
Aluminum
Accepted payment methods
Please enter correct zip code
shipping
Doughty Trigger Clamp with Half Connector
A Doughty Trigger Clamp (T58860/T588601) fitted with a half connector to work with the Doughty Modular Rigging System components.
The Doughty Trigger Clamp is designed to allow one person to hang heavy luminaires and scanners. The weight of the object being hung becomes its own safety factor by automatically closing the trigger and the bottom half of the clamp.
This unique feature allows the luminaires to be easily positioned and securely ‘locked off’ using the large tee ‘easygrip’ handle.
For any inquiries, please contact us via chat.
Specifications:
- Part Numbers: T45825 (polished silver), T45826 (powder painted satin black)
- Tube Diameter: 48-51mm
- WLL: 100 kg (vertical load)
- Factor of Safety: 5:1
- Materials: AW6082 T6 aluminium main body, stainless steel roll pins, grade 8.8 eyebolt assembly
- Fixing: Aluminium half connector
- Max. Tightening Torque: Hand tighten only
- Weight: 0.66kg
Other Trigger Clamps:
- No fixing or with a wing nut & M12 bolt fixing
- With an eye for hanging
- With a 16mm lighting pin
- With a 19mm spigot
- With a 29mm receiver
- With a half connector (current product)
- Swivel coupler
