Doughty 50mm Trigger Clamp

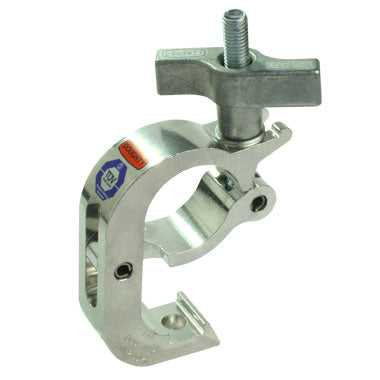

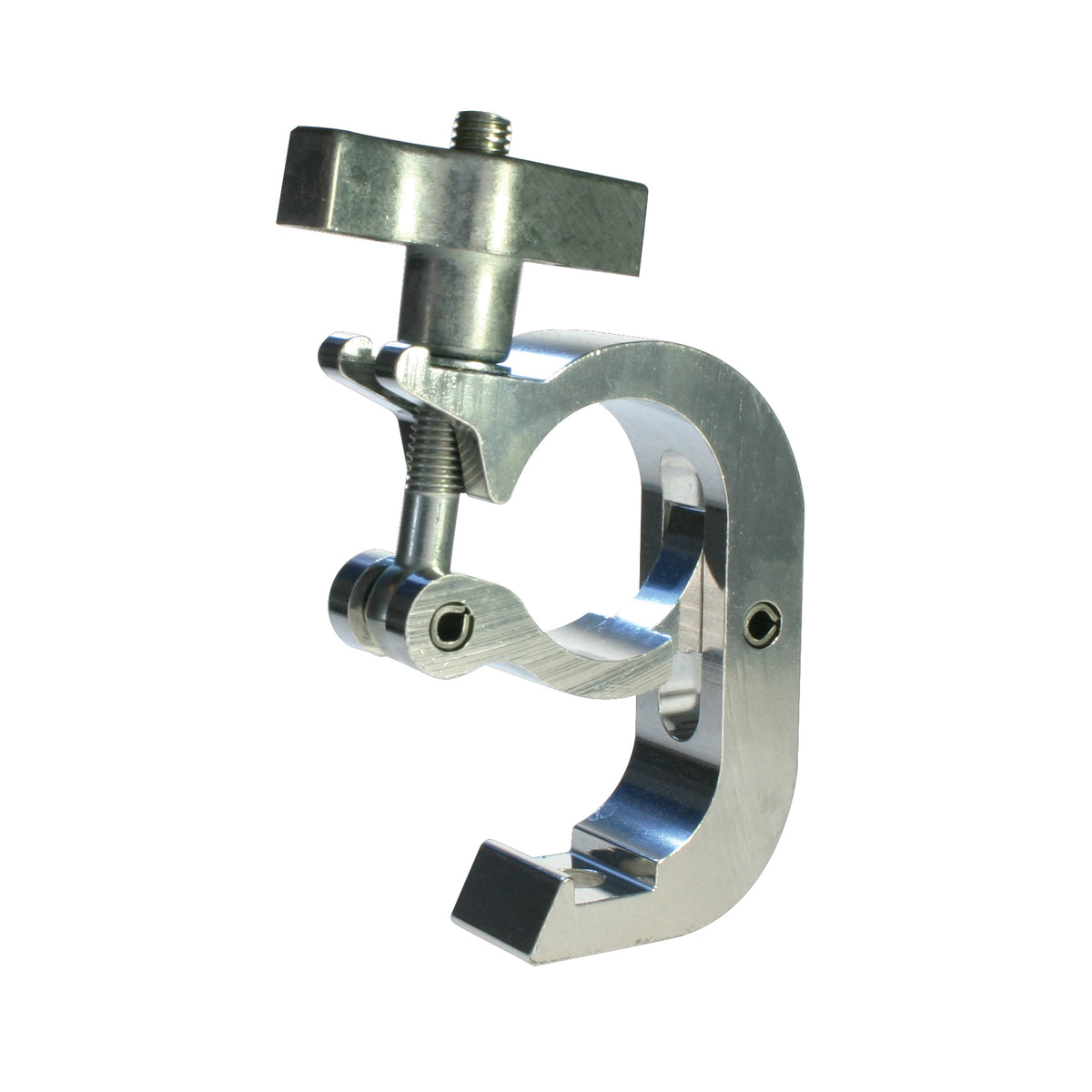

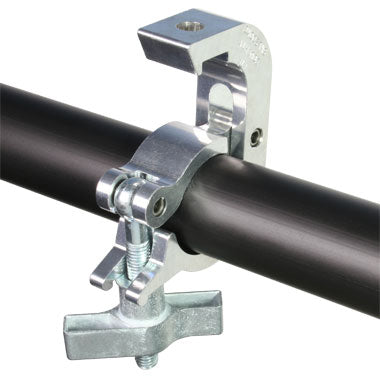

Doughty Trigger Clamp

The Doughty Trigger Clamp is constructed from high tensile Aluminium extrusion, making it not only lightweight but extremely strong, with a safe working load of 200kg.

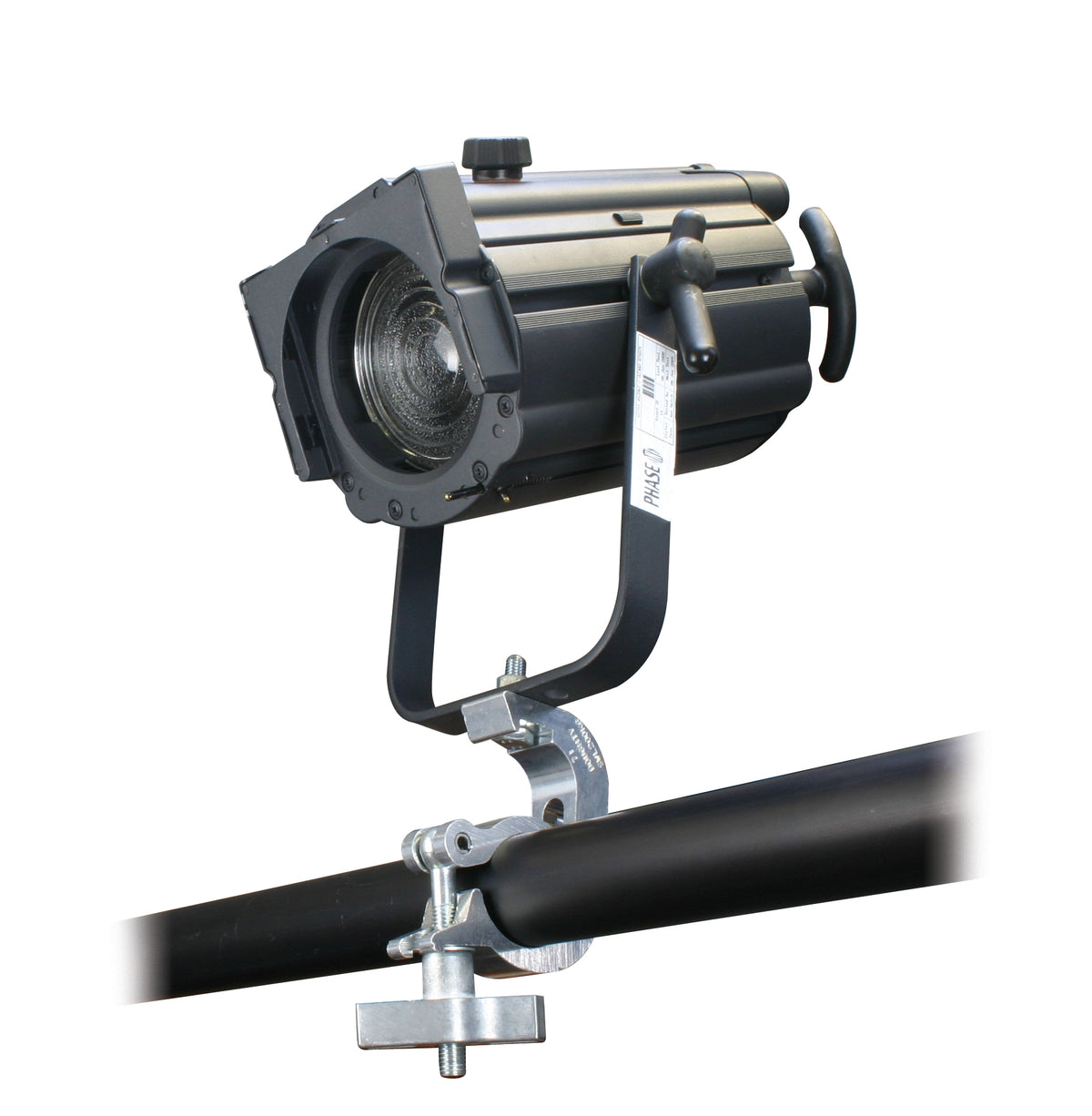

This Doughty Clamp is designed to allow one person to hang heavy luminaires and scanners, ideal for the production without many crew members. The weight of the load being hung becomes its own safety factor by automatically closing the trigger and the bottom half of the clamp.

Trigger Clamp Demonstration

This unique feature allows the luminaires to be easily positioned and securely ‘locked off’ using the large tee ‘easygrip’ handle.

Fast & International Delivery. For any inquiries, please contact us via chat.

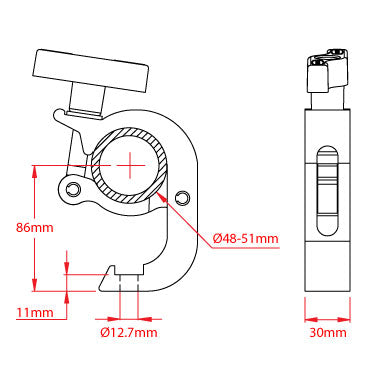

Specifications :

• TÜV Approved
• SWL: 200 Kg
• Tube Diameters: 48 to 51mm
• Width: 30mm
• Fixings: M12 Hole
• Weight: 0.50 Kg
• Material: High tensile aluminium

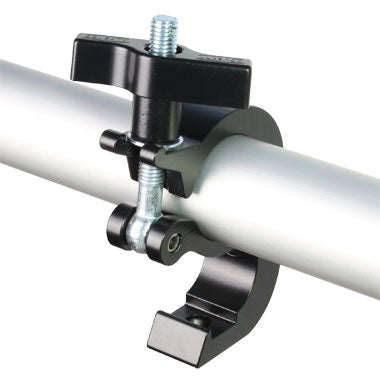

• Finish: Polished aluminium or black powder-coated

Other Trigger Clamps :

• With a wing nut & M12 bolt Fixing
• With an eye for hanging
• With a 16mm lighting pin
• With a 19mm spigot
• With a 29mm receiver
• With a half connector
• Swivel coupler
