Doughty 50mm Trigger Hook Clamp (w/M12 fixings) [Multi-Pack]

T58861-3

Finish
Qty

📦 Need your gear delivered to the UK? Visit ShopMTN.co.uk to enjoy Brexit-proof shopping.

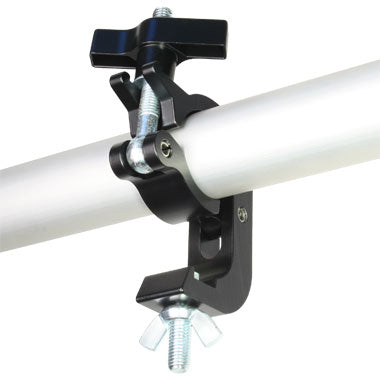

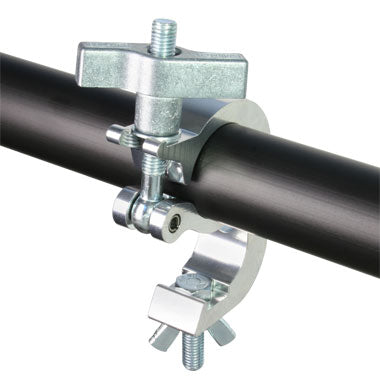

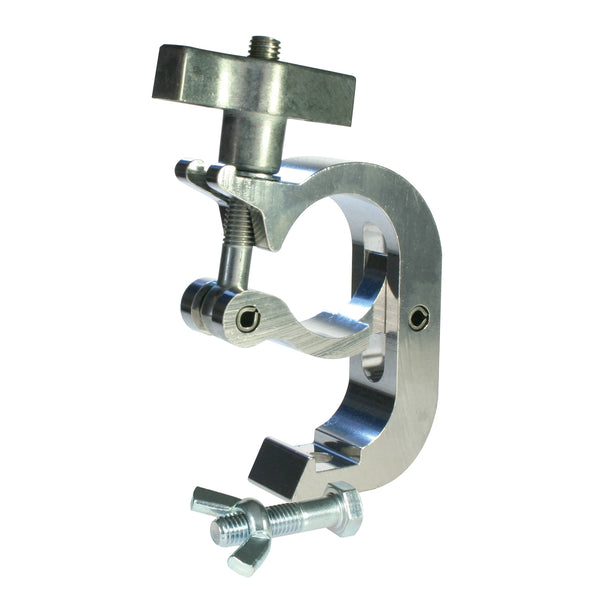

Doughty Trigger Hook Clamp

The Trigger Hook Clamp is supplied with a Wing Nut and M12 Bolt Fixing. This Doughty Clamp is designed to allow one person to hang heavy luminaires and scanners. The weight of the object being hung becomes its own safety factor by automatically closing the trigger and the bottom half of the clamp.

Trigger Clamp Demonstration

This unique feature allows the luminaires to be easily positioned and securely ‘locked off’ using the large easy-grip handle.

Constructed from high tensile Aluminium extrusion, the clamp is lightweight and very strong, with a safe working load of 200kg. It is also available in Black or Polished Aluminium.

For any inquiries, please contact us via chat.

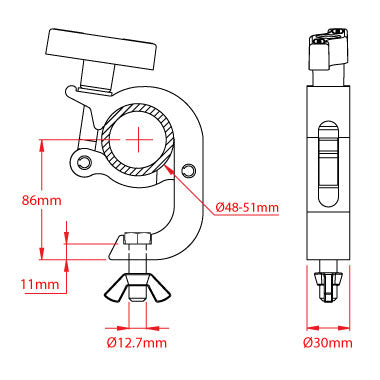

Specifications :

  • SWL: 200 Kg
  • Tube Diameters: 48mm to 51mm
  • Width: 30mm
  • Fixings: M12 x 45 bolt & wing nut
  • Weight: 0.58 Kg
  • Material: High tensile aluminium
  • Finish: Polished aluminium or black powder-coated

Other Trigger Clamps :

Doughty Trigger Clamps
