Doughty Swivel Coupler 48mm Lightweight

T58120

Finish

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

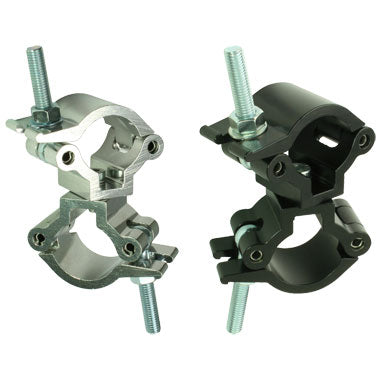

Swivel Coupler - Lightweight

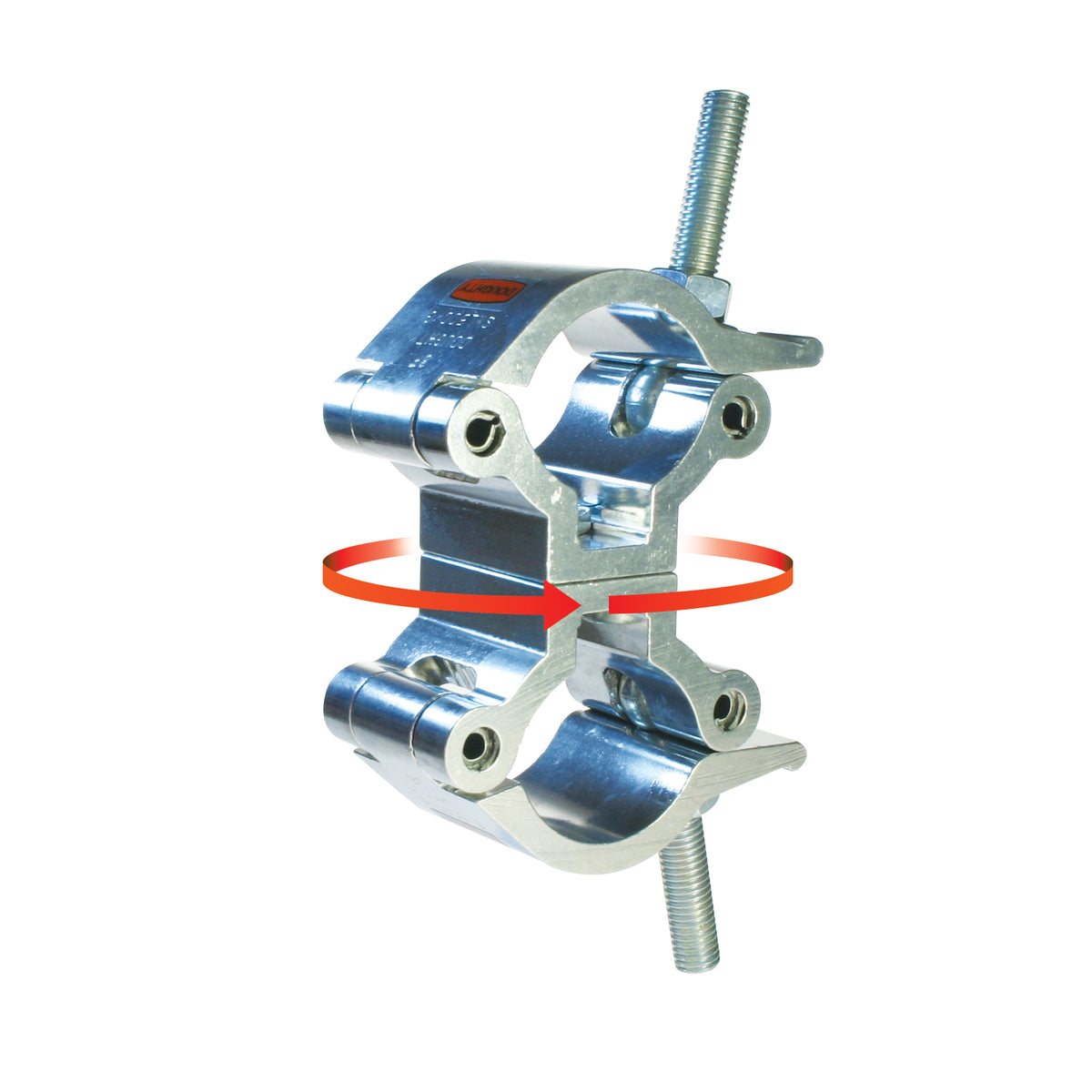

A Swivel Coupler provides a firm and fast fixing between adjacent bars whilst allowing 360 degrees of movement.

Doughty Swivel Coupler (lightweight style) fits 48mm to 51mm diameter tube. Besides the edge of lightweight, it is strong as the clamp is manufactured from high tensile Aluminium Extrusion.

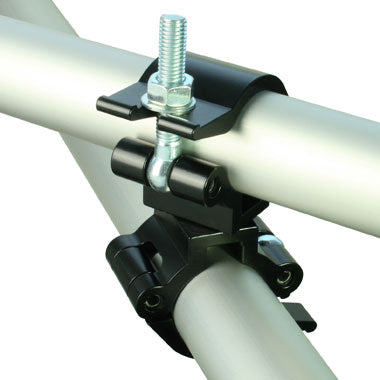

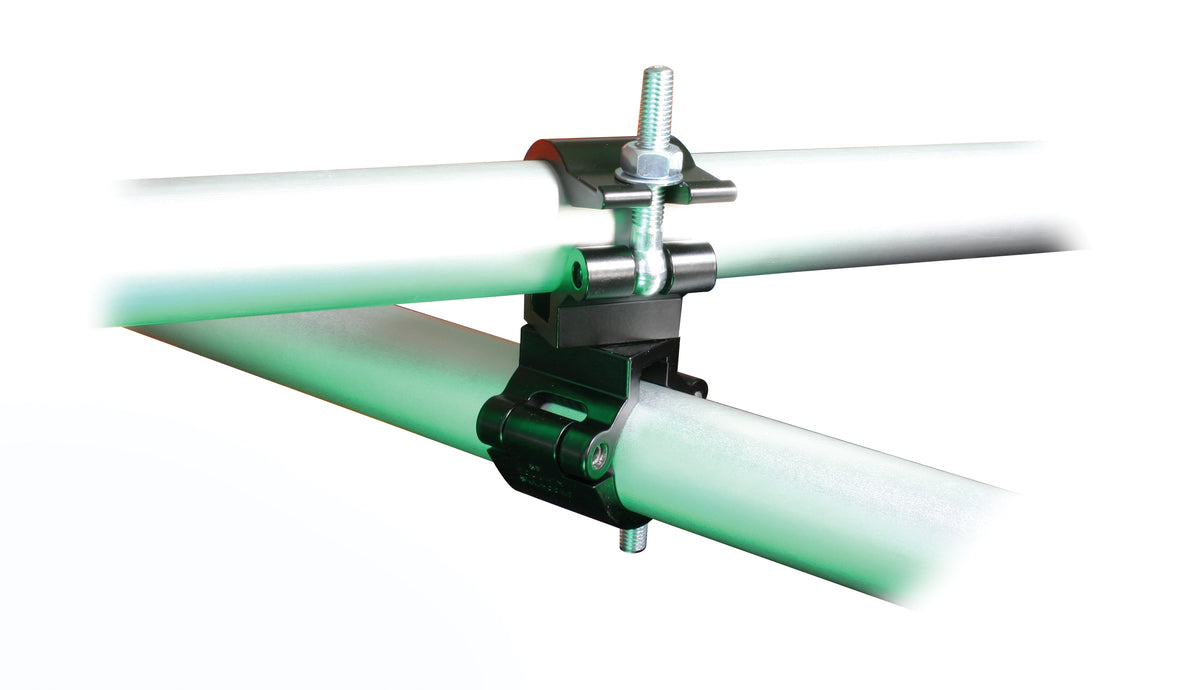

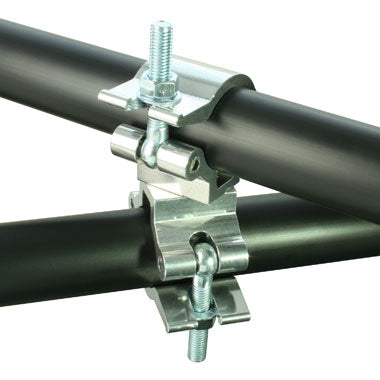

The coupler is specifically designed to attach to round tubes or truss chords and suspend equipment and luminaries. Broadly applicable in the theatre, film, TV and photographic industries.

Lightweight Parallel and 90-degree versions are available. For any inquiries, please contact us via chat.

Spec Sheet - User Manual - Cert

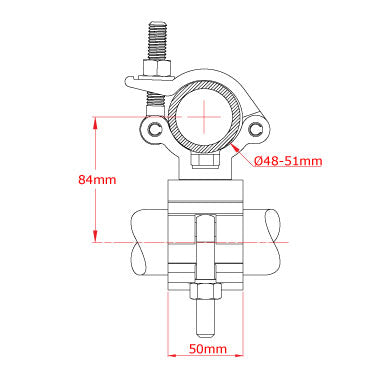

Specifications:

  • SWL: 500kg
  • Tube Diameters: 48 to 51mm
  • Width: 50mm
  • Tube Centres: 84mm
  • Weight: 0.76kg
  • Fixing: Slotted to hold captive an M12 hexagon nut or bolt head
  • Material: Aluminum
  • Finish: Available in Black or Polished Aluminium finish
Visit the full range of Swivel Couples on Doughty Engineering collection.
