Doughty 90 Degree Fixed Coupler 48mm Lightweight

T58110

Finish

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

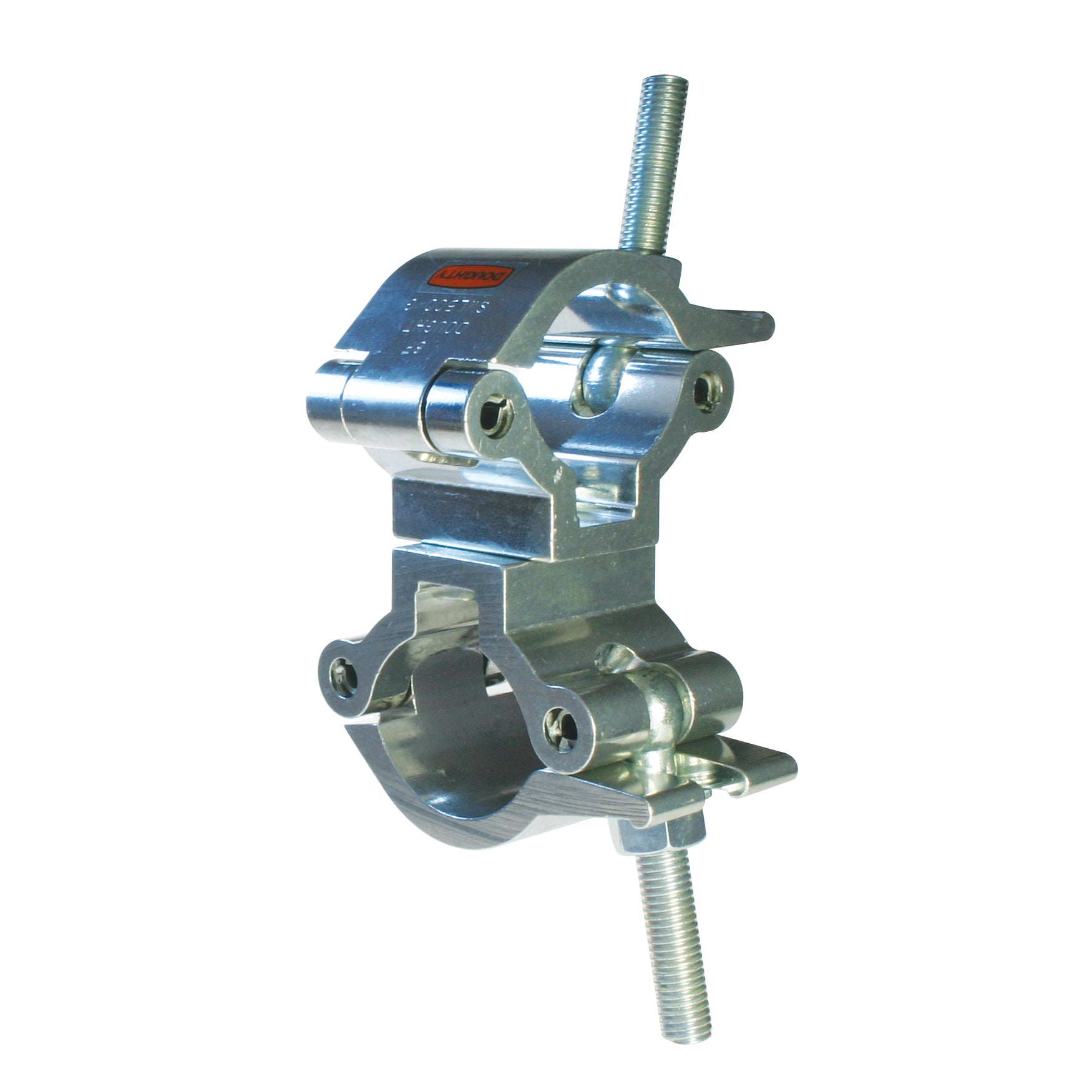

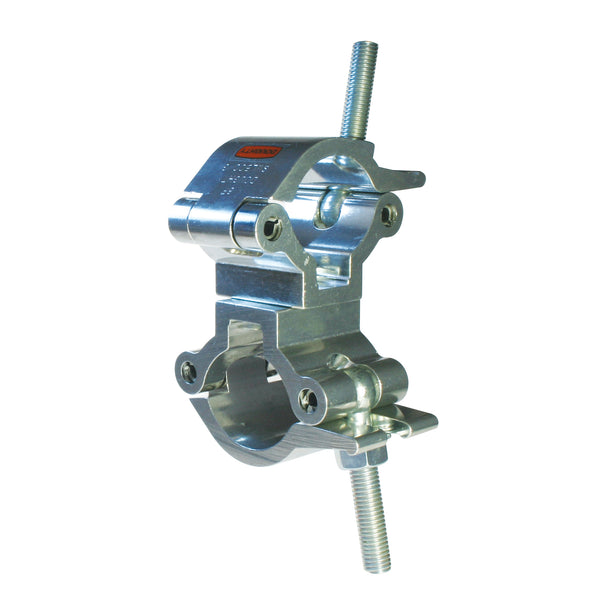

90 Degree Fixed Coupler - Lightweight

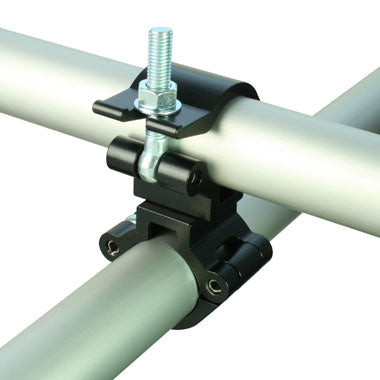

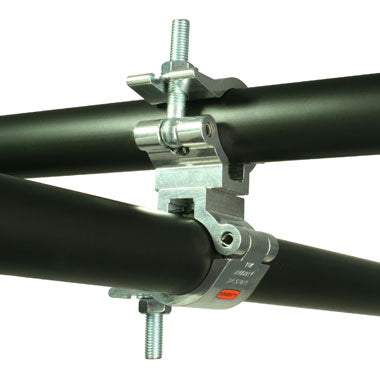

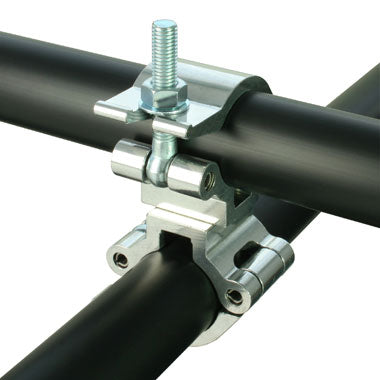

The Lightweight 90 Degree Fixed Coupler weighs 43% less than a standard one, perfectly suitable for lightweight installation. Like the standard coupler, it provides a firm and fast fixing between two perpendicular bars, designed to fit 48mm to 51mm diameter tube.

It is manufactured from high tensile Aluminium Extrusion. The coupler is specifically designed to attach to round tubes or truss chords and suspend equipment and luminaries.

Broadly applicable in the theatre, film, TV and photographic industries. Lightweight Swivel and Parallel versions are available. For any inquiries, please contact us via chat.

Spec Sheet - User Manual - Cert


Specifications:

  • SWL: 500kg

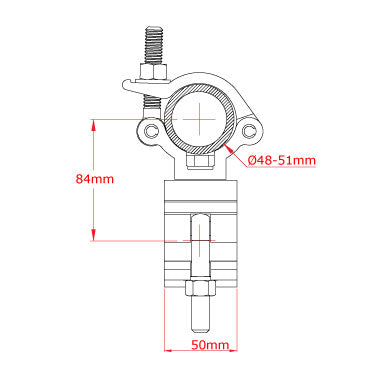

  • Tube Diameters: 48mm to 51mm
  • Width: 50mm
  • Tube Centres: 84mm
  • Weight: 0.76kg
  • Fixing: Slotted to hold captive an M12 hexagon nut or bolt head
  • Material: Aluminum

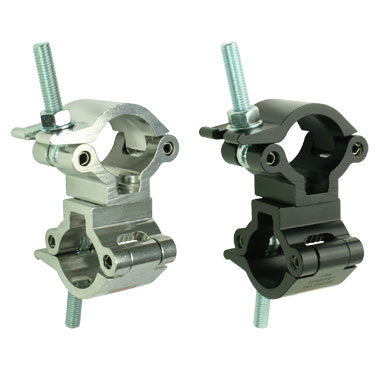

  • Finish: Available in Black or Polished Aluminium finish
