Doughty Parallel Coupler 48mm Lightweight

T58115

New Year New Gear 10% OFF [Code:NEWYEAR10] View All

€37.21 Excl. VAT

⛟ If you need your gear delivered to the UK, please visit ShopMTN.co.uk to enjoy Brexit-proof shopping.

Collections: All Products, Doughty Engineering, Doughty Truss Clamp, Rigging Hardware

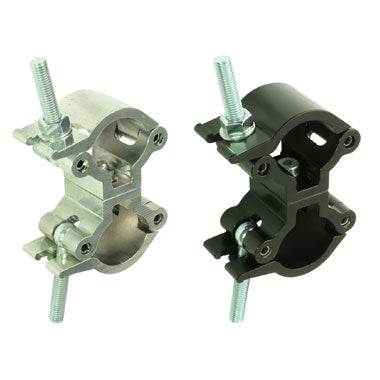

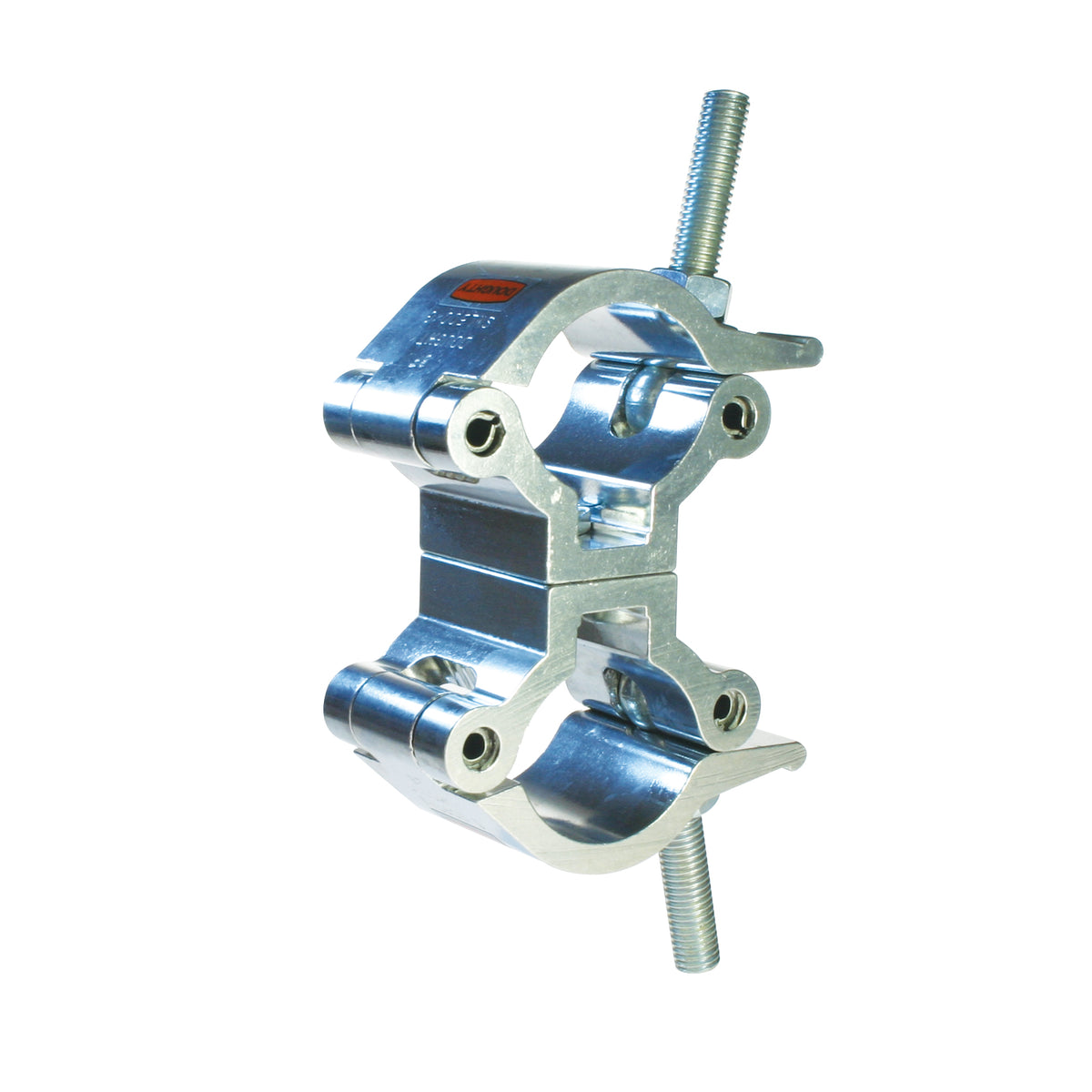

Parallel Coupler - Lightweight

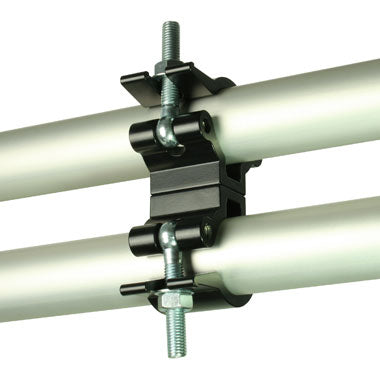

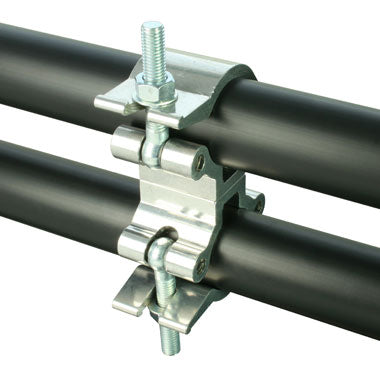

The Lightweight Parallel Coupler provides a firm and fast fixing between two parallel bars, designed to fit 48mm to 51mm diameter tube. It is manufactured from high tensile Aluminium Extrusion. The coupler is specifically designed to attach to round tubes or truss chords and suspend equipment and luminaries. Broadly applicable in the theatre, film, TV and photographic industries. Lightweight Swivel and 90-degree versions are available. For any inquiries, please contact us via chat.

Spec Sheet - User Manual - Cert

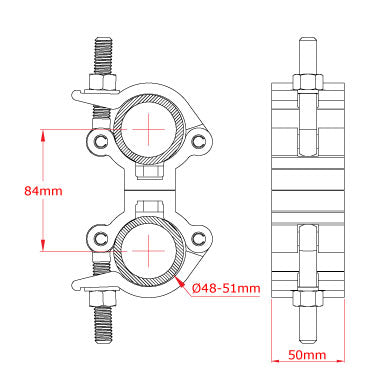

Specifications:

SWL: 500 Kg
Tube Diameters: 48 to 51mm
Width: 50mm
Tube Centres: 84mm
Weight: 0.76kg
Fixing: Slotted to hold captive an M12 hexagon nut or bolt head
Material: Aluminum
Finish: Available in Black or Polished Aluminium finish
