Doughty Swivel Coupler (60mm Slimline Mammoth Clamp)

T57422

Collections: All Products, Doughty Clamp, Doughty Engineering- Rigging, Lifting & Suspension Gear, Rigging Hardware

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

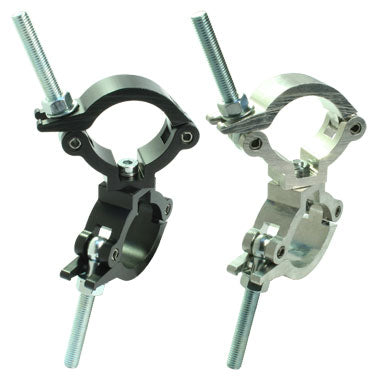

Mammoth Swivel Coupler - Slimline

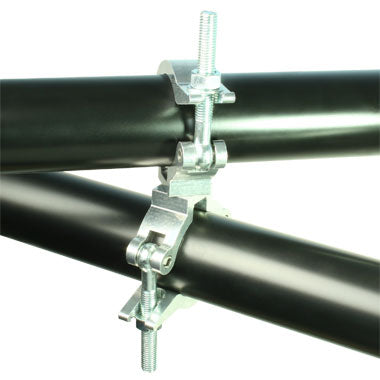

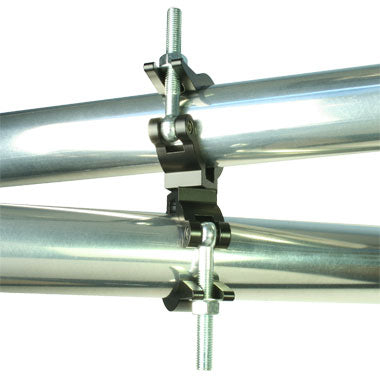

The Mammoth Swivel Coupler provides a firm and fast fixing between adjacent bars whilst allowing 360 degrees of movement. The 30mm width allows it to be used between truss webs etc.

Manufactured from high tensile Aluminium Extrusion, it is ideally used in the theatre, film, TV and photographic industries for attaching round tubes or truss chords. Parallel and 90 degree fixed versions are also available. For any inquiries, please contact us via chat.

Spec Sheet - Cert

Specifications:

SWL: 300 Kg
Tube Diameters: 60mm to 63mm
Width: 30mm
Weight: 0.90 Kg
Material: Aluminum
Finish: Black or Polished Aluminium
