Doughty 90 Degree Fixed Coupler - 48mm Clamp

Product No. T57102

*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.

Please note if you order less than €50 worth of Doughty products, your order will be refunded.

Regular price $66.00 excl. $15.18 VAT $81.18 incl. $15.18 VAT
Unit price  per
FINISH
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

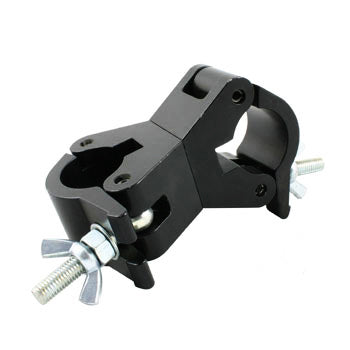

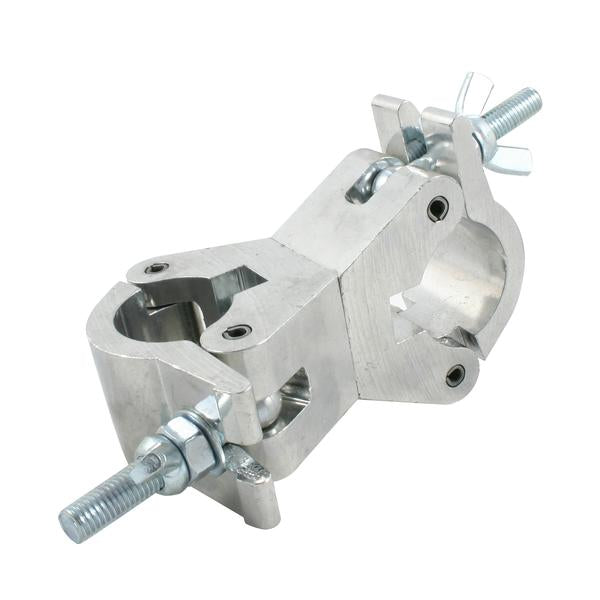

90 Degree Fixed Coupler - 48mm Clamp

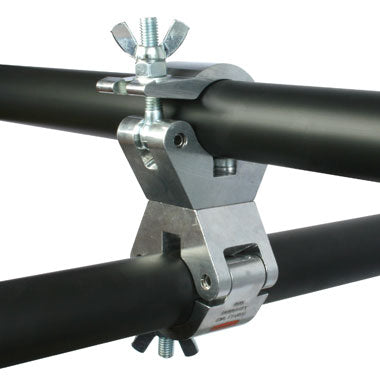

The Doughty 90 Degree Fixed Coupler provides a firm and fast fixing between two perpendicular bars. Manufactured from high tensile Aluminium Extrusion this truss clamp is designed to fit 48mm to 51mm diameter tubes.

The coupler is specifically designed to attach to round tubes or truss chords and to suspend equipment and luminaires. Broadly applicable in the theatre, film, TV and photographic industries.

Swivel and Parallel versions are also available. For any inquiries, please contact us via chat.

Spec Sheet - User Manual - Cert

Specifications

  • SWL: 750 kg
  • Tube Diameters: 48mm to 51mm
  • Width: 50mm
  • Tube Centres: 110mm
  • Weight: 1.33 kg
  • Material: Aluminium
  • Finish: Available in Black or Polished Aluminium.

360° view of 90 Degree Fixed Coupler
