Doughty Swivel Coupler 48mm (6 pieces)

Product No. T57100

*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.

Please note if you order less than €50 worth of Doughty products, your order will be refunded.

Regular price $392.00 excl. $90.16 VAT $482.16 incl. $90.16 VAT
Unit price  per
FINISH
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

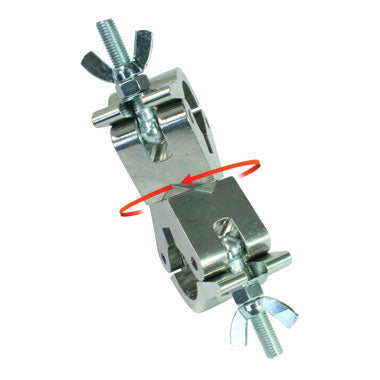

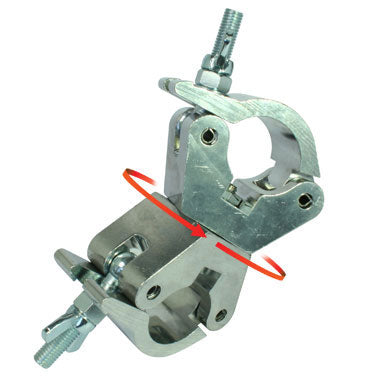

Doughty Swivel Coupler

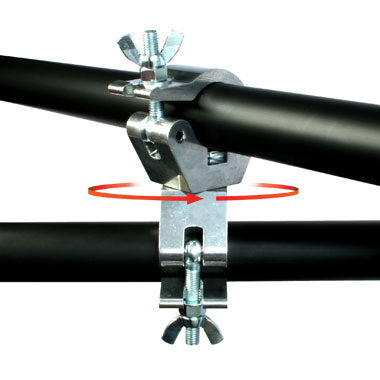

The Standard Swivel Coupler provides a fast and firm fixing between adjacent bars and allows 360 degrees of movement.

Doughty T57100 / T57110 fits 48mm to 51mm diameter tube and is manufactured from solid high tensile aluminium. It is to attach to round tubes or truss chords and suspend equipment and luminaries. Broadly applicable in the theatre, film, TV and photographic industries.

The Swivel Coupler with stainless steel fasteners (ST57100) is also available, making it a perfect option for outdoor uses while minimising any galvanic corrosion

Also, parallel and 90 degree fixed versions are available. For any inquiries, please contact us via chat.

Spec Sheet - Cert

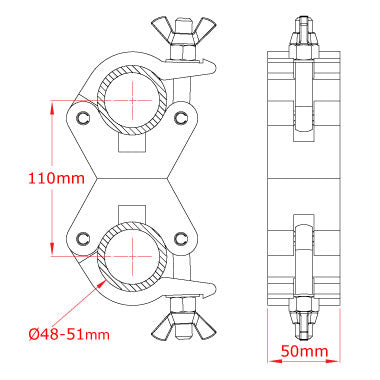

Features & Specifications:

  • SWL: 750kg
  • Tube Diameters: 48 to 51mm
  • Width: 50mm
  • Tube Centres: 110mm
  • Weight: 1.33kg
  • Finish: Available in black or polished aluminum.

We also supply Swivel Couplers with different features and functions.
