Doughty Twenty Clamp - TÜV Approved (32 pieces)

Product No. T58400

*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.

Please note if you order less than €50 worth of Doughty products, your order will be refunded.

Regular price €471.53 excl. €108.45 VAT €579.98 incl. €108.45 VAT
Unit price  per
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
Product details

Doughty Twenty Clamp T58400

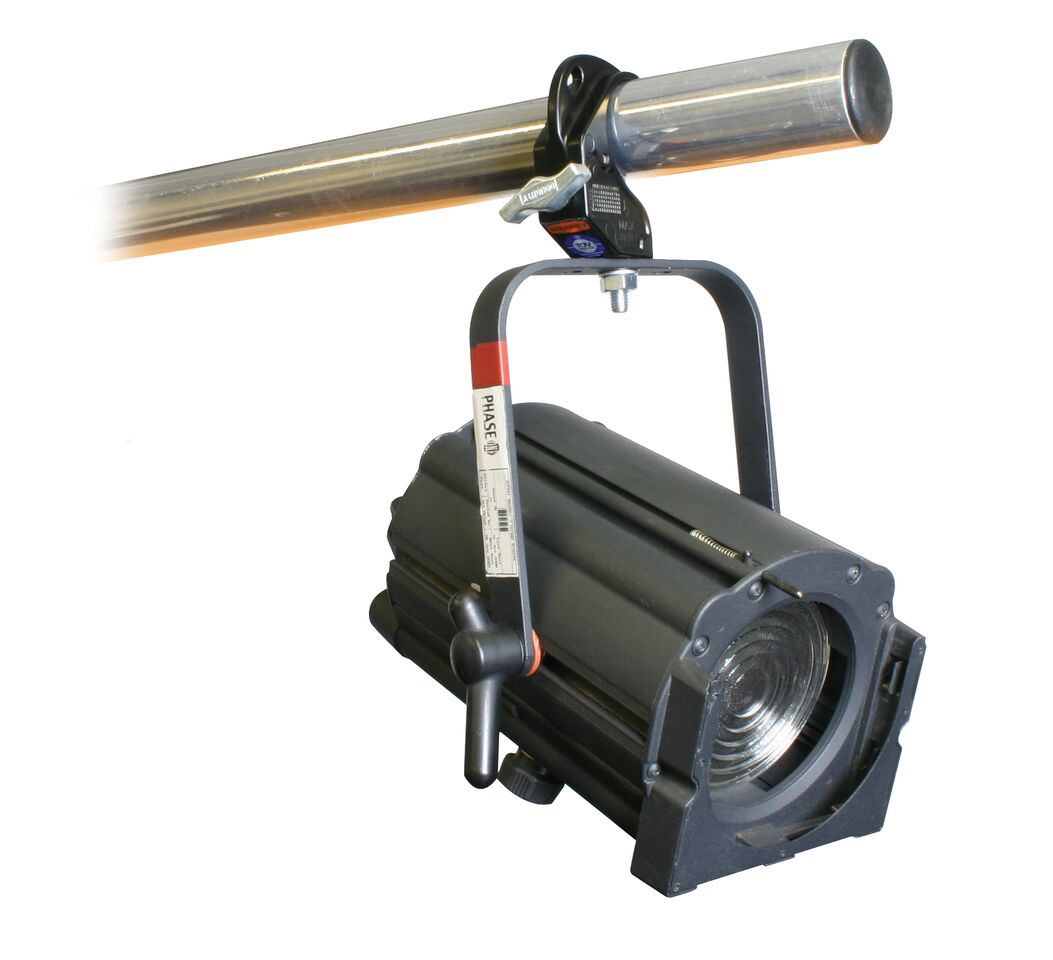

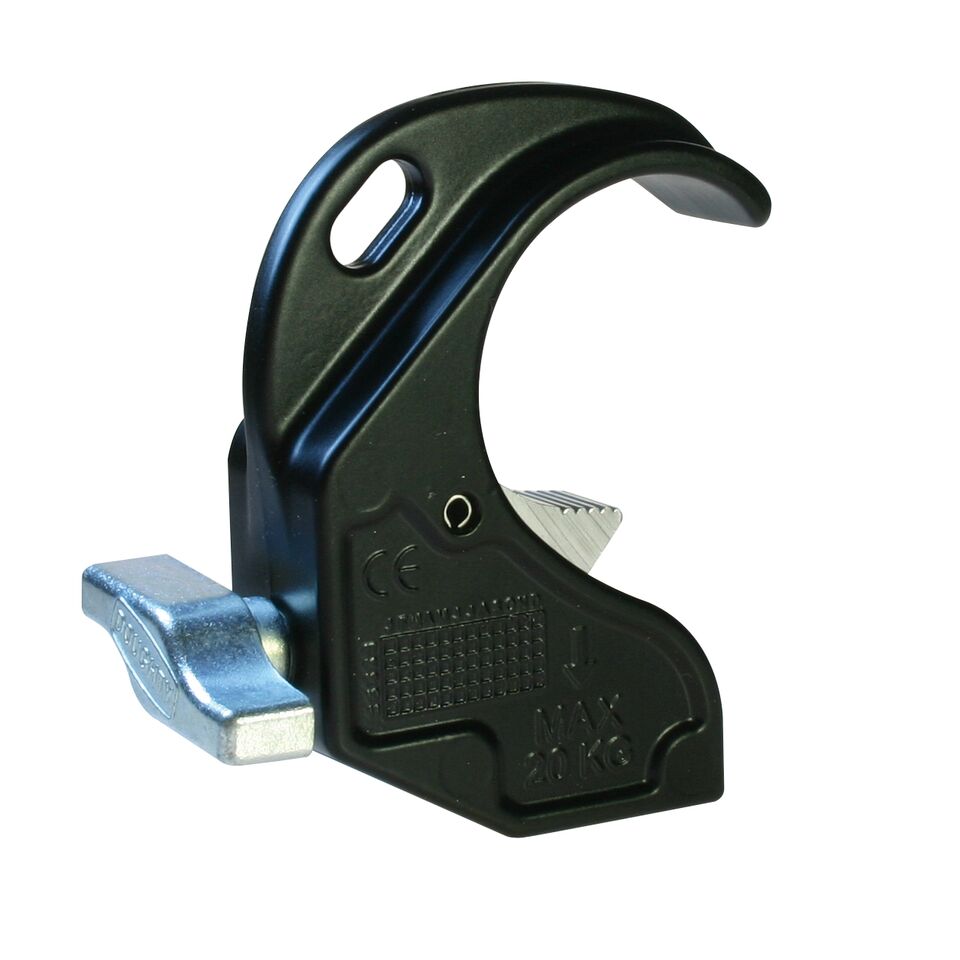

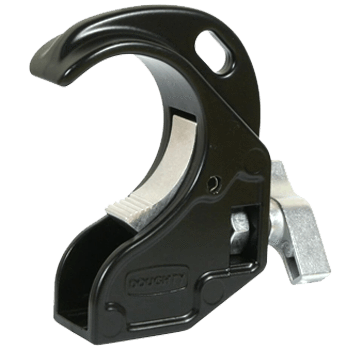

Manufactured from pressure die-cast aluminum, this Doughty Clamp has been designed to eliminate truss damage usually associated with steel hook clamps.

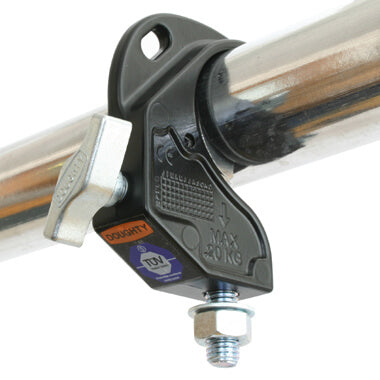

This stylish compact clamp has a WLL of 20kg and can be secured to tubes between 48mm and 51mm diameter with ONLY two turns of the Doughty knob.

Since its launch, Doughty T58400 Twenty Clamp has received an overwhelming welcome from end-users and distributors alike. In 2018, Doughty Fifty Clamp with a safe working load of 50 kg was launched after Twenty clamp's success, providing the solution to more challenging lighting tasks.

As with all major Doughty products, Doughty Twenty Clamp carries full CE marking and TÜV approval. For any other inquiries, please contact us via chat.

Spec Sheet - User Manual - Press Release: ETnows & LSI

Specifications :

Tube Diameter 48mm-51mm
Width 28mm
Overall Height 100mm
Fixing M10 / M12 Captive Bolt and Nut (M10 supplied)
Weight 0.28 KG
Material Aluminium
Finish Powder Painted

Doughty Clamp

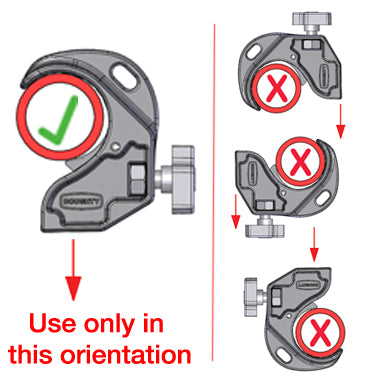

Note: This product is Design Registered. The Doughty T58400 twenty clamp requires assembly before use. Please read the user manual carefully

Customer Reviews

Based on 2 reviews
Should have been invented earlier

Time is money when setting the stage. One this Doughty clamp saves us 20 seconds. Two clamps 40 seconds etc.. I use it for hanging LED lamps, moving heads and scanners..

It's pretty safe to say this is the best we have ever taken into stock! Of course, a heavy-duty one with higher load capacity would be even better. Who doesn't want that in any stage setup!

Rig Rig Rig
Quickest and Easiest Rig

It's the best solution to rigging a lamp at challenging angles! As said, only 2 turns to hold the lamp!
Much faster easier to install and remove fixtures than any clamps I've ever used!

I sometimes rig lamps in situations where space and weight are the concerns. This Doughty Clamp ideally addresses those concerns.
But, it's only for lightweight fixtures.
