Doughty Super Lightweight 48mm Swivel Coupler

Swivel Coupler - Super Lightweight

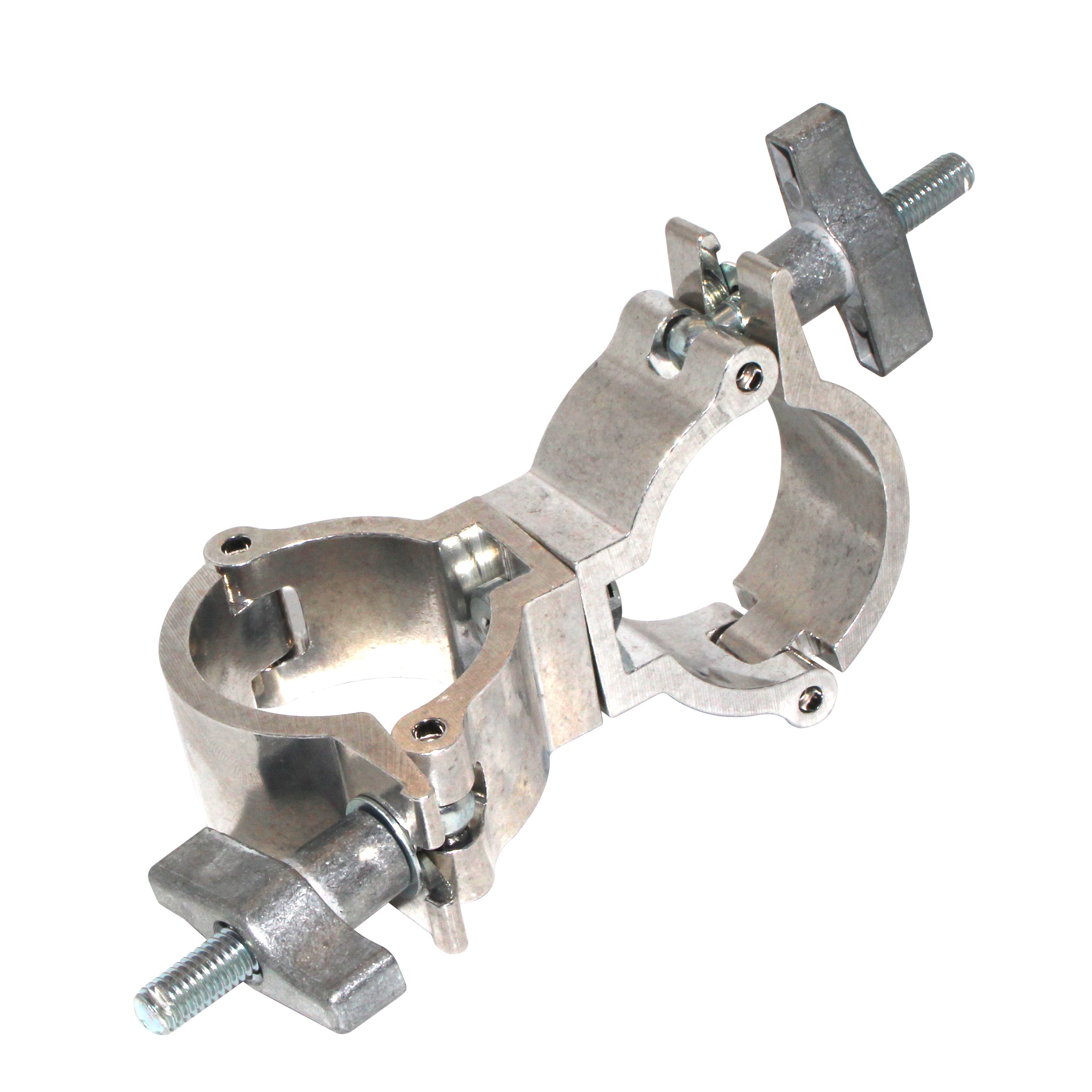

These super lightweight swivel clamps have a slimline profile of 30mm. They provide a firm and fast fixing between adjacent bars whilst allowing 360 degrees of movement.

The super lightweight half coupler is an upgraded version with very positive feedback on the changes that have been made after listening to many customers, solving the old problem which the clamp knob fell to the ground when working at height.

"We listened to a lot of our customers who said that when working at height it is often frustrating when the knob of the clamp spins off and falls to the ground. We've made some changes to the eyebolt and made the knob captive so that it can no longer fall off. We have also increased the SWL to 100kg from 75kg which we hope will please everyone who is already a loyal user of the clamp." - Mark Chorley, Design Engineer at Doughty Engineering

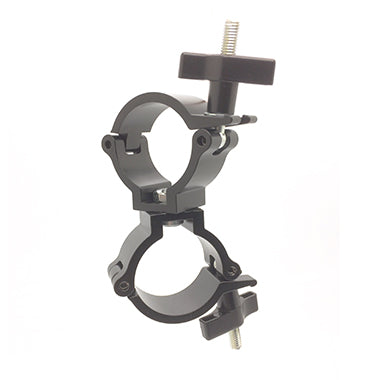

Manufactured from high tensile Aluminium Extrusion, they are ideally used in the theatre, film, TV and photographic industries. Available in Black or Polished Aluminium.

For any inquiries, please contact us via chat.

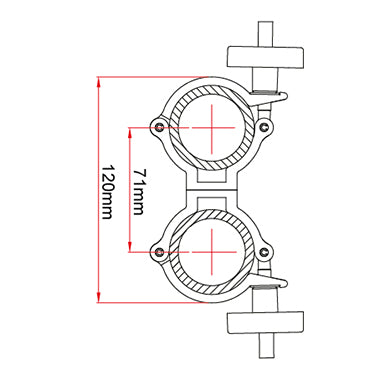

Specifications:

• SWL: 100 Kg
• Tube Diameters: 48mm to 51mm
• Width: 30mm
• Tube Centres: 72mm
• Weight: 0.40 Kg
• Material: Aluminium
• Finish: Black or Polished Aluminium
