Doughty Swivel Coupler (60mm Mammoth Clamp)

T57420

Collections: All Products, Doughty Clamp, Doughty Engineering- Rigging, Lifting & Suspension Gear, Rigging Hardware

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

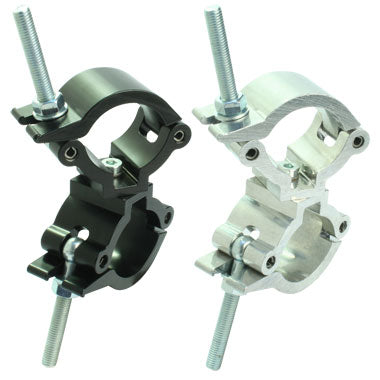

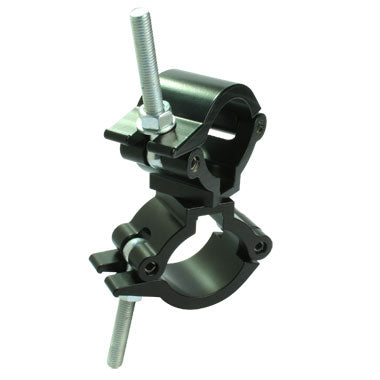

Swivel Coupler - Mammoth Clamp

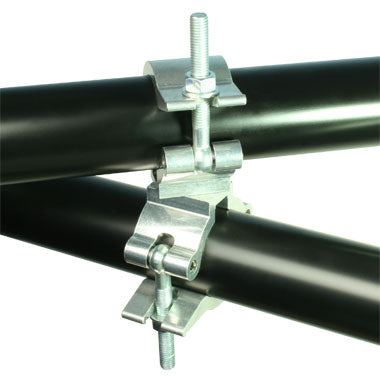

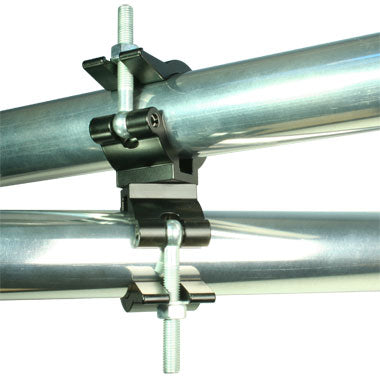

The Swivel Coupler is constructed from high tensile Aluminium Extrusion. It provides a firm and quick fixing between adjacent bars whilst allowing 360 degrees of movement.

Unlike the standard ones, this large swivel coupler can fit the wide tubes with diameter 60 - 63mm. Broadly used in the theatre, film, TV and photographic industries. Parallel and 90 degree fixed versions are available.

For any inquiries, please contact us via chat.

User Manual - Spec Sheet - Cert

Specifications:

SWL: 500 Kg
Tube Diameters: 60 to 63mm
Width: 50mm
Tube Centres: 95mm
Weight: 0.90 Kg
Material: High tensile aluminium
Finish: Available in polished aluminium or black powder paint
