Doughty Parallel Coupler (60mm Mammoth Clamp)
€73.09incl. VAT
Incl. VAT. Shipping calculated at checkout.
- 500 kg WLL. Firm and quick fixing between two parallel bars.
- For 60 to 63 mm tubes. Mammoth size coupler with 100 mm tube centres.
- TÜV approved. High tensile aluminium with a 5:1 safety factor.

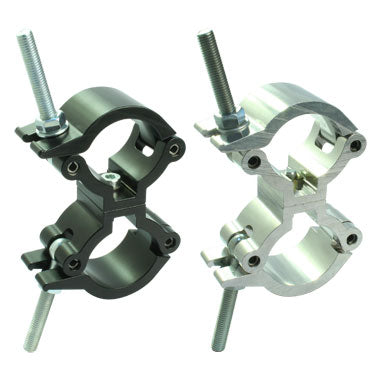

- Two finishes. Polished aluminium (T57440) or black powder paint (T57441).
Finish:
Aluminum
Accepted payment methods
Please enter correct zip code
shipping

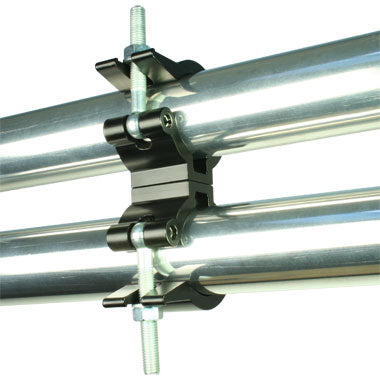

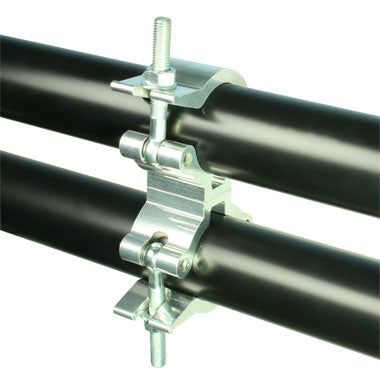

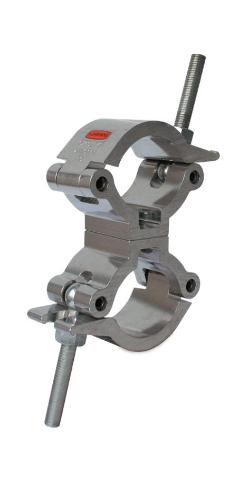

Doughty Mammoth Parallel Coupler
The Mammoth Parallel Coupler provides a firm and quick fixing between two parallel bars. Broadly used in the theatre, film, TV and photographic industries. Swivel and 90 degree fixed versions are available. For any inquiries, please contact us via chat.
Specifications:
- WLL: 500kg
- Part Nos: T57440 (polished), T57441 (black)
- Tube Diameters: 60 to 63mm
- Width: 50mm
- Tube Centres: 100mm
- Weight: 0.90kg
- Material: High tensile aluminium (AW6082 T6)
- Max. Tightening Torque: 30Nm
- Safety Factor: 5:1
- Approval: TÜV approved
- Finish: Available in polished aluminium or black powder paint
