Doughty 63mm Mammoth Hook Clamp w/ Bolt & Wing Nut
€36.19incl. VAT
Incl. VAT. Shipping calculated at checkout.
- For large luminaires. Hook clamp for 60 to 63 mm tubes.
- 500 kg WLL. TÜV approved with a 5:1 safety factor.
- Fixing kit included. Supplied with a bolt and wing nut.
- High tensile aluminium extrusion. Polished aluminium (T57410) or black powder paint (T57411).
Finish:
Aluminum
Accepted payment methods
Please enter correct zip code
shipping

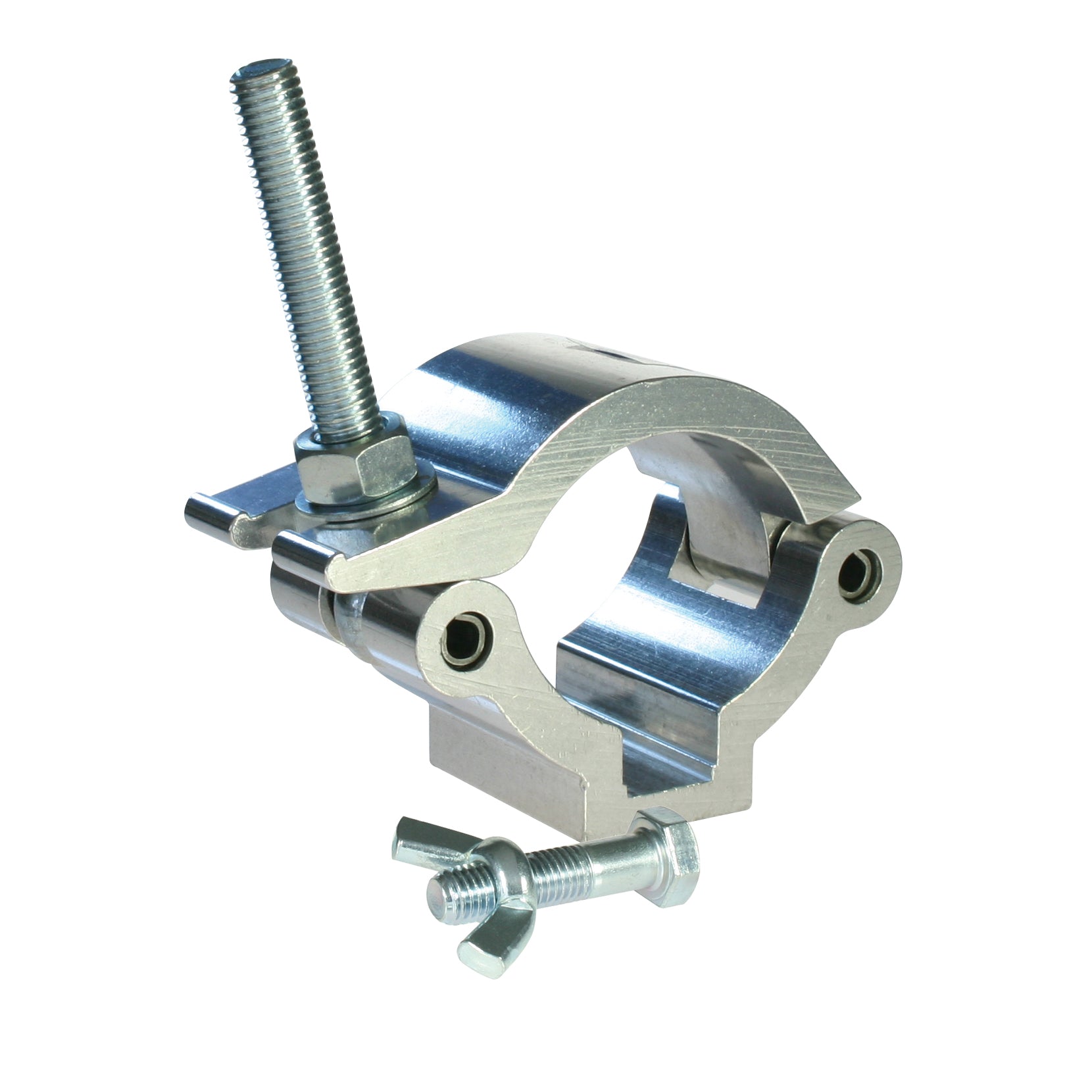

Doughty Mammoth Hook Clamp
The Mammoth Hook Clamp Coupler is a high tensile extruded half coupler supplied with a bolt and wing nut fixing kit. Ideally suited for use with large luminaires in the theatre, film, TV and photographic industries. Manufactured from high tensile Aluminium Extrusion. For any inquiries, please contact us via chat.
Spec Sheet - User Manual - Cert
Specifications:
- WLL: 500kg
- Part Nos: T57410 (polished), T57411 (black)
- Tube Diameters: 60 to 63mm
- Width: 50mm
- Fixings: Supplied with bolt & wing nut (current Doughty datasheet: M10 x 35 bolt)
- Weight: 0.51kg
- Material: High tensile aluminium (AW6082 T6)
- Max. Tightening Torque: 30Nm
- Safety Factor: 5:1
- Approval: TÜV approved
- Finish: Available in polished aluminium or black powder paint
