Doughty Mammoth Swivel Coupler 60mm & 48mm
€67.48incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Joins different tube sizes. Fits 48 to 51 mm and 60 to 63 mm tubes or truss chords.

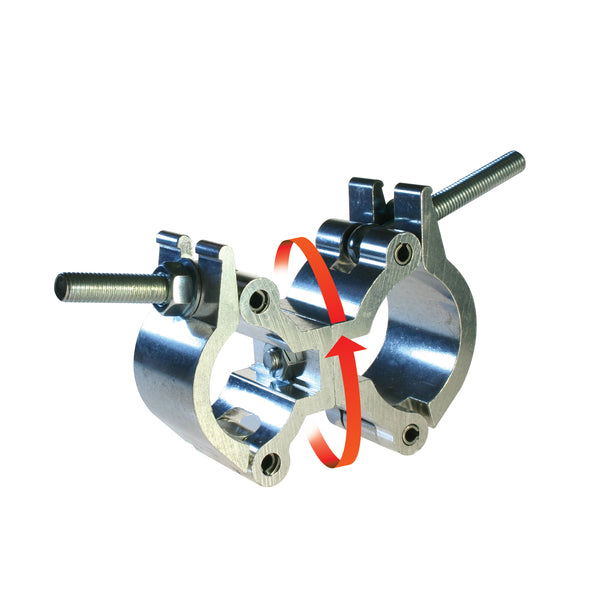

- 360 degrees of movement. Firm fixing between different size bars.
- 500 kg WLL. TÜV approved with a 5:1 safety factor.

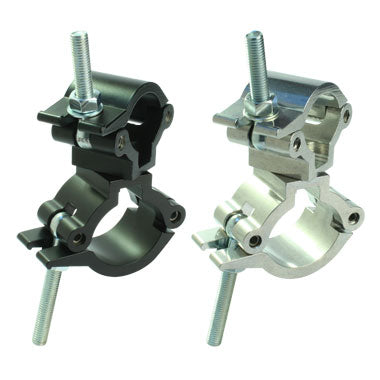

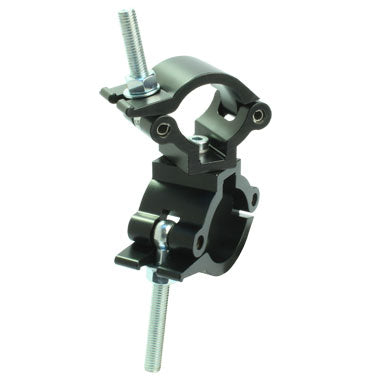

- Two finishes. Polished aluminium (T57425) or black powder paint (T57426).
Finish:
Aluminum
Accepted payment methods
Please enter correct zip code
shipping
Doughty Mammoth Swivel Coupler

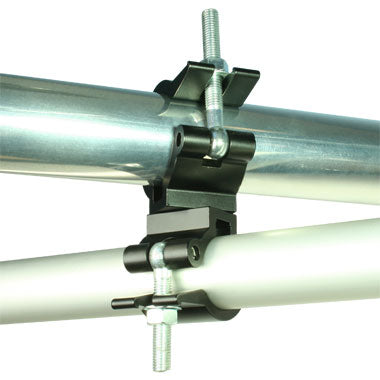

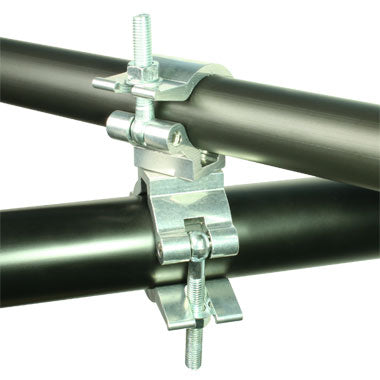

The Mammoth Coupler provides a firm fixing between different size bars whilst allowing 360 degrees of movement. Manufactured from high tensile Aluminium Extrusion. This rigging gear is designed to fit 48 - 51mm & 60 - 63mm diameter tubes or truss chords in the theatre, film, TV and photographic industries. For any inquiries, please contact us via chat.
Specifications:
- WLL: 500kg
- Part Nos: T57425 (polished), T57426 (black)
- Tube Diameters: 60 to 63mm & 48 – 51mm
- Width: 50mm
- Weight: 0.90kg
- Material: High tensile aluminium (AW6082 T6)
- Max. Tightening Torque: 30Nm
- Safety Factor: 5:1
- Approval: TÜV approved
- Finish: Available in polished aluminium or black powder paint
