Doughty Hanging Truss Adapter - Heavy Duty
€145.74incl. VAT
Incl. VAT. Shipping calculated at checkout.
- 500 kg WLL. Suspension point is an M12 eye nut rated to 500 kg, safety factor 5:1.
- Chain hoist suspension. Designed to suspend triangular and square truss sections.
- Hanging ring and two slimline couplers. High tensile 6082-T6 aluminium couplers on a polished S275 mild steel plate.
- Two sizes. T55710 for 150 to 250 mm centres and T55715 for 200 to 400 mm centres.
Truss Compatibility:
150-250mm Centres
Accepted payment methods
Please enter correct zip code
shipping

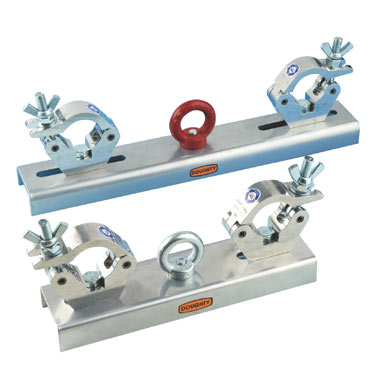

Heavy Duty Hanging Truss Adaptors - Fit ⌀48mm - 51mm Tube - Doughty
Truss Adaptors enable triangular and square truss sections to be mounted to any of the Doughty winch stand range. This system provides the means to lift truss sections into place safely. The range of Hanging Truss Adaptors is supplied with hanging ring and two slimline half couplers. Designed to suspend truss sections with a chain hoist. For Heavy Duty Hanging Truss Adaptors, the suspension point is an M12 eye nut rated to 500kg. Two sizes are available. Standard adaptors are available too. For any inquiries, please contact us via chat.
Spec Sheet - User Manual - Cert
Features:
- Provides a safe and secure means of lifting truss
- Adjustable to suit most truss sizes
- With two high tensile 6082-T6 aluminium couplers
- Polished finish

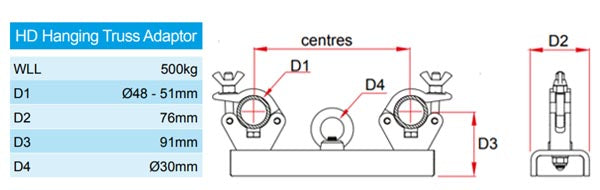

Specification:
- WLL: 500kg (safety factor 5:1)
- Tube diameter: 48-51mm
-
Truss Adaptors Sizes:
T55710 - 150 to 250mm ctrs
T55715 - 200 to 400mm ctrs - Width: 76mm
- Material: S275 mild steel
- Hanging Ring: 44mm inside diameter
- Max. Tightening Torque: 30Nm
