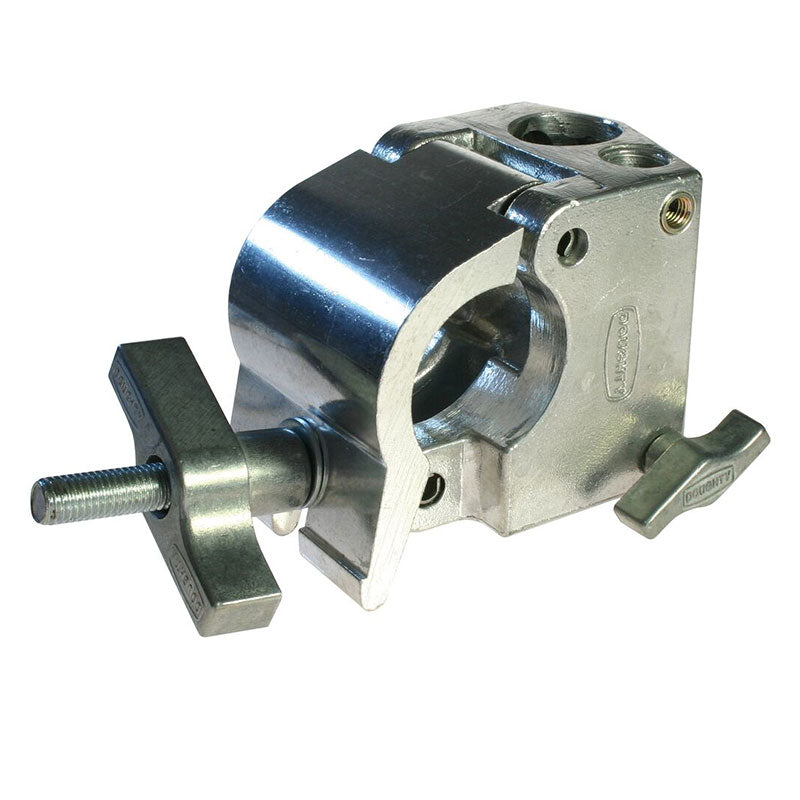

Doughty Barrel Socket Clamp

Doughty Engineering |
SKU: G1115
€76.65incl. VAT

Incl. VAT. Shipping calculated at checkout.

  • SWL 250 kg. Fixes lighting instruments and fixtures to horizontal or vertical bars.
  • 29mm and 16mm receivers. Accepts fixtures fitted with a 29mm spigot or 16mm pin.
  • Fits 48mm to 51mm tube. Supplied with a lynch pin for secondary locking; hand tighten only.
  • Two finishes. Polished silver (G1115) or powder painted black (G111501).
View Full Description Technical Data
Finish: Aluminum

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Please select country
Please enter correct zip code

shipping

Test heading

Doughty Barrel Socket Clamp

The Barrel Socket Clamp enables the easy fixing of lighting instruments and fixtures fitted with a 29mm spigot or 16mm pin to horizontal or vertical bars. Supplied with lynch pin for secondary locking. For any inquiries, please contact us via chat.

Features:

  • SWL: 250kg
  • Tube Diameters: 48mm to 51mm
  • Fixings: 29mm & 16mm Receiver
  • Material: Aluminium body, grade 8.8 fixings, stainless steel roll pins
  • Tightening: Hand tighten only
  • Weight: 0.93kg
  • Available polished silver (G1115) or powder painted black (G111501)
