Doughty 90 Degree Fixed Coupler (32mm Atom Clamp) [Multi-Pack]



📦 Need your gear delivered to the UK? Visit to enjoy Brexit-proof shopping.

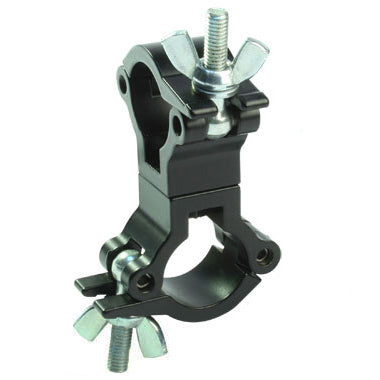

90 Degree Fixed Coupler - 32mm Atom Clamp

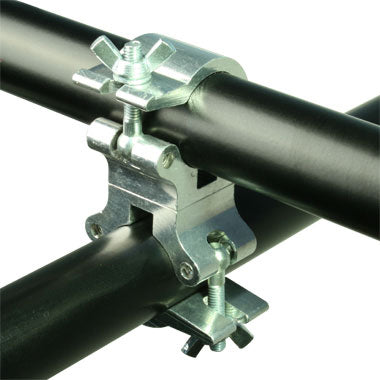

The Doughty Atom 90 Degree Fixed Coupler provides a firm and quick fixing between two perpendicular bars. Manufactured from high tensile Aluminium Extrusion this truss clamp is designed to fit 32mm diameter tubes.The coupler is specifically designed to attach to round tubes or truss chords and to suspend equipment and luminaries. Broadly applicable in the theatre, film, TV and photographic industries.

Swivel and Parallel versions are also available. For any inquiries, please contact us via chat.

Spec Sheet User Manual & Cert


  • SWL: 100 kg
  • Width: 30 mm
  • Tube Diameter: 32 mm
  • Tube Centres: 55 mm
  • More sizes available to fit various diameter tubes
  • Available in both aluminium and black
