Steerman Hydraulic Toe Jacks HTJ 3000-10,000KG
- 3, 6 or 10 tonne capacity. Lifting capacity available on both the head and the toe.
- Extremely low toe entry height. Ideal for working in very confined spaces.
- 220 degree operating lever. Plus a carry handle for ease of handling.
- Chrome-plated ram and pump piston. For lifting and positioning heavy machinery and fabricated steel structures.
- Pairs with Steerman skates. Ideal for use with a set of Steerman skates.
Items:
3T
Accepted payment methods
Please enter correct zip code
shipping
Steerman Hydraulic Toe Jacks HTJ 3000-10,000KG
Steerman hydraulic toe jacks are ideal when working in very confined spaces. Typical uses include lifting and positioning of heavy machinery, fabricated steel structures, and general engineering applications. These jacks are also ideal for use with a set of Steerman skates.
FEATURES
- Lifting capacity of 3, 6 or 10 tonne, on the head and toe.
- Extremely low entry height of the toe.
- Operating lever rotates through 220 degrees.
- Carry handle for ease of handling.
- Chrome-plated ram and pump piston

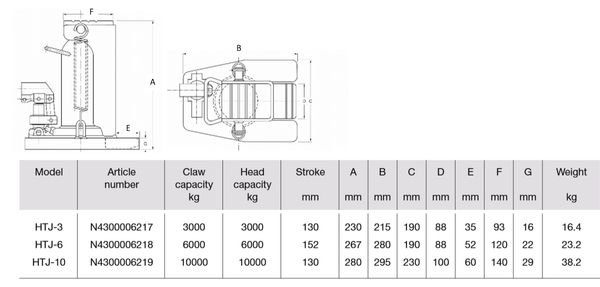

SPECIFICATIONS
- Capacity (head and toe): 3 t (HTJ-3), 6 t (HTJ-6), 10 t (HTJ-10)
- Minimum toe height: 16 mm (HTJ-3), 22 mm (HTJ-6), 29 mm (HTJ-10)
