Yale Cordless Battery Power Pump PYB
Incl. VAT. Shipping calculated at checkout.
- Cordless operation. Works where there is no power source, using a standard HiKOKI 18 V Li-ion battery and charger.
- 700 bar, two-stage. Automatic switch-over between stages, 0.7 l/min in the 1st and 0.06 l/min in the 2nd stage.
- One-hand operation. Push-button integrated into the ergonomic handle, with a protective cover against inadvertent start.
- Use in any position. Rubber tank bladder and lightweight aluminium reservoir of 600 or 1000 cm3.
- Ready to work. Supplied oil-filled with female coupler half CFY-1 and shoulder belt; battery, charger and gauge ordered separately.
Accepted payment methods
shipping

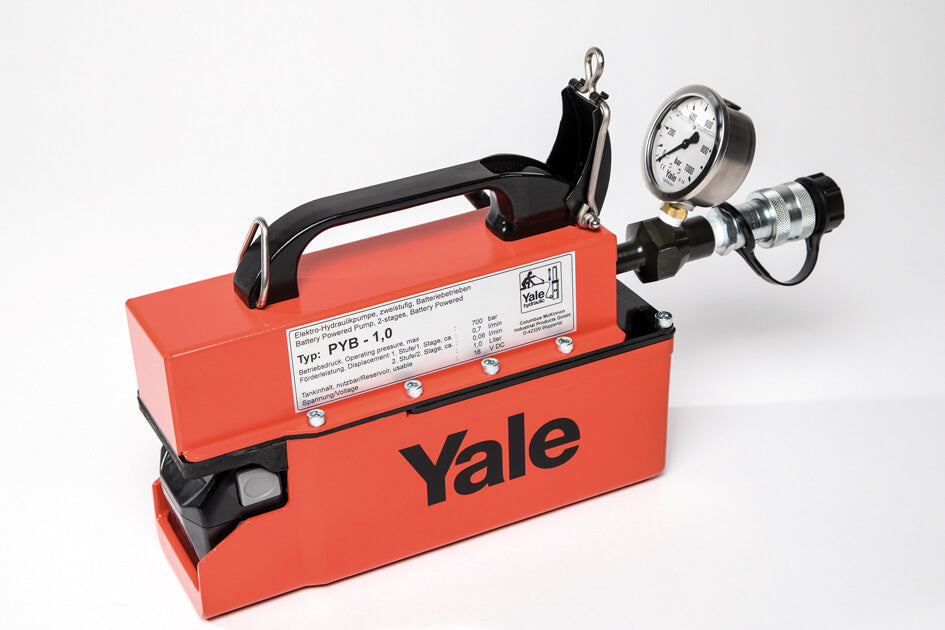

Yale Cordless Battery Power Pump PYB
The Yale PYB cordless battery power pump provides a flexible addition to the Yale hydraulic programme.
This extremely compact and lightweight power pack gives the user the freedom to operate in areas where there is no power source, increasing productivity over a conventional hand pump and all at the push of a button.
The power pack utilises a standard HiKOKI Li-ion battery and charger to maximise operation. Ideal for a range of applications using small to mid-size single-acting cylinders, hydraulic spreaders, lifting wedges, nut splitters and much more.
Note: pressure gauge not included. Battery and charger are not part of the standard scope of delivery and must be ordered separately (battery PYB-RCB, quick-charger PYB-LG230-12).
FEATURES & BENEFITS
- Operating pressure max. 700 bar.
- One-Hand-Operation. Push-button integrated into ergonomic handle.
- Two-stage operation with automatic switch-over.
- With internal pressure relief valve.
- Reservoir made from aluminium, extreme low weight.
- Protective cover to prevent inadvertent switch on of pump.
- Rubber tank bladder enables the pump to be used in any position.
SCOPE OF DELIVERY
- Electric power pack, battery driven.
- Oil-filled ready for work.
- Female coupler half CFY-1.
- Shoulder belt.
SPECIFICATIONS
| Model | Displacement | Reservoir volume | Displacement 1st stage | Displacement 2nd stage | Weight w/o battery | Operational weight c/w battery |
|---|---|---|---|---|---|---|
| PYB-0.6 | Two-stage | 600 cm³ | 0.7 l/min | 0.06 l/min | 4.8 kg | 5.5 kg |
| PYB-1.0 | Two-stage | 1000 cm³ | 0.7 l/min | 0.06 l/min | 5.7 kg | 6.4 kg |
ACCESSORIES
- Battery PYB-RCB: standard HiKOKI Li-ion battery, 18 V, weight 0.7 kg.
- Quick-charger PYB-LG230-12: 230 V and 12 V (car plug socket included).
- Optional pressure gauge set GYA-63 (gauge GGY 632, Ø 63 mm, 0 - 1000 bar, with adaptor).
