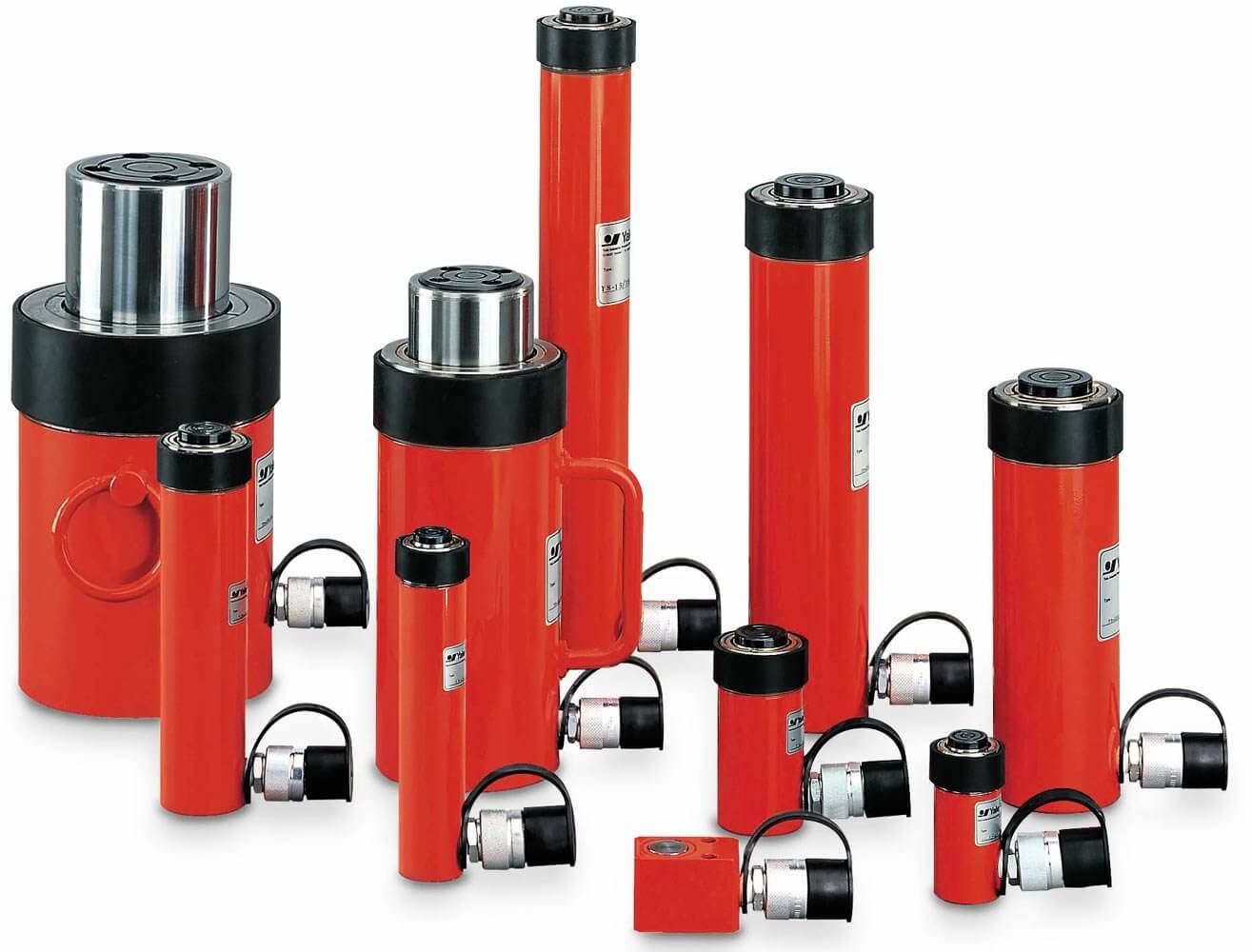

Yale Hydraulic Cylinder YS

Yale |
SKU: YS-5/25
€315.02incl. VAT

Incl. VAT. Shipping calculated at checkout.

  • Capacity 5-100 t. Single-acting with spring return and a max. operating pressure of 700 bar.
  • Yale ChroMo-Design. Cylinder body and piston of solid, heat-treated chromium-molybdenum steel; hard-chromium plated piston.
  • Tolerates eccentric loading. Long piston bearings and a stop ring that bears full capacity, fitted with a dirt wiper.
  • Easy to install. Metric mounting threads, replaceable hardened saddle, 3/8 NPT oil port and CFY-1 female coupler half.
  • Versatile use. Straightening steel constructions, removing shafts and axles, lifting, positioning, pressing and repair work.
View Full Description Technical Data
Cylinder Size (TON): 5
Stroke(mm): 25mm

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Please select country
Please enter correct zip code

shipping

Test heading

Yale Hydraulic Cylinder

Single-acting with spring return; Capacity 5 – 100 t

Robust construction with long guides allows the units to withstand abuse and better tolerate eccentric and side loading, yet is convenient to use with only one quick-release coupler hose connection and a spring return.

The hydraulic cylinders are designed for all jobs where high forces but compact dimensions are required and include saddle, mounting threads, and female coupler half.

Due to the various mounting threads, the cylinders can easily be installed in clamping devices, welding fixtures, frame presses etc.

User Manual

FEATURES

  • Applications include straightening steel constructions, removing parts like shafts, axles, lifting, positioning, weighing, supporting, testing as well as for all general assembly and repair applications.
  • Yale ChroMo-Design.
  • Operating pressure max. 700 bar.
  • Single-acting with spring return.
  • Robust design with long piston bearings to withstand eccentric loading.
  • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
  • Hard-chromium plated piston with a replaceable, heat-treated saddle.
  • Metric mounting threads on cylinder collar, in the base and piston rod (5 to 30 t).
  • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper.
  • Interchangeable hardened saddle.
  • Dirt wiper protects against contamination.
  • Oil port thread 3/8 NPT.
  • Incl. female coupler half model CFY-1.
  • Model YS-50/100 and YS-50/160 with carrying handle.
  • Models YS-50/320 up to YS-100/200 with lifting rings.

SPECIFICATIONS

Model Cylinder Size (t) Capacity (kN) Stroke (mm) Oil Volume Max. (cm³) Closed Height (mm) Weight (kg)
YS-5/25 5 50 25 18 97 1
YS-5/75 5 50 75 53 157 1.5
YS-5/127 5 50 127 90 214 2
YS-5/180 5 50 180 127 267 2.4
YS-10/25 10 100 25 37 90 1.6
YS-10/50 10 100 50 73 125 2.1
YS-10/100 10 100 100 146 178 2.8
YS-10/150 10 100 150 218 250 4.1
YS-10/200 10 100 200 291 300 4.7
YS-10/250 10 100 250 363 352 5.5
YS-10/300 10 100 300 436 407 6.3
YS-15/25 15 150 25 53 110 2.7
YS-15/50 15 150 50 106 140 3.3
YS-15/100 15 150 100 213 190 4.3
YS-15/150 15 150 150 319 260 5.8
YS-15/200 15 150 200 425 310 7
YS-15/250 15 150 250 531 365 8
YS-15/300 15 150 300 637 420 9
YS-15/350 15 150 350 744 472 10
YS-23/25 23 230 25 83 116 5
YS-23/50 23 230 50 166 150 6
YS-23/100 23 230 100 332 202 7.5
YS-23/160 23 230 160 531 277 10
YS-23/210 23 230 210 697 330 12
YS-23/250 23 230 250 830 376 13.5
YS-23/300 23 230 300 996 428 15
YS-23/345 23 230 345 1145 477 16.5
YS-30/125 30 300 125 552 245 13
YS-30/200 30 300 200 884 325 17
YS-50/50 50 500 50 355 170 15
YS-50/100 50 500 100 709 220 19
YS-50/160 50 500 160 1135 285 24
YS-50/320 50 500 320 2269 460 37
YS-70/150 70 700 150 1478 285 32
YS-70/330 70 700 330 3252 490 52
YS-100/100 100 1000 100 1432 275 43
YS-100/200 100 1000 200 2863 375 64

4.58 ★ (198)
