Yale Hydraulic Cylinder Accessories
Incl. VAT. Shipping calculated at checkout.
- Lifting claws. Screwed onto the collar thread of YS cylinders for 5, 8 or 12 t, the cylinder force is reduced by 50 %.
- Piston plates. Screw into the piston thread to reduce surface pressure and stop the piston sinking into the ground.
- Base adaptors. Bolt onto the cylinder base with the supplied screws and carry the matching AYS extension tubes.
- Load-spreading plates. Steel plates with carrying handle for 10, 15 or 23 t that keep slim cylinders from tipping or sinking.
- Clevis eye mountings. AYH-5-1, AYH-10-1 and AYH-20-1 screw onto the base of YH cylinders where the cylinder has to pivot.
Accepted payment methods
shipping

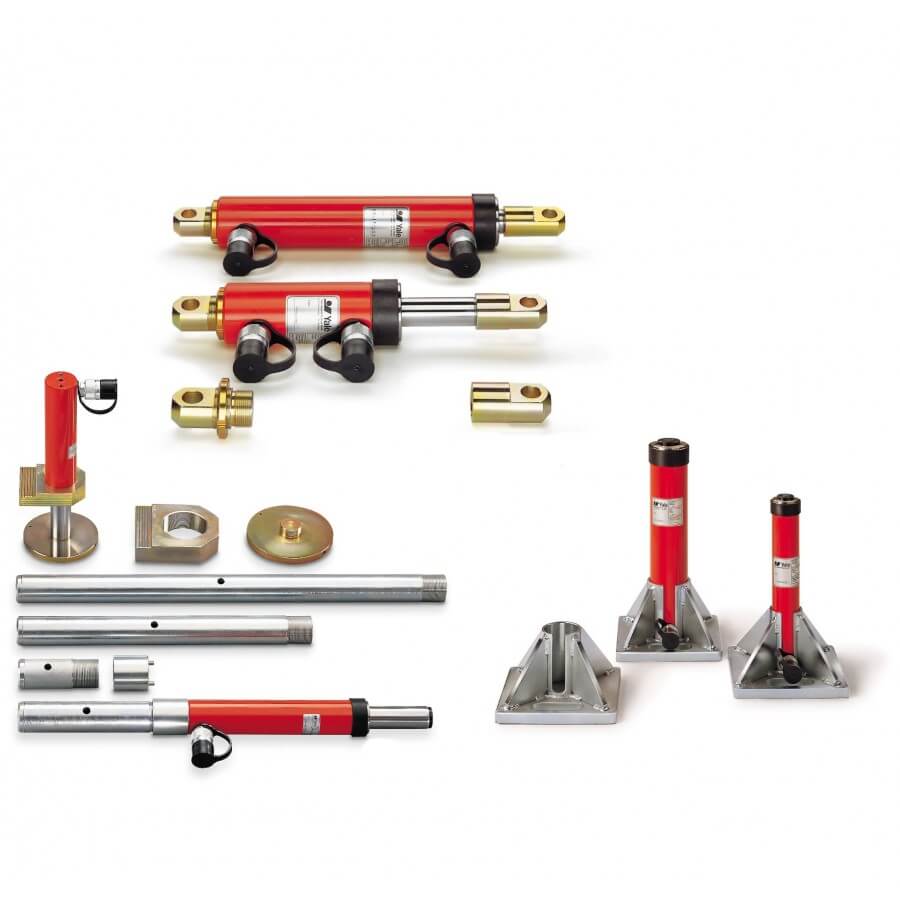

Yale Hydraulic Cylinder Accessories
Lifting claws
In conjunction with the corresponding hydraulic cylinder, a lifting claw represents a compact, lightweight, and versatile lifting unit. The claws are screwed onto the collar thread of the YS cylinder series and can be placed under loads with minimum clearance. The cylinder must be able to support itself against the load, and its max. force is reduced by 50 %.
Piston plates
Can be screwed into the piston thread of the YS cylinders. They reduce surface pressure and prevent the pistons from sinking into the ground.
Base adaptors
Base adaptors are mounted onto the bottom of the YS cylinders with two hexagon socket screws (screws included) and carry the matching extension tubes, which add to the versatility of the standard cylinders.
Load-spreading plates
Recommended when slim cylinders are used for lifting: they spread the load and protect the cylinders from tipping over or sinking into the ground. Robust steel design with carrying handle.
Clevis eye mountings
Screwed onto the piston and bottom of the hydraulic cylinder, in those cases where mounting conditions require pivoting of the cylinder.
| Reference | Description | Suitable for cylinder | Weight (kg) |
|---|---|---|---|
| AYS-10 | Lifting claw, permissible capacity 5 t | YS-10/... | 0.9 |
| AYS-15 | Lifting claw, permissible capacity 8 t | YS-15/... | 1.3 |
| AYS-23 | Lifting claw, permissible capacity 12 t | YS-23/... | 3.8 |
| AYS-53 | Base adaptor, 5 t | YS-5/... | 0.5 |
| AYS-103 | Base adaptor, 10 t | YS-10/... | 0.7 |
| AYS-153 | Base adaptor, 15 t | YS-15/... | 0.9 |
| AYS-102 | Piston plate, round | YS-10/... | 1.5 |
| AYS-152 | Piston plate, round | YS-15/... | 1.8 |
| AYS-232 | Piston plate, round | YS-23/... | 2.2 |
| AYS-101 | Load-spreading plate 10 t | YS-10/... | 10.5 |
| AYS-151 | Load-spreading plate 15 t | YS-15/... | 10.5 |
| AYS-231 | Load-spreading plate 23 t | YS-23/... | 10.5 |
| AYH-5-1 | Clevis eye mounting, cylinder base | YH-5/30, YH-5/80, YH-5/150 | 0.3 |
| AYH-10-1 | Clevis eye mounting, cylinder base | YH-10/30, YH-10/80, YH-10/150, YH-10/250 | 0.6 |
| AYH-20-1 | Clevis eye mounting, cylinder base | YH-20/150, YH-20/250 | 2.1 |
