Pfaff Hydraulic Bottle Jack
What is a hydraulic bottle jack ?
A jack, screwjack or jackscrew is a compact and inexpensive mechanical device used to lift heavy loads effortlessly.
A hydraulic bottle jack with a manual pump to lift heavy objects, such as cars, by converting small force applied to a small area to large force because of a large area of the piston.

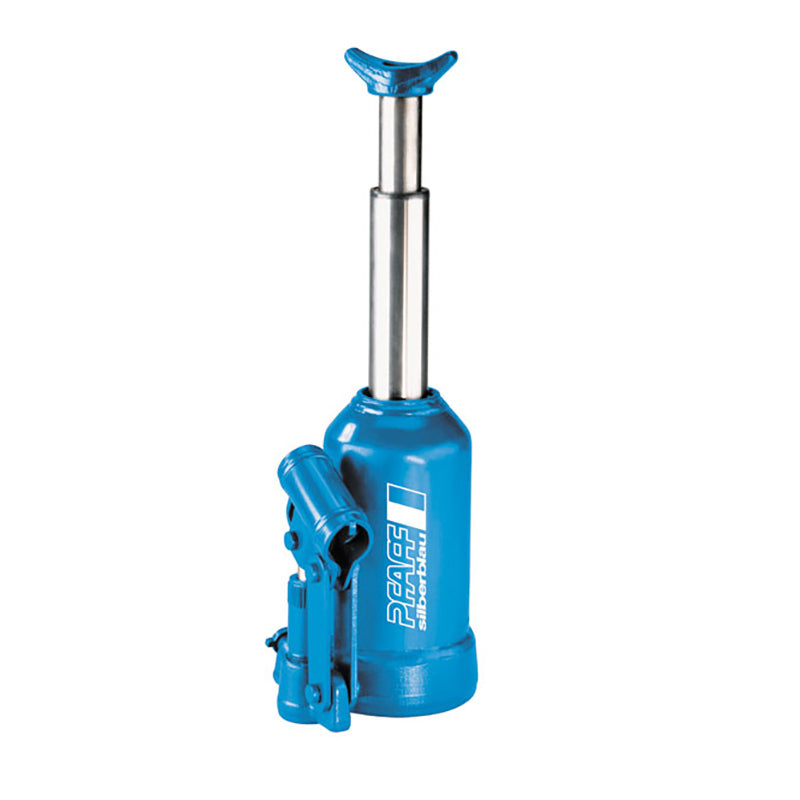

Hydraulic bottle jack - Pfaff
Pfaff Hydraulic Bottle Jack can lift loads from 3 t up to 30 t and is designed lift vehicles on one side (the lifted load must be secured mechanically with supporting stands, for example). This car jack range comes in 3 models:
- With 2 pistons (HWH 2K PROLINE)
- With 2 pistons and spindle (HWH 2KS PROLINE)
- With piston and spindle (HWH KS PROLINE)
They all promise a modern and high-performance system due to its versatility and flexibility. They also ensure that a multitude of applications in workshops is significantly simplified. For any inquiries, please contact us via chat.
Hydraulic Bottle Jack Specifications
Features & Benefits:
- Versions with hydraulic piston and mechanical spindle drive or with 2 hydraulic pistons.
- With carrying bracket from load capacity 20 t.
- Extremely low design with model HWH 2K/D (incl. 1 pressure section for lift extension).
- With integrated pressure control valve for a longer service life of the jack.
- Integrated seat valve for the controlled lowering of the load.
How to use a hydraulic bottle jack ?
- Park your vehicle properly: To ensure the handbrake is on and chocks are placed securely under the wheels to prevent the vehicle from moving.
- Put your bottle jack under the car and locate the lifting point: Refer to the vehicle user manual for the correct lifting point. Note- ensure the ground is flat and sturdy.
- Close release valve as tightly as possible.
- Place the handle into the socket.
- Pump to raise the saddle to contact with the lifting point of the vehicle. Continue pumping to raise vehicle to desired height.
- Secure the lifted load immediately onto the correct capacity axle stands.
- Safe to work on your vehicle now
-
Release the pressure: By turning the valve to another direction slowly to lower the jack with the aid an handle.
