Gebuwin Swivel Davit Crane

Product No. 77001890GR

Regular price €1,281.01 excl. €294.63 VAT €1,575.64 incl. €294.63 VAT
Unit price  per
CAPACITY (KG)
FINISH
SOCKET? (ELECTRO-ZINC PLATED AS STANDARD)
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

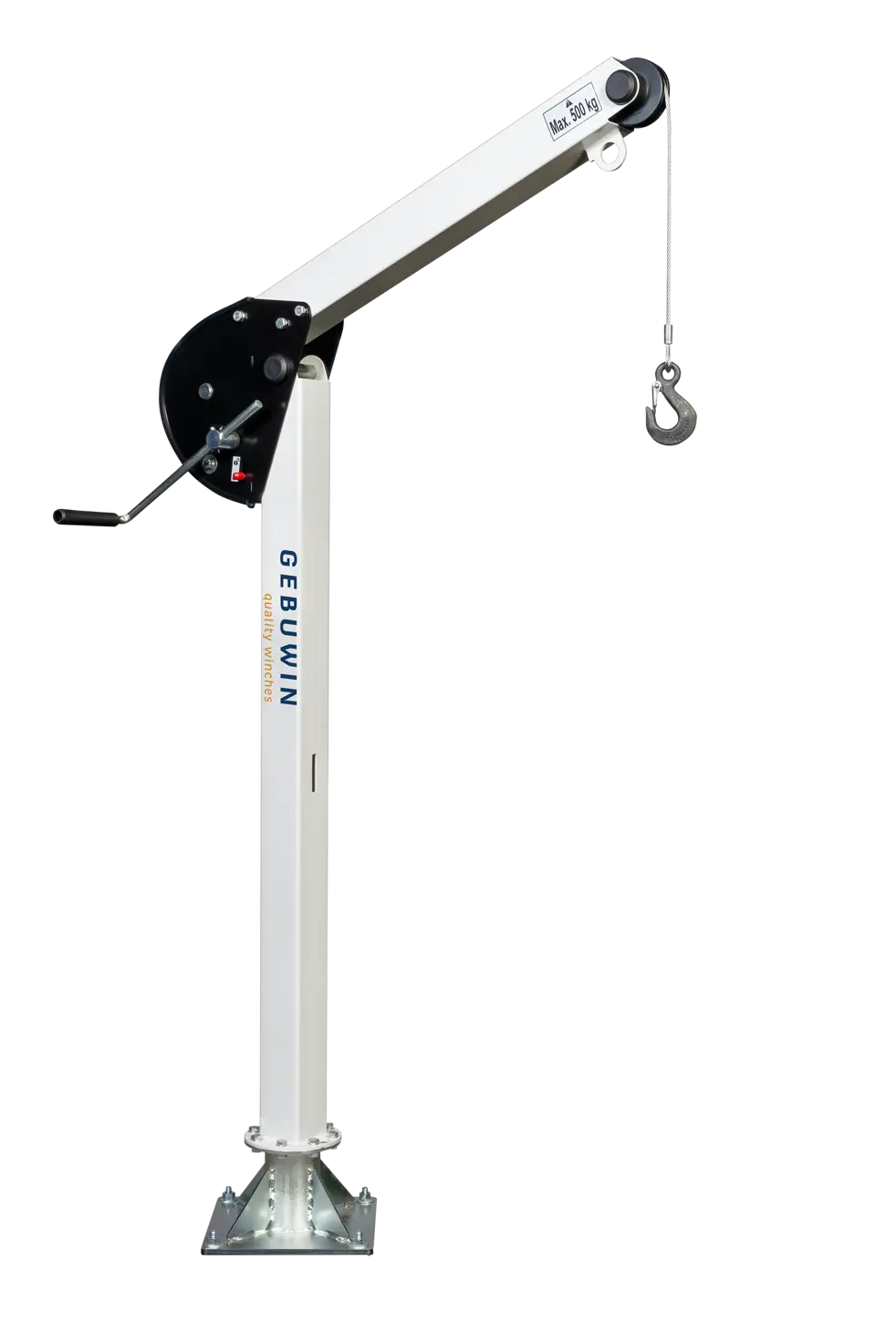

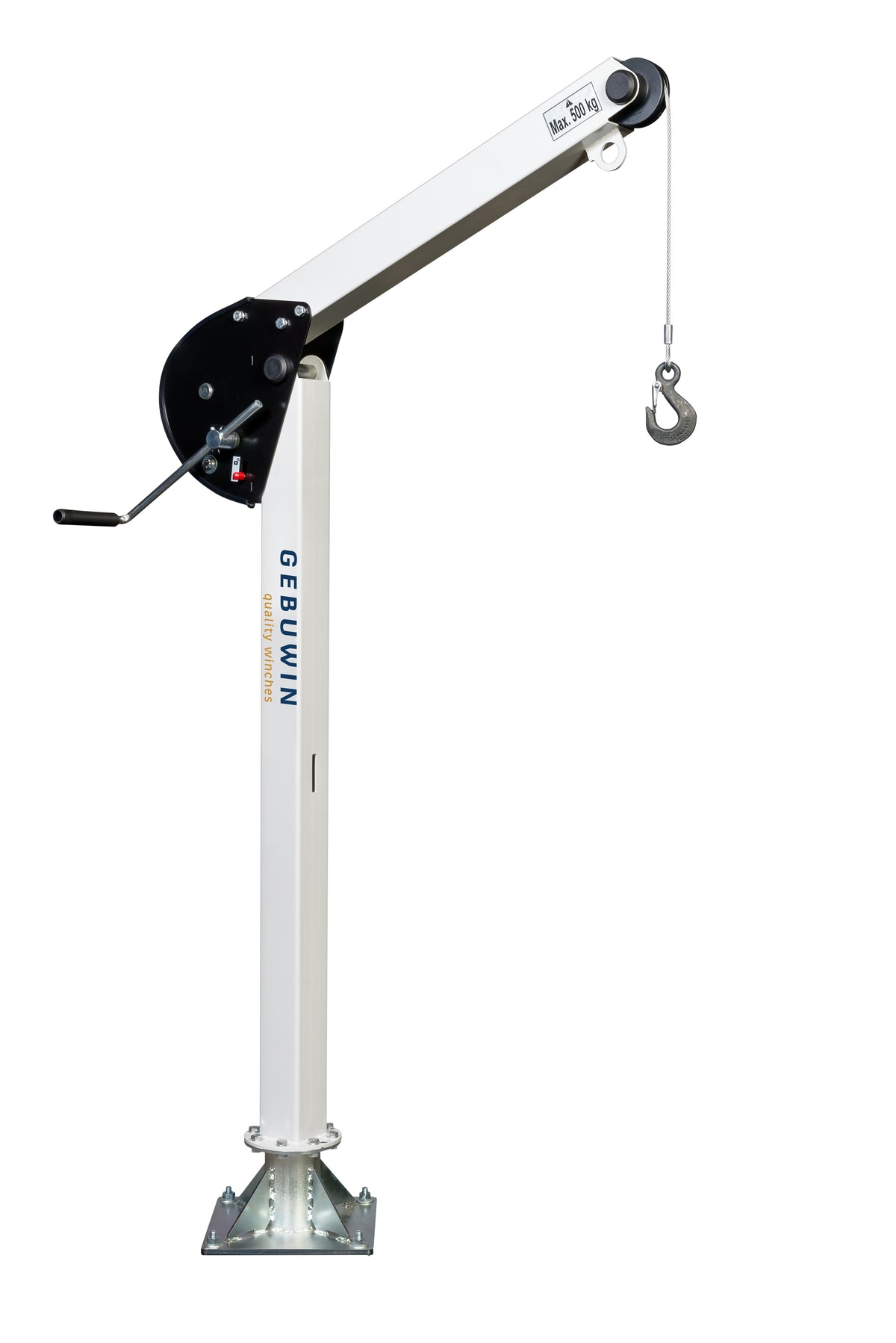

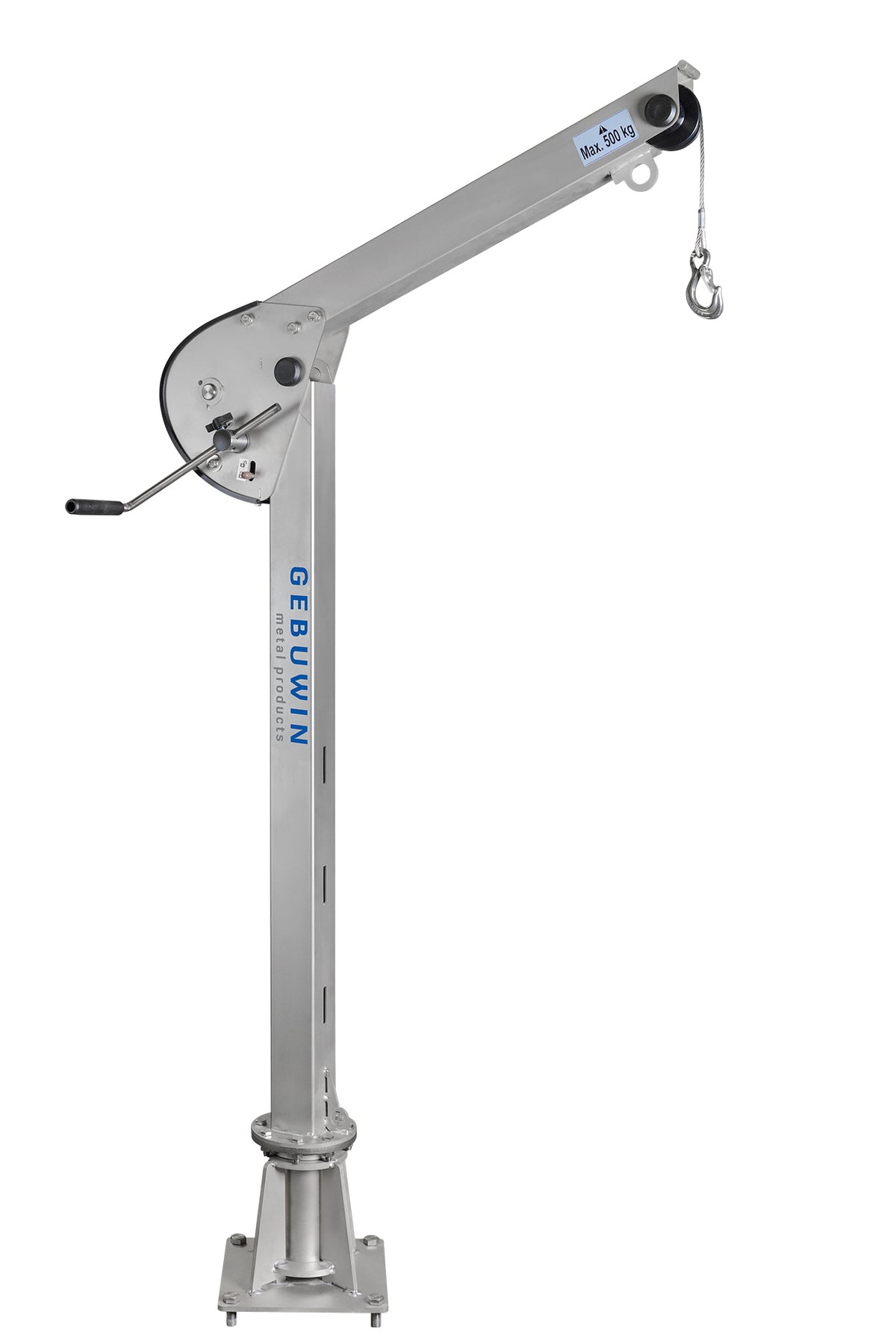

Gebuwin Swivel Davit Crane

Product information

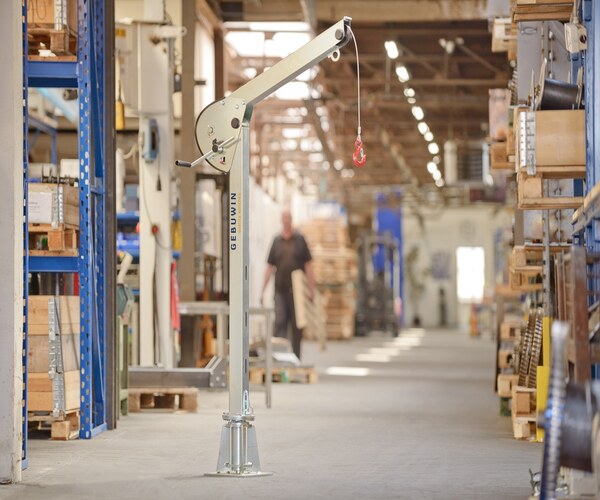

Gebuwin has developed this modern designed folding swivel davit in stainless steel 316 especially for lifting goods on location. This davit crane helps you carry out your work efficiently without the risk of physical strain. Gebuwin produces three types of lifting davits, which vary in lifting capacity and length of the boom. Because of the integrated winch and cable, the davit crane is not only compact but also low-maintenance. The crank is also adjustable in length, so that the lifting speed can be adjusted. It is a very good solution to lift or lower a load in a very user-friendly way.

The fact that the davit crane is made of stainless steel 316, means that the crane is now also making inroads into the “recreational” shipbuilding industry. It is an ideal tool to lower small boats and jet skis into the water.  So it is not only for industrial use, but it is certainly also suitable for locations close to seawater.

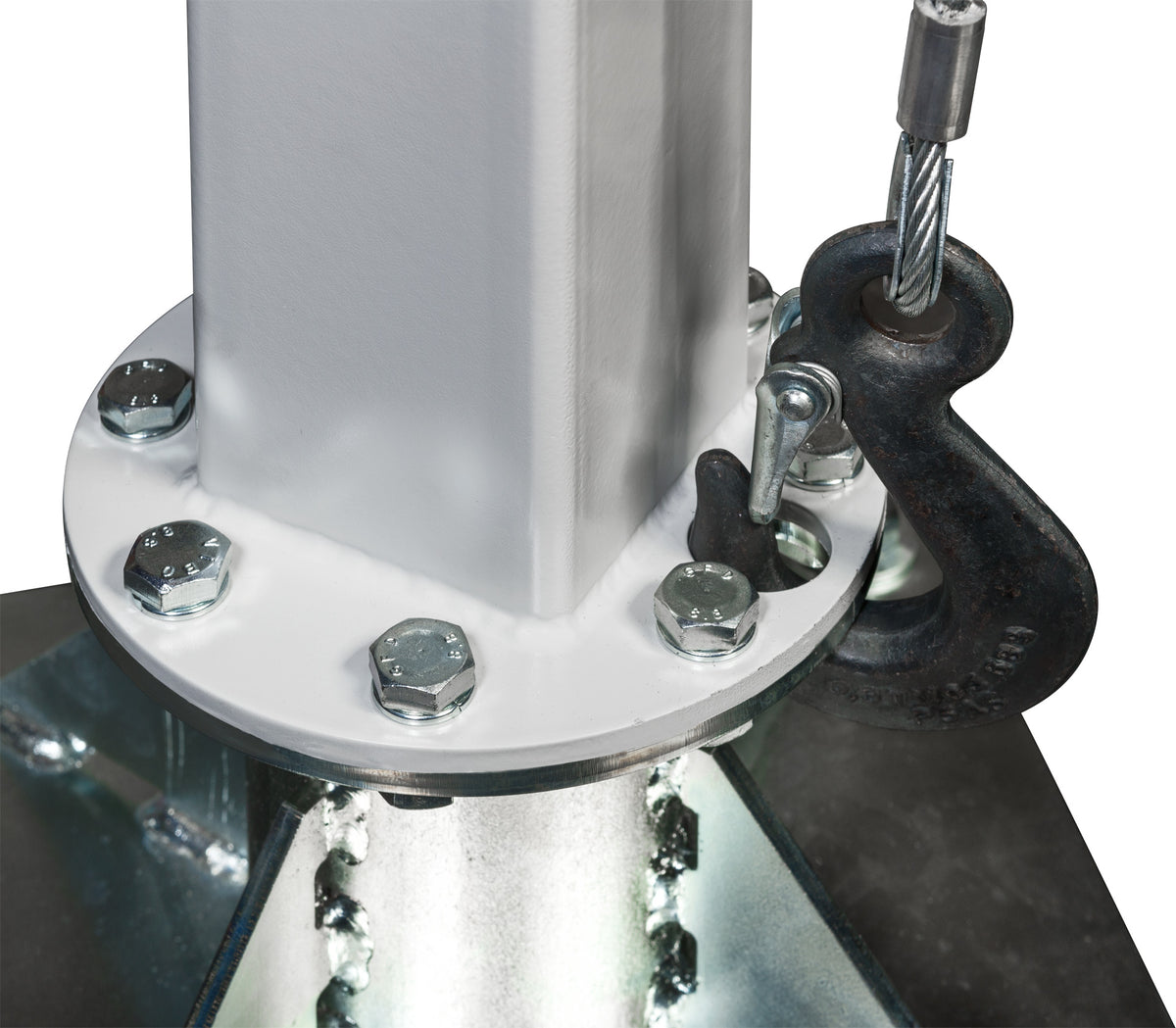

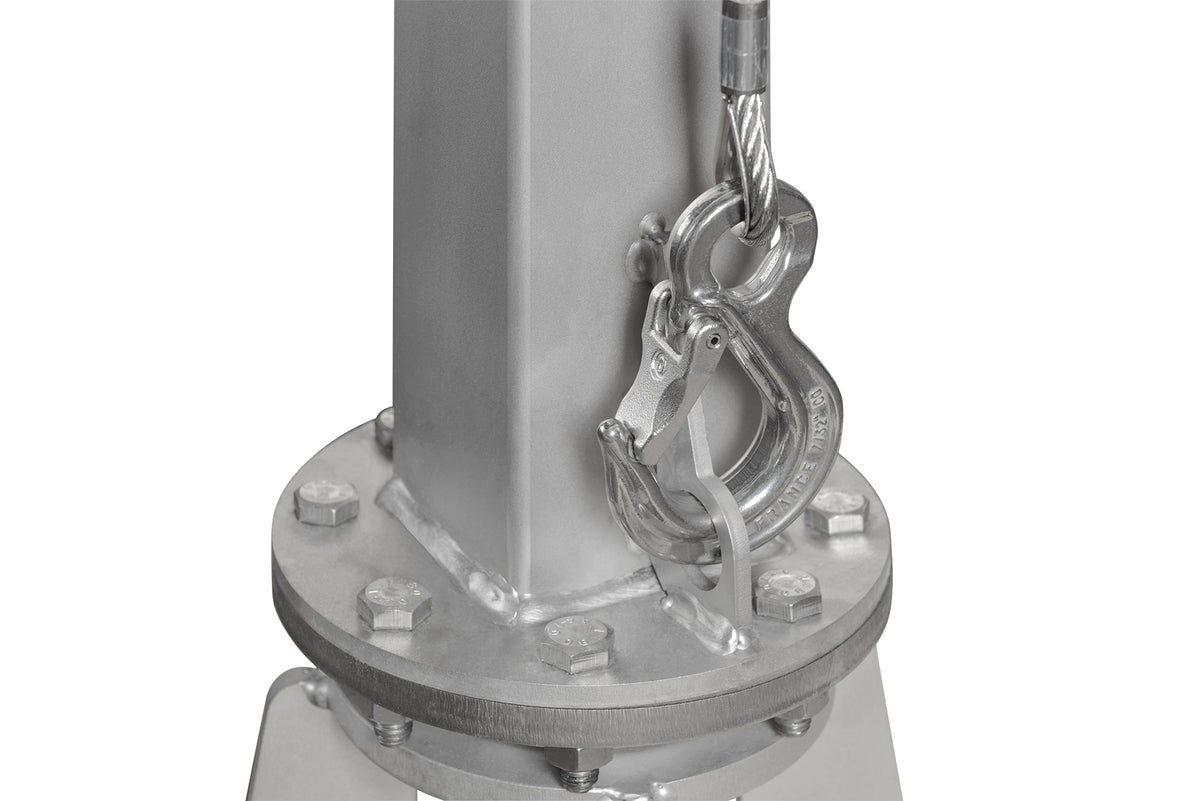

You can order a stainless steel floor, wall or built in concrete socket from MTN Shop here.

Specifications

  • robust and safe lifting davit crane in compliance with EN13157

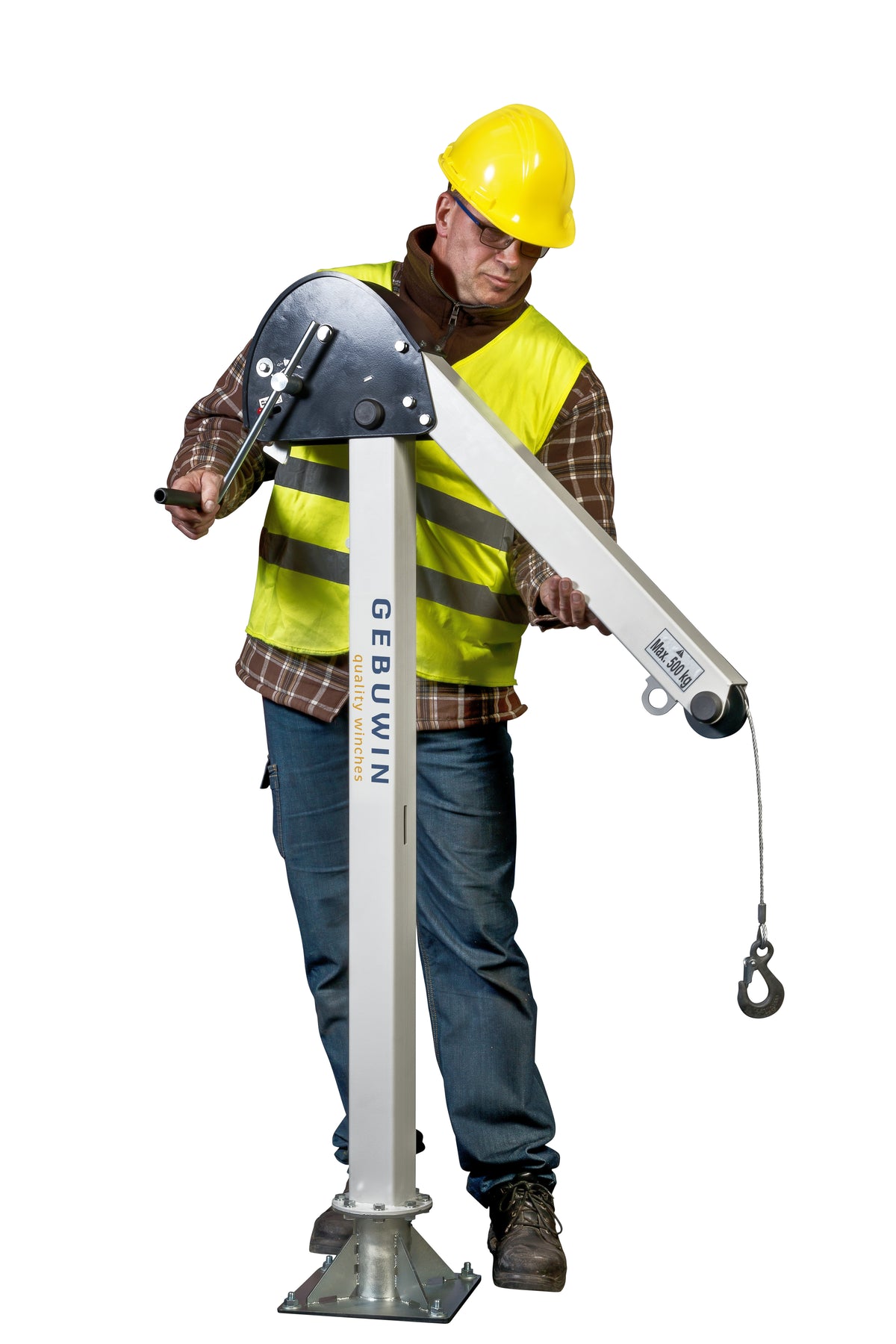

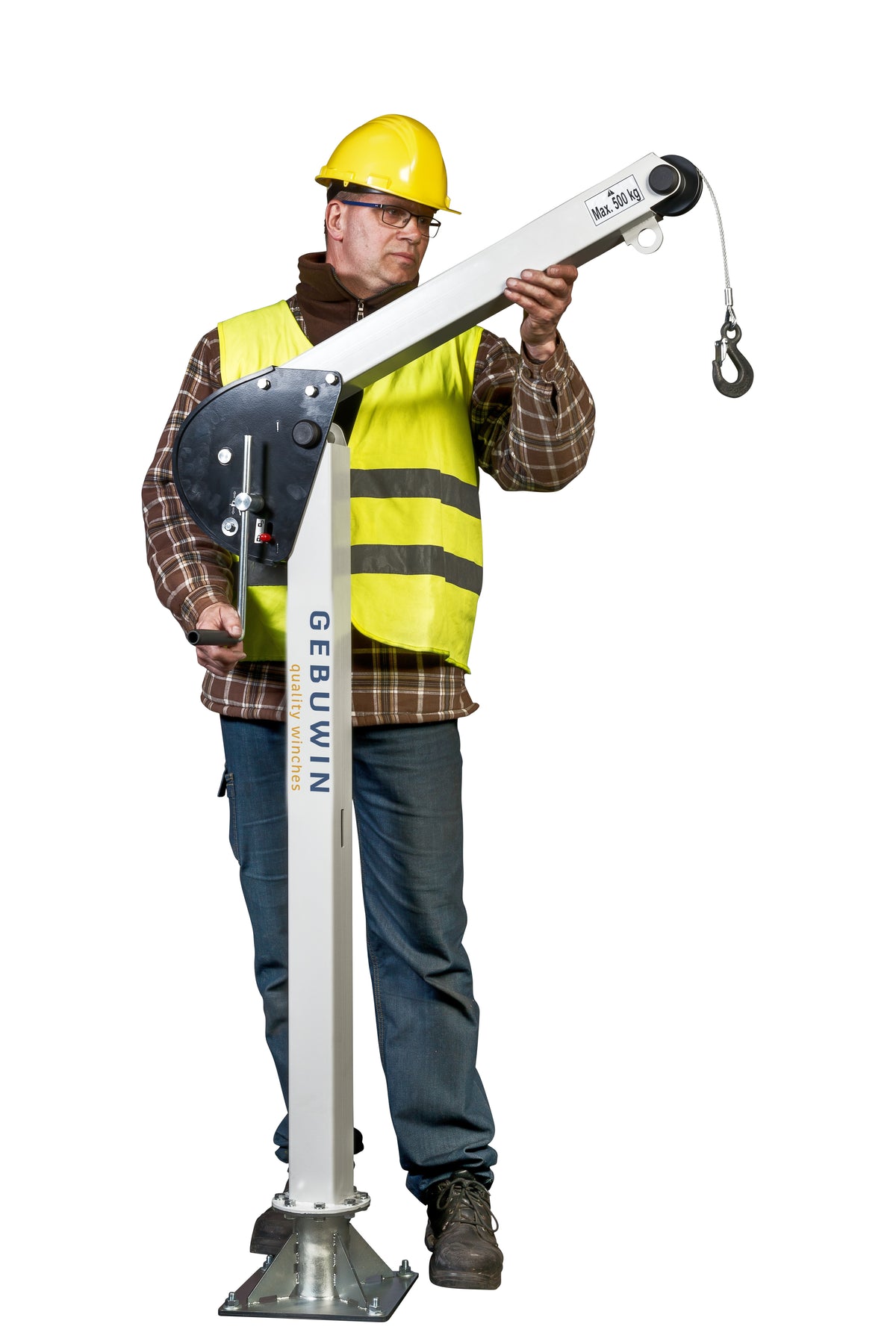

  • ready to use in 5 seconds
  • integrated winch and cable in an ergonomic modern design

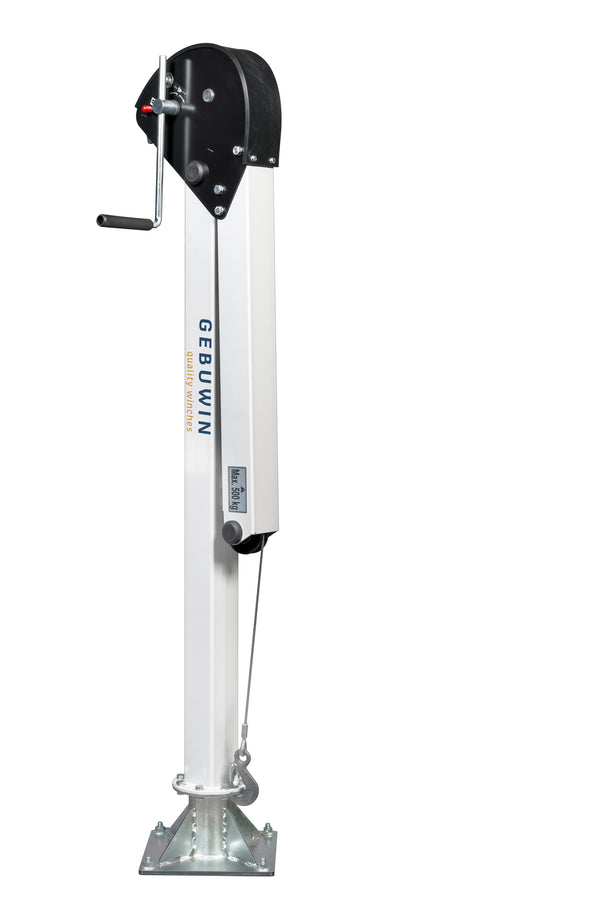

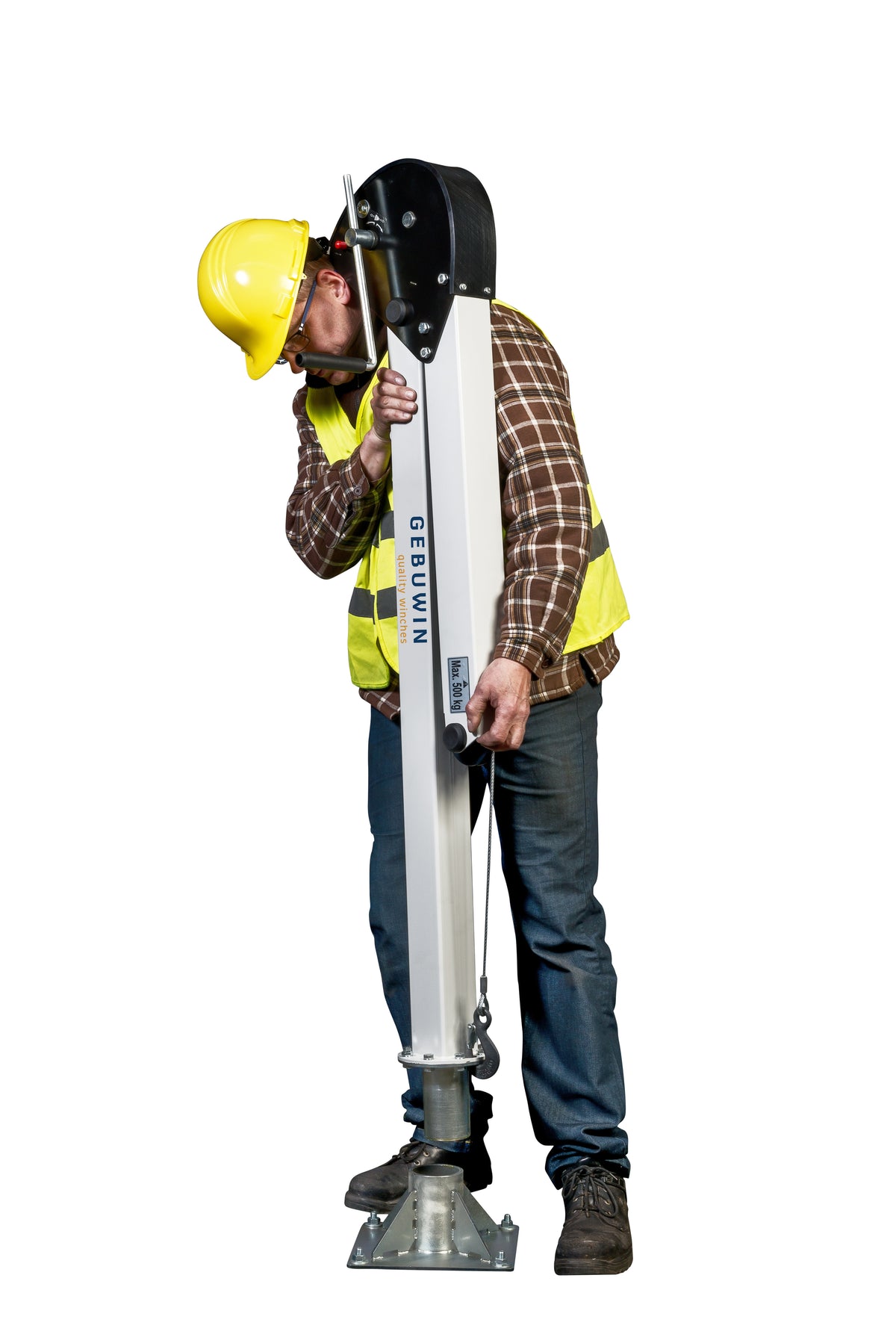

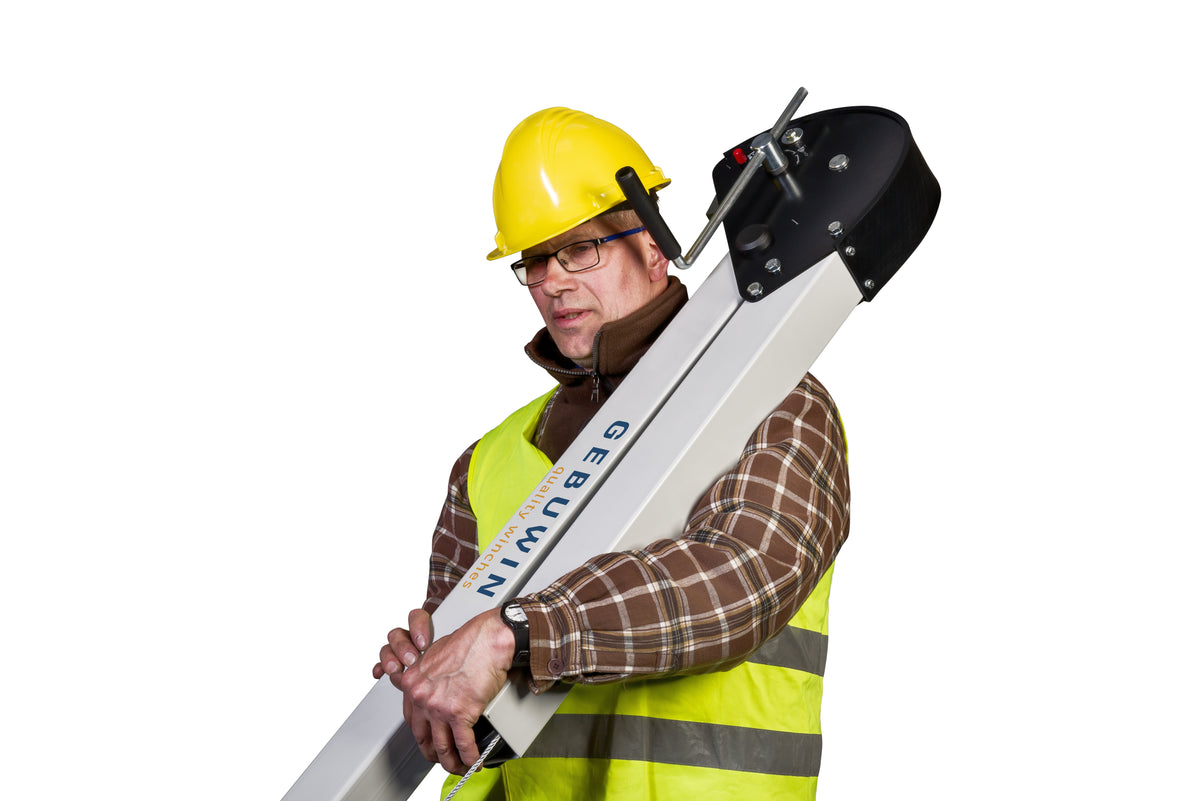

  • easy to transport

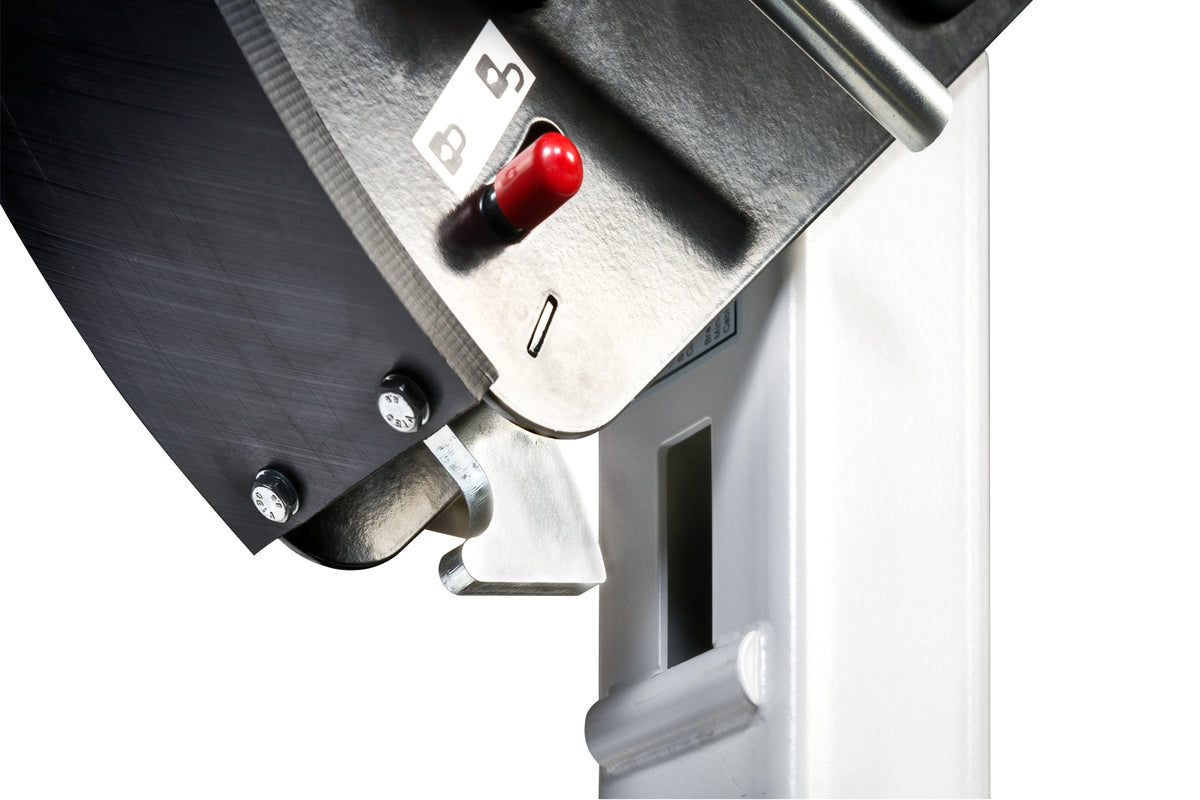

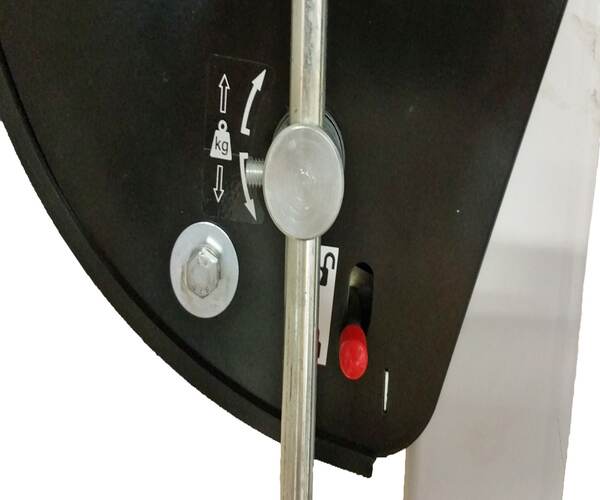

  • load pressure brake with double ratchet system for safe stable hold of the load in any position
  • possible to rotate 360° due to the use of ball bearings
  • adjustable crank

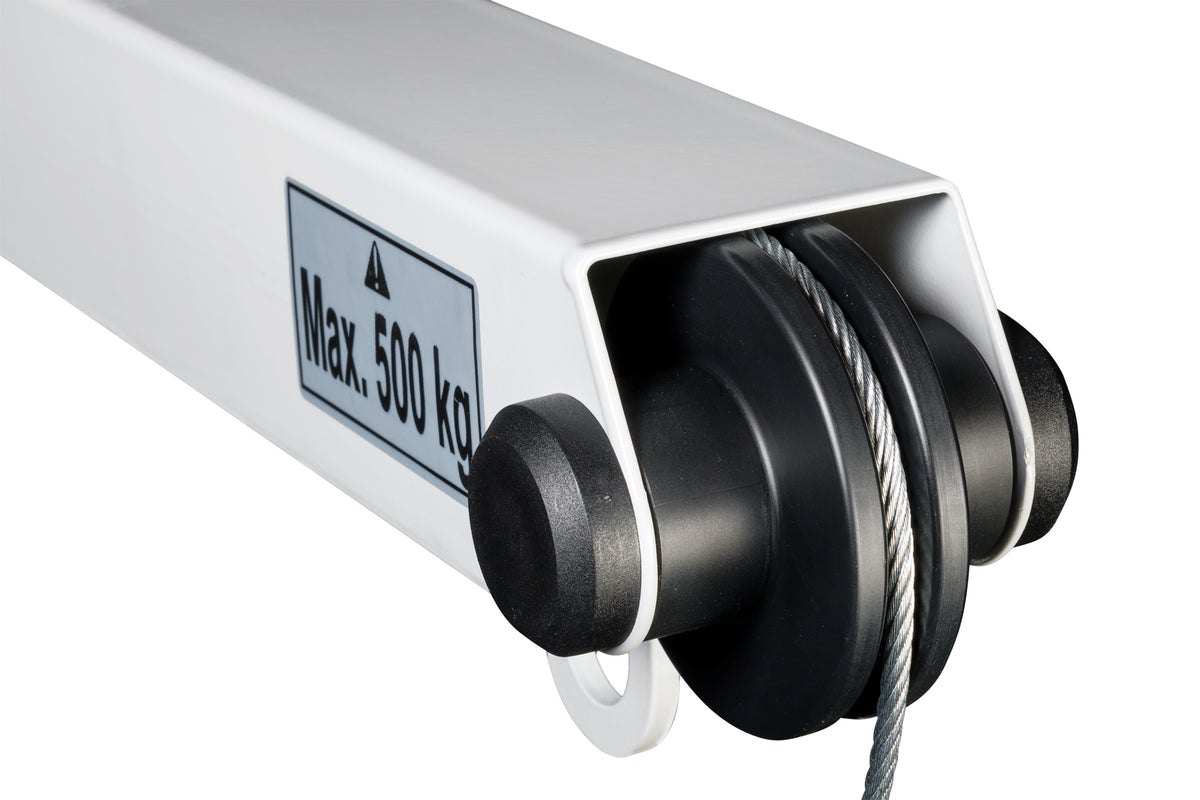

  • including 13 meter stainless steel wire rope (d5 mm) with hook
  • stainless steel grade 316 body
  • corrosion resistant
SKU



Model Reach Capacity
77001890 SD125 100 cm 125 kg
77001870 SD250 80 cm 250 kg
77001850 SD500 60 cm 500 kg
