Gebuwin Marine Worm Gear Hand Winch

Product No. 77277080+2D+EX

Regular price €5,071.00 excl. €1,166.33 VAT €6,237.33 incl. €1,166.33 VAT
Unit price  per
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
Product details

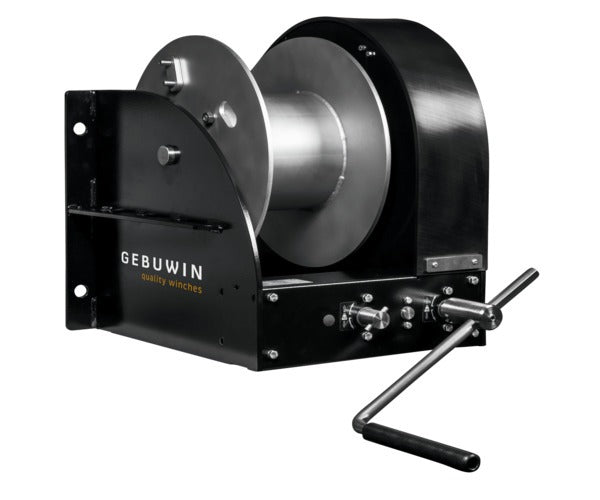

Marine Worm Gear Hand Winch


Product information

The name of this winch implies that it belongs to the robust winches which are often used in the environment of salt water, such as the marine and offshore industry. With its IP54 rating, this marine winch is resistant to splash water and dust on the inside. The winch has three layers of paint in accordance with the C5M offshore coating standard, which means that the winch is equipped with extra layers of paint which ensures a high corrosion resistance level. In addition the coating, the marine winch has a drum and crank made out of 316 stainless steel.


  • winch suitable for lifting and pulling in compliance with EN13157
  • static safety factor 4
  • load pressure brake with double ratchet system for safe stable hold of the load in any position
  • closed gearbox to protect against environmental influence – protection classification IP54
  • cable outlet upwards, downwards or at rear
  • adjustable crank
  • suitable for wall and floor mounting
  • brushed steel frame with marine coating DIN/ISO 12944 C5M – RAL9005 (black)
  • paint thickness is 240 micron in 3 layers
  • stainless steel 316 parts: drum, crank and all outgoing shafts, bolts and nuts
  • corrosion resistant

Available options (Please request a quote if your option is not available to add to the cart)

  • 2 drum compartment
  • ATEX certified
  • Grooved drum
  • Floor mounting

    Technical specifications

    Marine Worm Gear Hand Winch Product Sheet
