Gebuwin Swivel Davit Crane SD900

Gebuwin Swivel Davit Crane SD900

Built for Versatility and Power

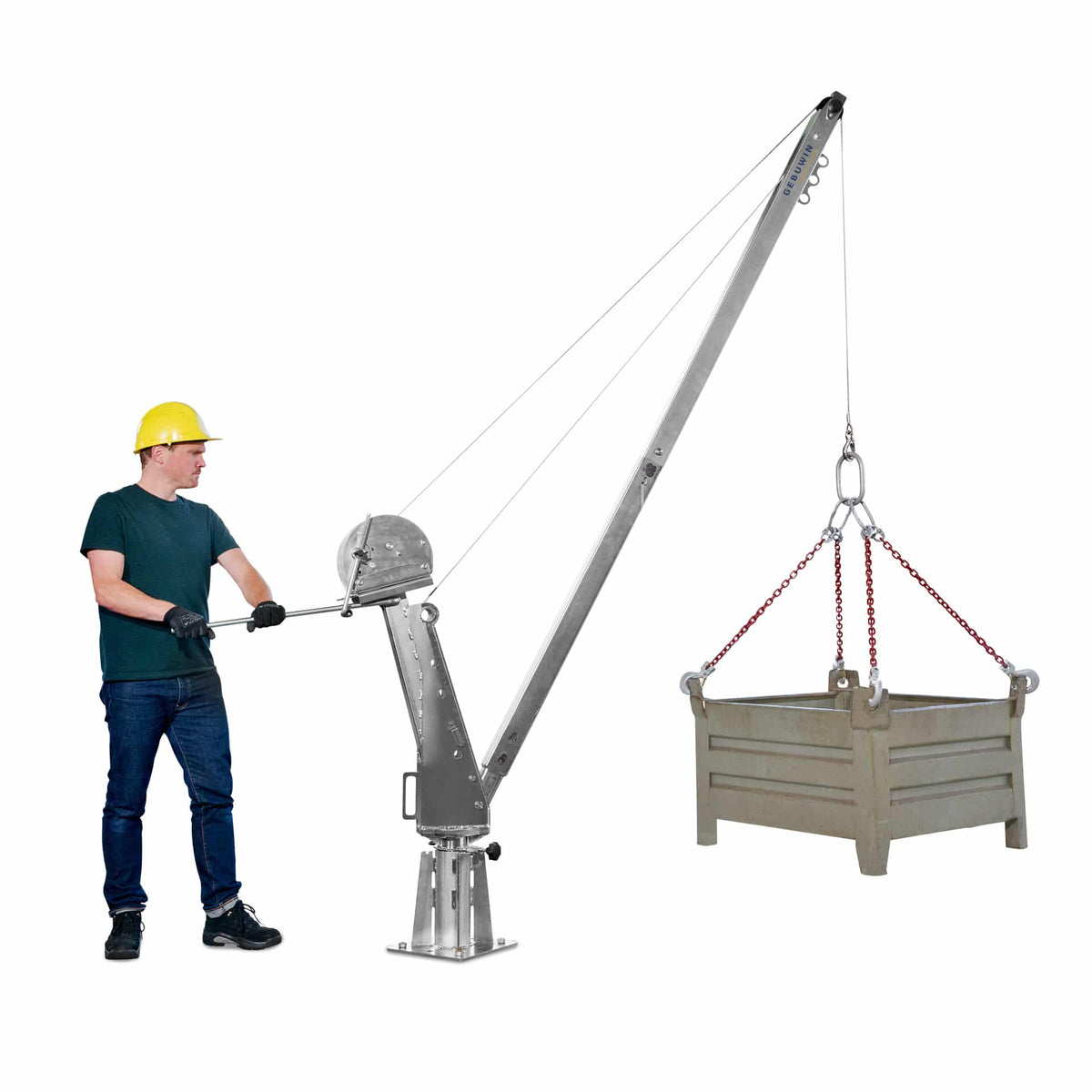

Discover the versatility of our davit crane! With three adjustable positions, this crane effortlessly adapts to your lifting needs. The Swivel Davit Crane SD900 offers an impressive reach of up to 2 meters, designed to handle heavy-duty lifting tasks with ease. Depending on the position, the lifting capacity varies; up to 900 kg at 1 meter, 800 kg at 1,5 meters and 600 kg at 2 meters.

Thanks to the 360 degree rotation function, you can easily reach the desired position. When in position you can lock the swivel motion for controlled lifting and lowering. The standard galvanized finish ensures durability, while you can attach various winches or even a chain hoist to the davit. Ideal for any project where strength and flexibility come together!

Key Features

• Adjustable Reach Options: Choose between 1 meter, 1.5 meters, and 2 meters to suit your lifting requirements.
• Load Capacities:
  • 2-meter reach: 600 kg
  • 1.5-meter reach: 800 kg
  • 1-meter reach: 900 kg

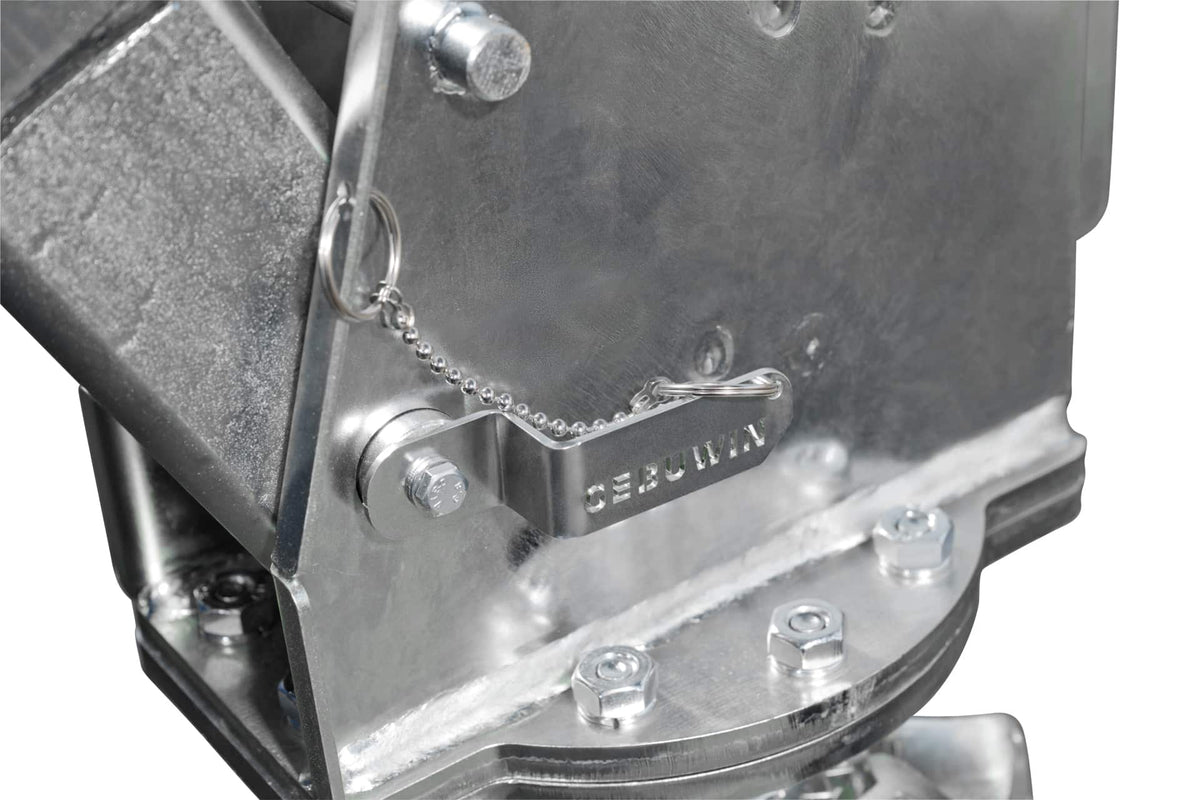

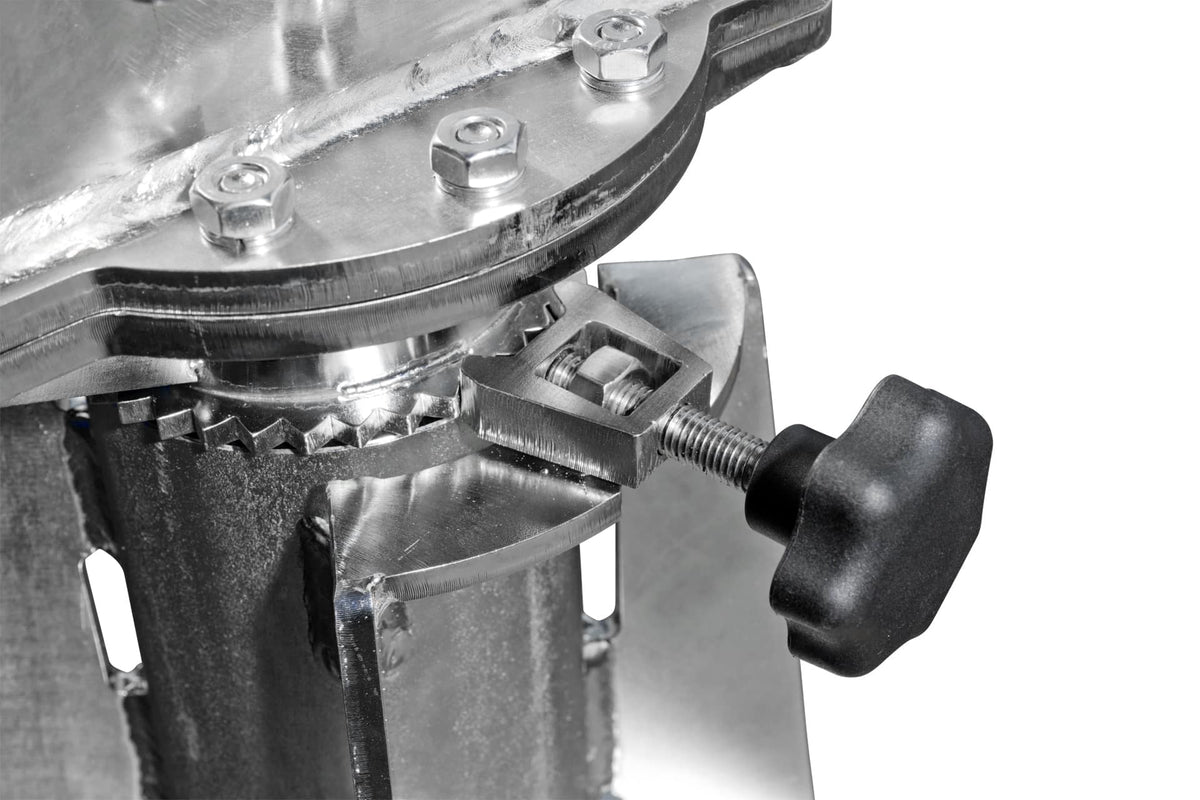

• Swivel Motion Lock: Lock the swivel function as needed for secure and controlled operation.

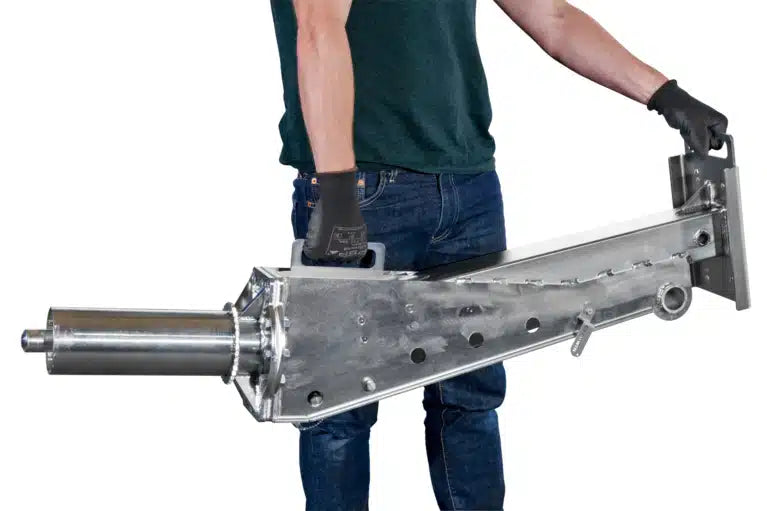

• Quick Assembly: Consisting of only 4 parts, the crane can be installed quickly and easily.

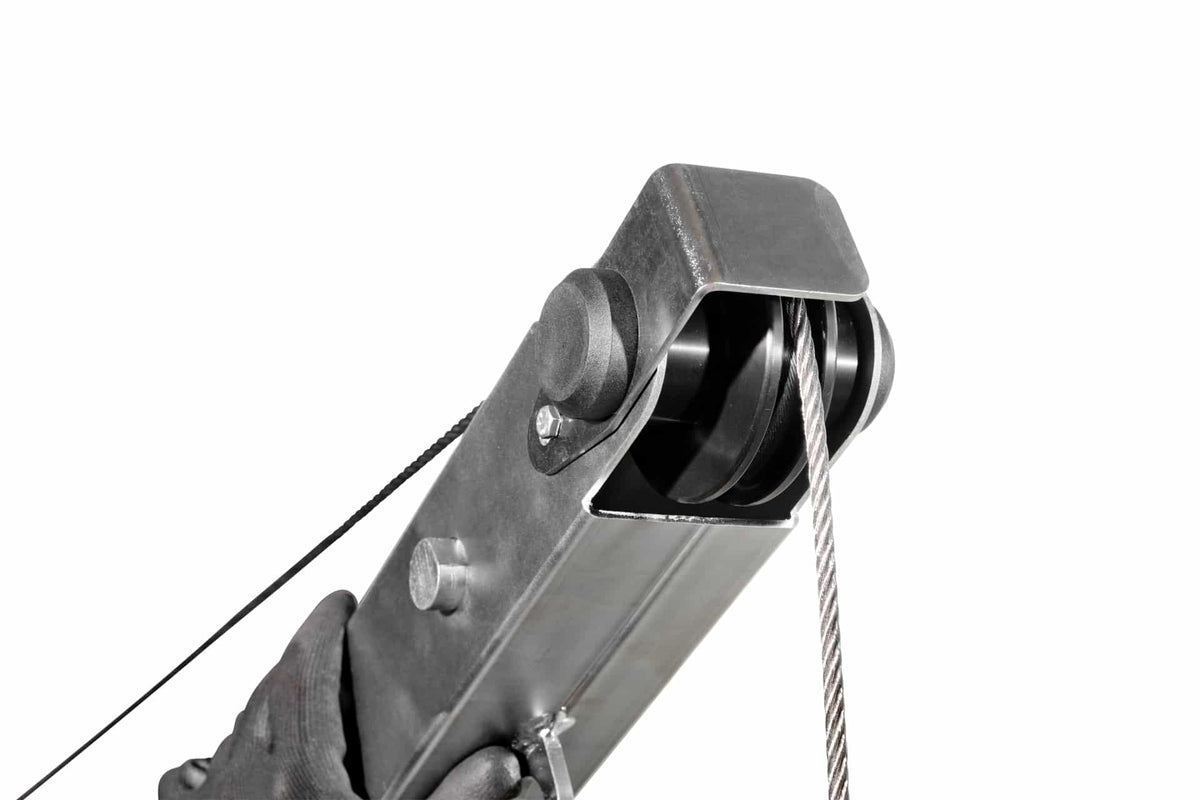

• Full 360° Rotation: Rotate the arm or belt at the end of the boom for complete maneuverability.
• Standard zinc plated finish.

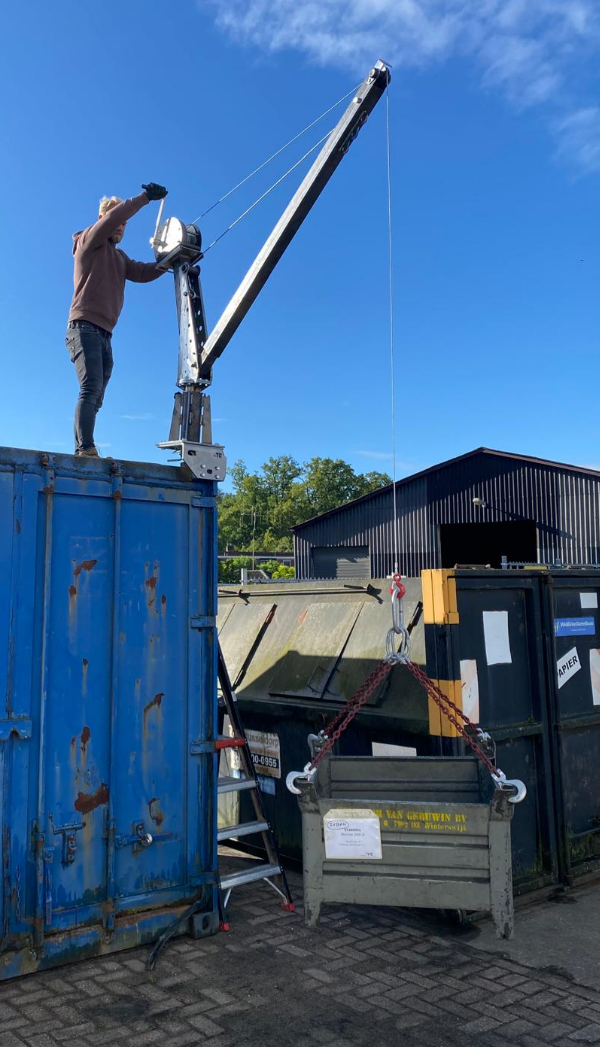

View Gebuwin Swivel Davit Crane SD900 In Action

Technical specifications

Downloads

Swivel Davit Crane SD900 Product Sheet
